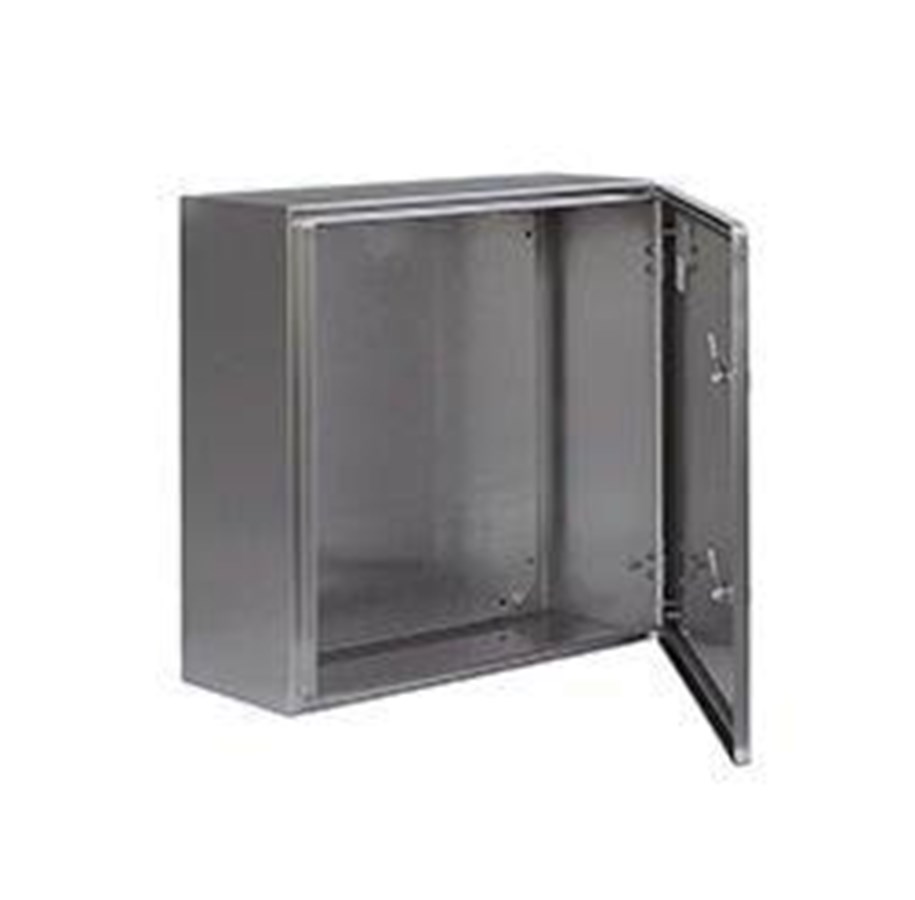

ELDON Wall mounted 500x500x210

Wall cabinet 500x500x210 ASR0505021 Product description: Description: RFt wall cabinet 500x500x210 Material: AISI 304 brushed stainless steel. Cabinet: 1mm/1.5mm ASR0505021 and larger Door: 1.5mm/2mm ASR1008030 and larger, Mounting plate: 2mm galvanized Frame: Folded and fully welded. Door opening angle of 130°. Pre-brushed AISI304. Hinges with removable split pin for right or left opening doors. Polyurethane gasket in one piece on the inside of the door with four welded threaded studs for mounting accessories.Locks : Chrome-plated DIN lock with a movement of up to 90° with anti-vibration mechanism made from stainless steel, other versions available as accessories.Mounting plate : Welded onto M8 screws on the back of the cabinet.In cabinets over a height of 800 mm, all four sides have an additional fold for extra stability.When using AMG accessories, mounting plates can be adjusted in depth.Cable entry : No flange openings as standard to maximize sealing and clean lines.Degree of protection : In accordance with IP66 and NEMA4X,12,and13.IK10.Surface treatment : Brushed (average value Ra<0,5 µm)Delivery includes mounting plate complete with assembly hardware and earthing connection.Packaged in recyclable packaging.Additional information : Use temperature regulation , ventilation ,and rain hood recommended for demanding outdoor applications.Please refer to general accessory section & technical chapter for further information.Technical specifications.Color Stainless SteelWidth [in]19-11/16Height [in]19-11/16Depth [in]8-17/64
