ELDON Wall mounted 600x400x210

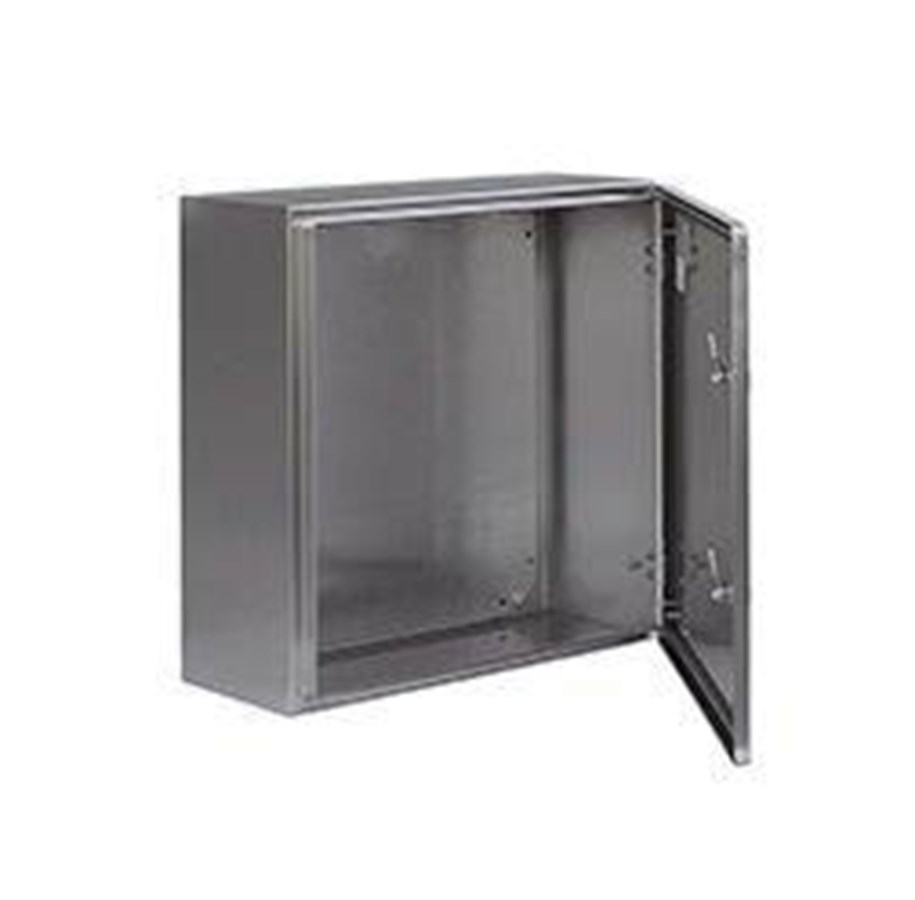

Wall cabinet 600x400x210 ASR0604021 Product description: Description: RFt wall cabinet 600x400x210 Material: AISI 304 brushed stainless steel. Cabinet: 1mm/1.5mm ASR0505021 and larger Door: 1.5mm/2mm ASR1008030 and larger, Mounting plate: 2mm galvanized Frame: Edge-folded and fully welded. Door: 130° opening angle. Pre-brushed AISI304. Hinges with removable split pin. Right or left-hand opening option available. Polyurethane gasket in one piece on the door frame for a perfect seal against dust and water ingress, IP66 rated protection class according to EN60529 standard, NEMA4X,12 &13 rating according to UL50E standard Impact resistance IK10 Locks : Chrome plated DIN lock with a movement of up to 90° with anti-vibration mechanism made of stainless steel or other versions can be supplied as accessories Mounting plate : Fixed on M8 screws welded on the back of the cabinet In cabinets with height over 800 mm mounting plate has an edge fold all around for extra stability When using AMG accessories mounting plate can be adjusted in depth Cable entry : No flange openings as standard to maximize sealing and clean lines Surface treatment : Brushed finish (240s average grain size <0,5 micron) Delivery includes : Mounting Plate complete with mounting hardware & earthing connection Terminal block not included Additional information Use of temperature control , ventilation , rainhood is recommended under demanding outdoor conditions Please refer to general accessory section & technical chapter for further information Technical specifications Color Stainless Steel Width (W) mm400 Height (H) mm600 Depth (D) mm210
