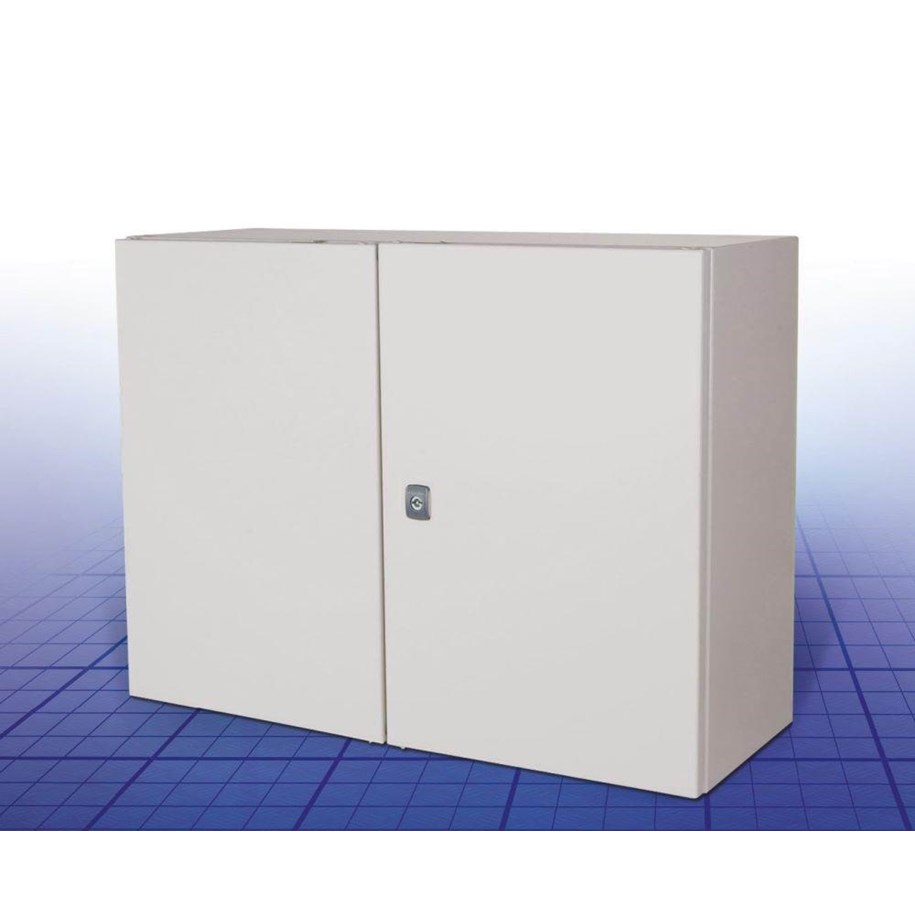

ELDON Wall mounted 600x800x300

Wall cabinet 600x800x300 MAD0608030R5 Product description: Description: Wall cabinet 600x800x300 Material: 1.4mm Lacquered steel MAD0608030 / 1.5mm MAD1001030 and above. Flange: 1.4mm steel Doors: 1.4mm steel / 1.8mm MAD0801230 and above Mounting plate: 2 mm galvanized steel /2,5 mm MAD1001030 and above Cabinet : Edge-folded and fully welded Four holes of diameter of Ø8,5 mm for wall mounting, pressed in Ø20,4 mm x2 mm recesses for air circulation behind the backside of the cabinet Door : Opening angle of130° Hidden removable hinges with secured hinge pin Secure sealing with a one-piece foamed polyurethane gasket Lock : Customized lock with double grip for easy door opening DIN3-mm insert and90° movement Espagnolette three-point lock Other inserts are supplied as accessories Mounting plate : The mounting plate is marked vertically at10-mm intervals for single placement of equipment There are holes at topand bottomfor cable fastening Welded on M8 screws spot-welded on the back wallof the cabinet All sides from800 mmand aboveare reinforced with folded edges When using AMG accessories,the positionofthe mountingplate can be adjusted to any depth Flange opening : Placed all the way back inthe cabinetto facilitate cablingonthe mountingplate Degreeof protection In accordancewith IP55and NEMA12 For outdoor installation,it is recommended to mount an ARF roof Surface treatment RAL7035 structured powder coating Delivery includes Cabinetwith doors Flange(s)with gasket(s), plastic DIN3-mm key,andmounting accessories Ground facilities Technical specifications Color Gray Width800 Height600 Depth300
