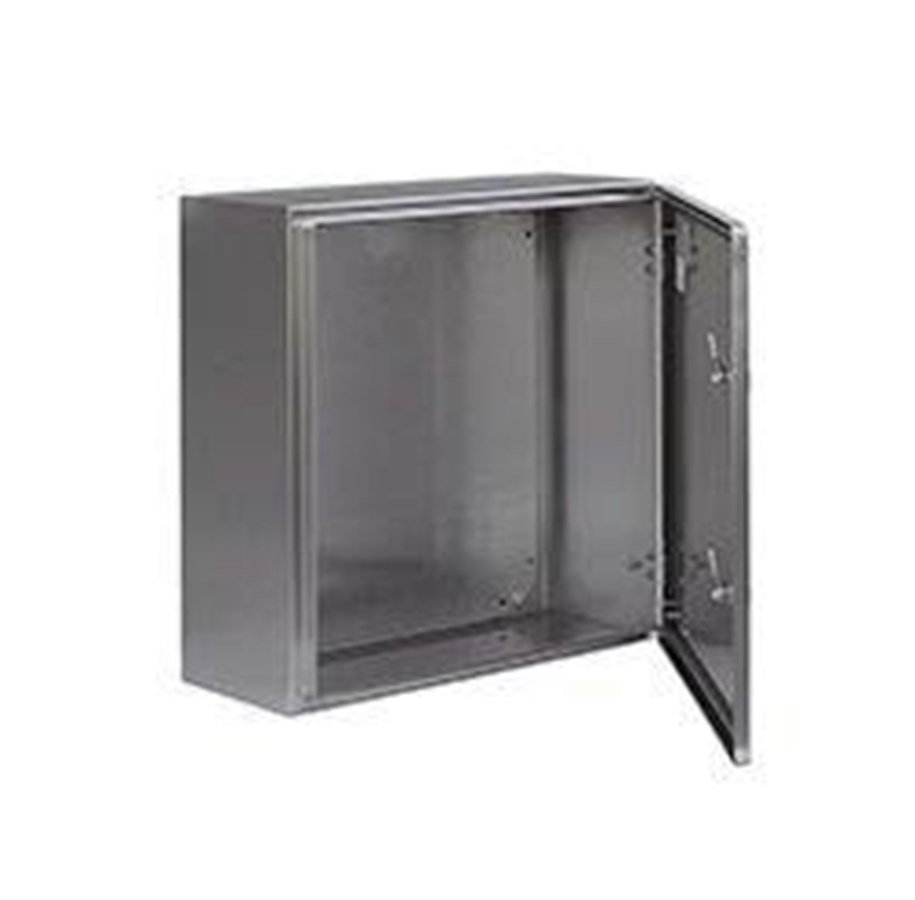

ELDON Wall mounted 800x600x300

Wall cabinet 800x600x300 ASR0806030 Product description: Description: RFt wall cabinet 800x600x300 Material: AISI 304 polished stainless steel. Cabinet: 1mm/1.5mm ASR0505021 and larger Door: 1.5mm/2mm ASR1008030 and larger, Mounting plate: 2mm galvanized Frame: Folded and fully welded. Door opening angle of 130°. Pre-polished AISI304. Hinges with removable split pin for right or left opening doors. Polyurethane gasket in one piece. The inside of the door has four welded threaded studs for mounting accessories.Locks : Chrome-plated DIN lock with a movement of up to 90° with anti-vibration mechanism.Lock in stainless steel and other versions can be supplied as accessories.Mounting plate : Attached to M8 screws welded to the back wall of the cabinet.In cabinets with a height of over 800 mm, the mounting plate has a fold on all four sides for extra stability.When using AMG accessories, the mounting plate can be adjusted in depth.Cable entry : No flange openings as standard to maximize sealing and clean lines.Degree of protection : In accordance with IP66 and NEMA4X,12,and13.IK10 Surface treatment :240s polished (average thickness is .5 microns).Delivery includes : Mounting plate complete with fixing hardware and grounding connection.Packed in recycled packaging.Additional information:The use of temperature control, ventilation,and rain covers is recommended for demanding outdoor applications.Please refer to the section on general accessoriesand technical chapterfor further information.Technical specifications.Color Stainless SteelWidth600Height800Depth300
