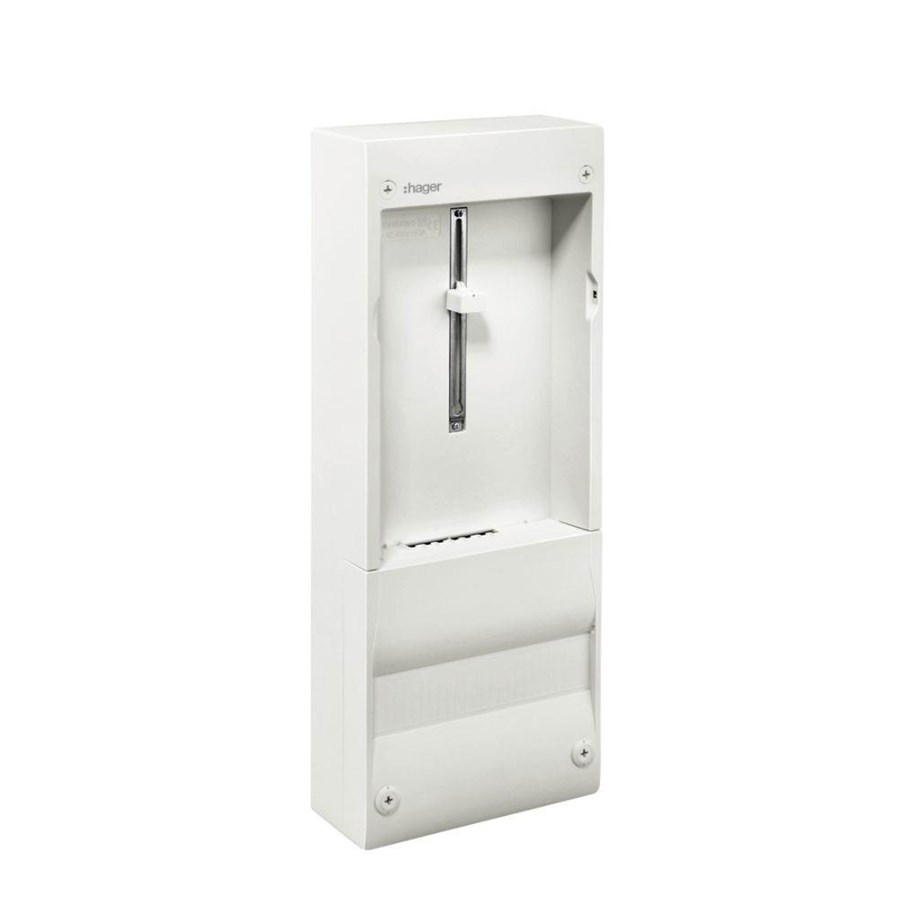

Hager Enclsoure for pin meters 63a direct measuring
Hager kapsling for pin-målere 63A. Montering med Gamma-kapslinger. Farge hvit RAL9010. H:625mm B:250mm D:103mm
1 929,00 kr
1 543,20 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-5 dager til forsendelse
Meter frame for plug-in meter 63AProduct description: Hager meter frame for plug-in meter 63A. For assembly with Gamma distribution boards. Direct measurement of 63A, 3 phases + neutral. Supplied with sealing screws and assembly kit. Color: RAL 9010 IP30. Complies with FR2011 and EN61439-3 standards.Dimensions: H=625mm, B=250mm, D=103mm.Connection:Standard connection and looping of copper conductors Class2 up to 10mm2.Looping:Looping of copper conductors Class5/6 up to16 mm2 using Klauke double ferrule.Use loop clamp KH24C. Aluminum conductors are mounted in the measuring terminal using clamp KF50S which handles25-50 mm2.Remember to clean and lubricate the aluminum conductor before installation.
Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
