Schneider Electric Abs ind box 138x93x72 lo tr

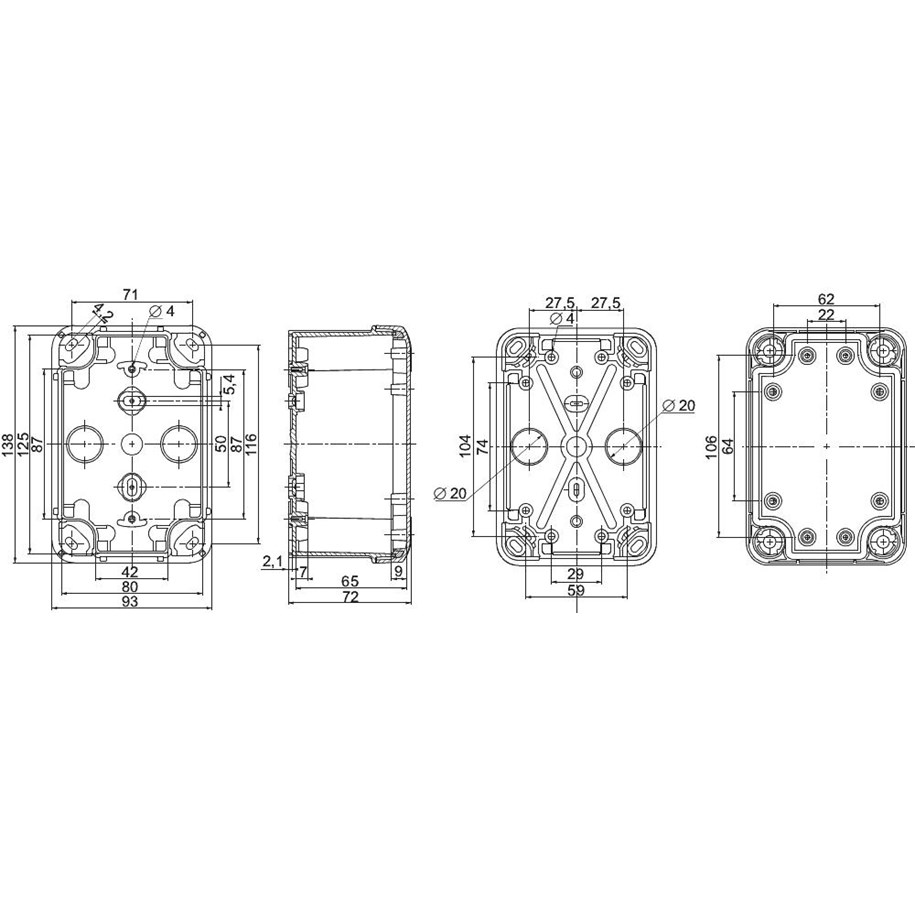

ABS box IP66 IK07 RAL7035 Int.H125W80D65 Ext.H138W93D72 Opaque cover H20
218,00 kr
174,40 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Bestillingsvare, leveringstiden kan ikke opplyses.
LM nr.: 7512401006
Er, mounting plates, spacers and standoffs, panels, anti-condensation valves, coupling sets, special screws and quick-release handles. ¦Appearance: gray RAL 7035. ¦Certifications: TUV, SEMKO, DEMKO. BenefitsIndustrial boxes for many purposes! •High water resistance: IP66. •The box can be suspended in three different ways. •Lid with multiple depths. •Many models fit together. •The lid can be locked with 4 plastic locking screws with strong threads outside the box space. •Many fastening pins in lid and base.•Wide range of accessories.•Easy processing and adaptation.Applications•Protection of small components that do not require frequent inspection or maintenance.Thalassa TBS - ABS boxes-ABS boxesProtection: •Waterproofing: IP66,NEMA 4-4X•Polyurethane gasket on the lid.•Double electrical insulation,type II.•Operating temperature:-25 to +60° C•Fire resistance :650° C Robustness:?External mechanical resistance :IK07?Design with rounded corners increases robustness.Range :¦20 sizes from 74 x 74 to 341 x291 mm (external)¦2 types of lids:- opaque- tinted transparent (from138 x93 mm)¦Lids in several heights:- low lids :10and20mm-highlids :40 ,60and80mm¦38 modelsin total .¦Equipment:hinges ,fastening flaps,cable entries,DIN rails,mounting plates ,spacersandstandoffs ,panels ,anti-condensation valves,coupling sets,special screws,andquick-releasehandles . ¦Appearance:gray,RAL7035 . ¦Certifications:TUV SEMKO DEMKO
Produsent
Varenummer
2759643
Model
NSYTBS1397
Ean
3606480165269
