Switchboxes og skap - Schneider Electric Enclosure wall-mounted panel resi9 cx reis9 board 3 row 13 modulator white ral9003 without door - R9H13843
Varenummer: 2949936

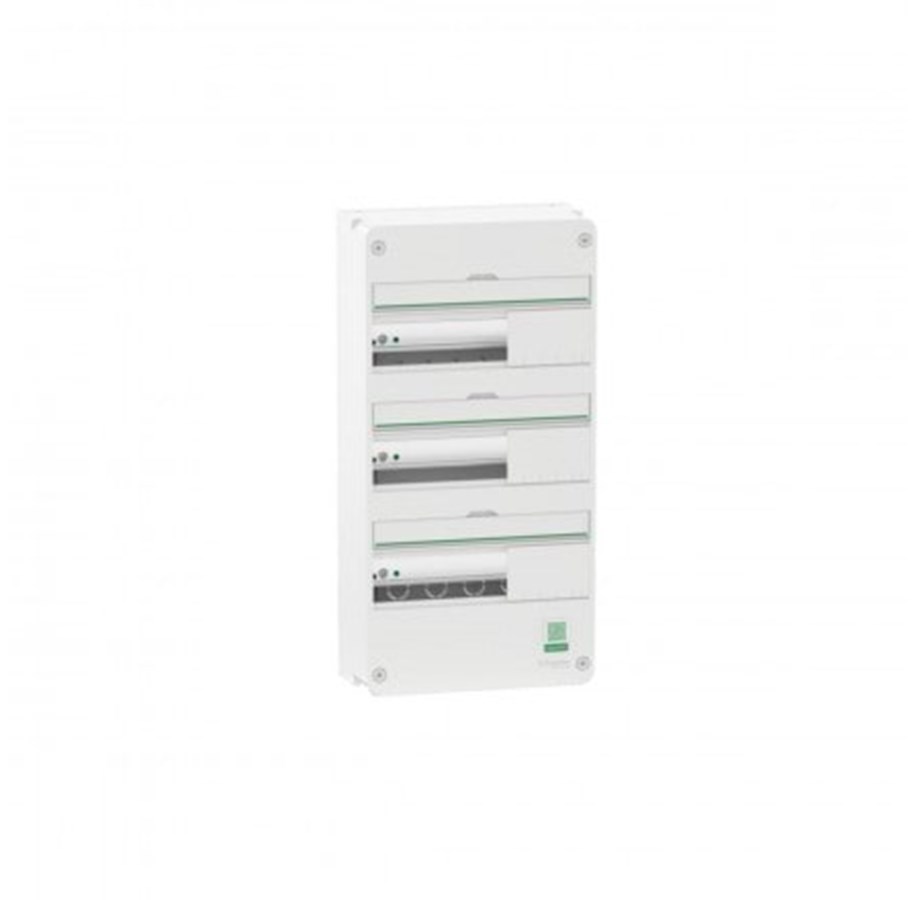

Schneider Electric Enclosure wall-mounted panel resi9 cx reis9 board 3 row 13 modulator white ral9003 without door

Resi9 CX is a surface-mounted distribution enclosure that can accommodate all types of modular switchgear.Mountingbb 4 oblong holes allow very quick horizontalityadjustment of the back.bb 4 screws for fast mounting on the insulating back.Removable DIN railbb The DIN rails can beremoved for easiercable routing.A large number of slots for terminal blocksbb The terminal block supports are clipped onto the top orbottom of the frame in many different ways.Each symmetrical rail has a hoodacity of26 modules of 9 mm (13 modules of 18 mm) or36 modules of 9 mm (18 modules of 18 mm).Considerable space is available under the frame.It allows insertion of cables and hands for easyinstallation.Easy entry cablebb The 4 surfaces of the hood are pre-cut out to insertcables or trunkings.bb The cables can enter via the 4 sides or via the bottom ofthe enclosure.

Les mer
853,00 kr 682,40 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 2-4 dager til forsendelse

Wall-mounted Resi9 CX panel board covering, 3 rows, 13 modules, white RAL9003 without door. Product description: Resi9 CX is a wall-mounted panel board that can contain all types of modular DIN rail units. Mounting - 4 elongated holes allow for very quick horizontal adjustment of the back/mounting plate. - 4 screws for quick mounting on the insulating backplate. Removable DIN rail - The DIN rails can be removed for easier cable routing. A large number of connection holes in terminal blocks - The terminal block unit is clipped at the top or bottom of the frame in many different ways. Each symmetrical DIN rail is on 13 modules of 18 mm.There is good mounting space under the frame.This makes it easy to insert cables and connect devices from installation.Easy access cable- The cover on the board is pre-cut to easily insert cables or wire channels.- Cables can enter through all four sides or through the bottom of the cover.

Produsent
Varenummer
2949936
Model
R9H13843
Ean
3606481185655
