Switch/splitter - Lanberg RSGE-24P-2GE-2S-250 - switch - 24 ports - unmanaged - rack-mountable - RSGE-24P-2GE-2S-250
Varenummer: 3256879

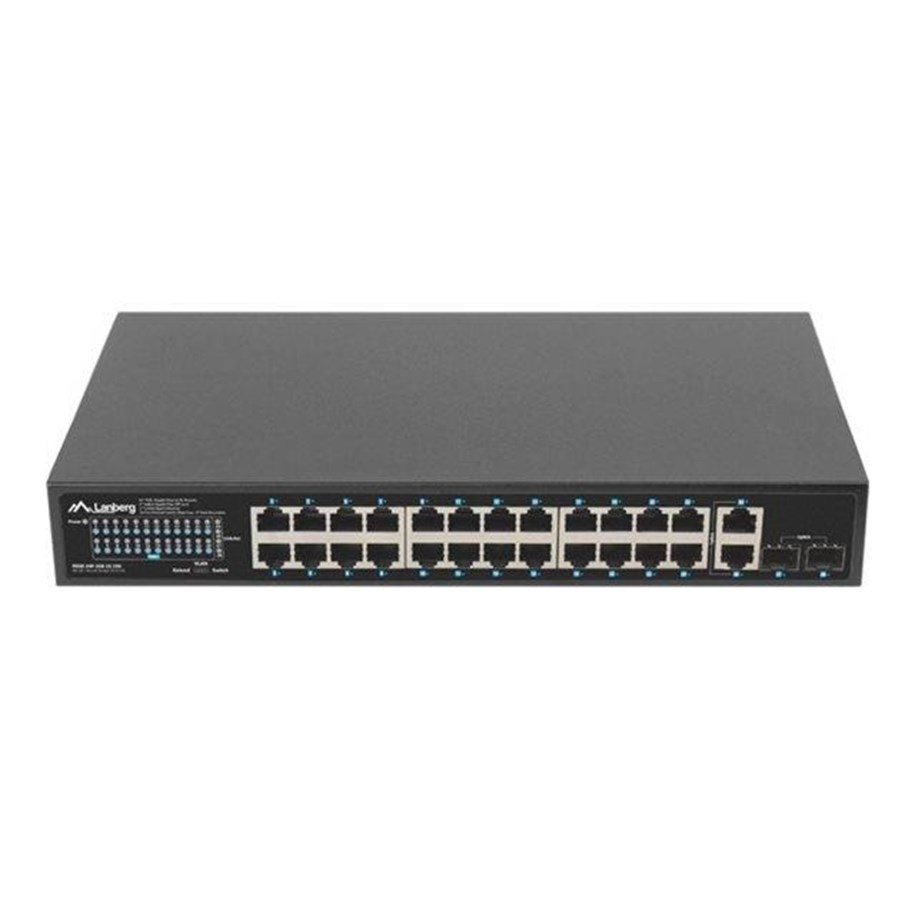

Lanberg RSGE-24P-2GE-2S-250 - switch - 24 ports - unmanaged - rack-mountable

Switch, ikke-styrt, 24 x 10/100/1000Base-TX (PoE+) + 2 x 1000Base-X SFP + 2 x 1000Base-X (uplink), rackmonterbar, PoE+ (250 W)

1 911,00 kr 1 528,80 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 5-7 dager til forsendelse

The PoE+ switch is an essential active networking device in any Ethernet infrastructure using power transmission through structural cabling. RSGE-24P-2GE-2S-250 is dedicated to all kinds of installations: home, business, low-voltage, surveillance, IP, VoIP, cable TV networks, and in a particular product can be used in alarm, fire, or access control system.Apart from the switch's primary function, i.e., supporting Ethernet frame transfer between ports, the device also provides a power supply for each appliance in PoE/PoE+ standard - 802.3af/at. This means that the switch can supply the devices with a total of up to 250 W. All of this is combined with data transmission at the same time.As a result, such a solution saves resources, space, and time to install a separate electrical and network infrastructure. This is especially important if the network is dispersed and its end-devices do not have direct access to the power source, in particular, when they are mounted outside.

Produsent
Varenummer
3256879
Model
RSGE-24P-2GE-2S-250
Ean
5901969438680
Til produsentens hjemmeside
Produktbeskrivelse
Lanberg RSGE-24P-2GE-2S-250 - switch - 24 porter - ikke-styrt - rackmonterbar
Enhetstype
Switch - 24 porter - ikke-styrt
Utførelse
Rackmonterbar 1U
Undertype
Gigabit Ethernet
Porter
24 x 10/100/1000Base-TX (PoE+) + 2 x 1000Base-X SFP + 2 x 1000Base-X (uplink)
Strøm via Ethernet (PoE)
PoE+
PoE-budsjett
250 W
Ytelse
Båndbredde: 56 Gbps
Mac Adress Tabellstørrelse
8K adresser
Egenskaper
Flytkontroll, metallhus, 4KV ESD Protector, utvidelsesmodus, aktiv kjøling
Tilpassede standarder
IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Strømforsyning
AC 100-240 V
Dimensjoner (BxDxH)
32 cm x 20.7 cm x 4.5 cm
Vekt
2.29 kg

Generelt

Enhetstype
Switch - 24 porter - ikke-styrt
Utførelse
Rackmonterbar 1U
Undertype
Gigabit Ethernet
Porter
24 x 10/100/1000Base-TX (PoE+) + 2 x 1000Base-X SFP + 2 x 1000Base-X (uplink)
Strøm via Ethernet (PoE)
PoE+
PoE-budsjett
250 W
Ytelse
Båndbredde: 56 Gbps
Mac Adress Tabellstørrelse
8K adresser
Egenskaper
Flytkontroll, metallhus, 4KV ESD Protector, utvidelsesmodus, aktiv kjøling
Tilpassede standarder
IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Statusindikatorer
Status

Ekspansjon / Tilkoplinger

Grensesnitt
24 x 1000Base-TX RJ-45 PoE+ - 30 W
2 x 1000Base-X SFP opplink
2 x 1000Base-X RJ-45 opplink

Strømforsyning

Strømenhet
Intern strømforsyning
Påkrevd nettspenning
AC 100-240 V
Strømforbruk ved drift
20 watt

Diverse

Rack-monteringssett
Inkludert
Tilpassede standarder
Plug and Play, IP20

Mål og vekt

Bredde
32 cm
Dybde
20.7 cm
Høyde
4.5 cm
Vekt
2.29 kg
