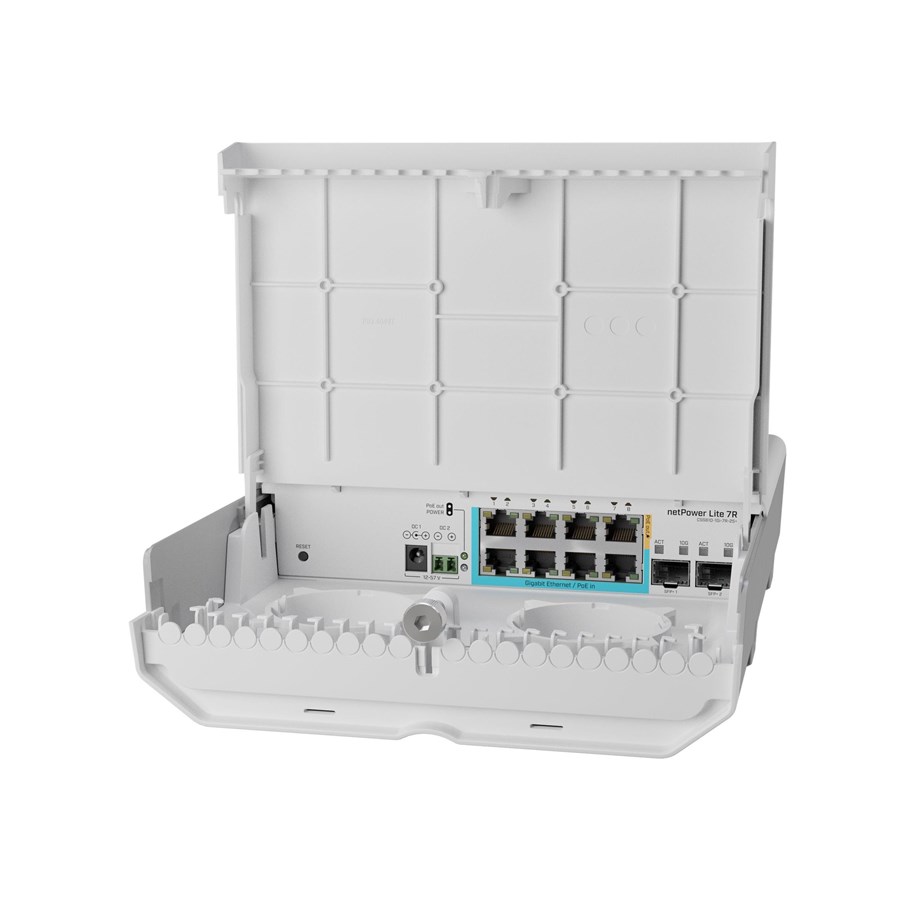

MikroTik CSS610-1GI-7R-2S+OUT netPower Lite 7R
Switch, 7 x 10/100/1000 (passive/reverse PoE) + 1 x 10/100/1000 (PoE-utgang) + 2 x 10 Gigabit SFP+, veggmonterbar, stangmonterbar, takmonterbar, Reverse PoE, DC-strøm
1 771,00 kr
1 416,80 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 6-8 dager til forsendelse
With netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.
With this switch you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.
The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.
With this switch you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.
The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.
Produsent
Varenummer
3183454
Model
CSS610-1GI-7R-2S+OUT
Ean
4752224000033
Til produsentens hjemmeside
Produktbeskrivelse
MikroTik netPower Lite 7R - switch - 8 porter - takmonterbar
Enhetstype
Switch - 8 porter
Utførelse
Takmonterbar
Undertype
Gigabit Ethernet
Porter
7 x 10/100/1000 (passive/reverse PoE) + 1 x 10/100/1000 (PoE-utgang) + 2 x 10 Gigabit SFP+
Strøm via Ethernet (PoE)
Reverse PoE
Ytelse
Ikke-blokkerende svitsjegjennomløp: 28 Gbps
Koblingskapasitet: 56 Gbps
Fremsendingsrate: 41.7 Mpps
Koblingskapasitet: 56 Gbps
Fremsendingsrate: 41.7 Mpps
Egenskaper
Utendørsinnhegning
Strømforsyning
DC 12 - 57 V
Dimensjoner (BxDxH)
30.4 cm x 21.2 cm x 7.1 cm
Generelt
Enhetstype
Switch - 8 porter
Utførelse
Veggmonterbar, stangmonterbar, takmonterbar
Undertype
Gigabit Ethernet
Porter
7 x 10/100/1000 (passive/reverse PoE) + 1 x 10/100/1000 (PoE-utgang) + 2 x 10 Gigabit SFP+
Strøm via Ethernet (PoE)
Reverse PoE
Ytelse
Ikke-blokkerende svitsjegjennomløp: 28 Gbps
Koblingskapasitet: 56 Gbps
Fremsendingsrate: 41.7 Mpps
Koblingskapasitet: 56 Gbps
Fremsendingsrate: 41.7 Mpps
Egenskaper
Utendørsinnhegning
Flash-minne
64 KB
Ekspansjon / Tilkoplinger
Grensesnitt
7 x 1000Base-T RJ-45 passiv/revers PoE
2 x 10 Gbit-LAN SFP+
1 x 1000Base-T RJ-45 PoE-utgang
2 x 10 Gbit-LAN SFP+
1 x 1000Base-T RJ-45 PoE-utgang
Strømforsyning
Påkrevd nettspenning
DC 12 - 57 V
Diverse
MTBF
200,000 timer
Tilpassede standarder
RoHS, IP54, EAC
Programvare / Systemkrav
Inkludert programvare
MikroTik SwitchOS Lite
Mål og vekt
Bredde
30.4 cm
Dybde
21.2 cm
Høyde
7.1 cm
