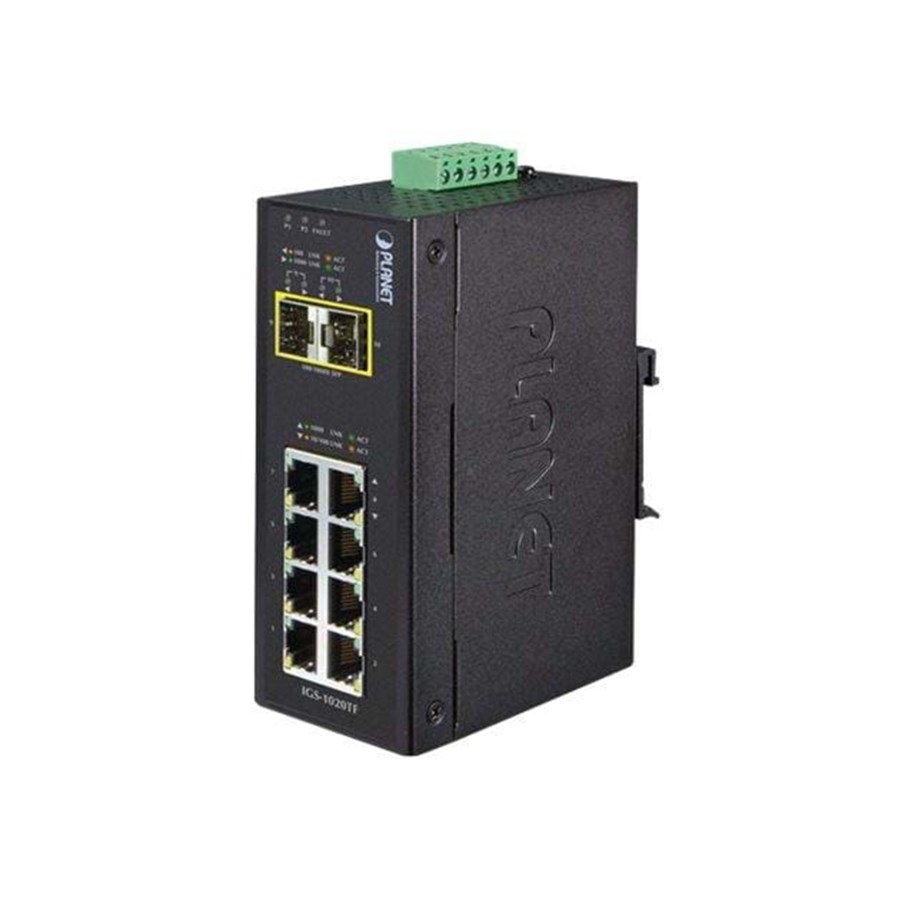

PLANET SWITCH IGS-1020TF (8-PORT 1000BASE-T + 2-PO
Switch, ikke-styrt, 8 x 10/100/1000 + 2 x Gigabit SFP, DIN-skinnemonterbar, AC 24 V / DC 12, 48 V
2 358,00 kr
1 886,40 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-5 dager til forsendelse
PLANET IGS-1020TF is an industrial 10-port full Gigabit Ethernet Switch providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet deployment and extension in harsh environment. It provides 8-port 10/100/1000BASE-T RJ45 copper and 2 extra 100/1000BASE-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system. The IGS-1020TF is well suited for applications in deploying surveillance system, secure control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.
The two mini-GBIC slots built in the IGS-1020TF support SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. They are well suited for applications to uplink to backbone switch and monitoring center in long distance.
With IP30 rugged metal case protection, the IGS-1020TF provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-1020TF can be placed in almost any difficult environment. The IGS-1020TF also allows either DIN rail or wall mounting for efficient use of cabinet space.
The two mini-GBIC slots built in the IGS-1020TF support SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. They are well suited for applications to uplink to backbone switch and monitoring center in long distance.
With IP30 rugged metal case protection, the IGS-1020TF provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-1020TF can be placed in almost any difficult environment. The IGS-1020TF also allows either DIN rail or wall mounting for efficient use of cabinet space.
Produsent
Varenummer
2649290
Model
IGS-1020TF
Ean
4711605282154
Til produsentens hjemmeside
Produktbeskrivelse
PLANET IGS-1020TF - switch - 10 porter - ikke-styrt
Enhetstype
Switch - 10 porter - ikke-styrt
Undertype
Gigabit Ethernet
Porter
8 x 10/100/1000 + 2 x Gigabit SFP
Ytelse
Ikke-blokkerende svtisjingsmulighet: 20 Gbps
Gjennomløpssvitsjing: 14.88 Mpps
Gjennomløpssvitsjing: 14.88 Mpps
Mac Adress Tabellstørrelse
4K adganger
Jumborammestøtte
9216 byte
Egenskaper
Auto-negotiation, auto-uplink (auto MDI/MDI-X), lagring og fremsending, 6KV ESD Protector, metallhus
Tilpassede standarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Strømforsyning
AC 24 V / DC 12 - 48 V
Dimensjoner (BxDxH)
5.6 cm x 8.7 cm x 13.5 cm
Vekt
540 g
Generelt
Enhetstype
Switch - 10 porter - ikke-styrt
Utførelse
DIN-skinnemonterbar
Undertype
Gigabit Ethernet
Porter
8 x 10/100/1000 + 2 x Gigabit SFP
Ytelse
Ikke-blokkerende svtisjingsmulighet: 20 Gbps
Gjennomløpssvitsjing: 14.88 Mpps
Gjennomløpssvitsjing: 14.88 Mpps
Mac Adress Tabellstørrelse
4K adganger
Jumborammestøtte
9216 byte
Egenskaper
Auto-negotiation, auto-uplink (auto MDI/MDI-X), lagring og fremsending, 6KV ESD Protector, metallhus
Tilpassede standarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Statusindikatorer
Strøm, 1000 M enhetskoplet, lenke/aktivitet
Ekspansjon / Tilkoplinger
Grensesnitt
2 x 1000Base-X SFP
2 x 1000Base-T RJ-45
2 x 1000Base-T RJ-45
Strømforsyning
Påkrevd nettspenning
AC 24 V / DC 12 - 48 V
Strømforbruk ved drift
8.7 watt
Diverse
Tilpassede standarder
FCC Klasse A godkjent, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30
Mål og vekt
Bredde
5.6 cm
Dybde
8.7 cm
Høyde
13.5 cm
Vekt
540 g
