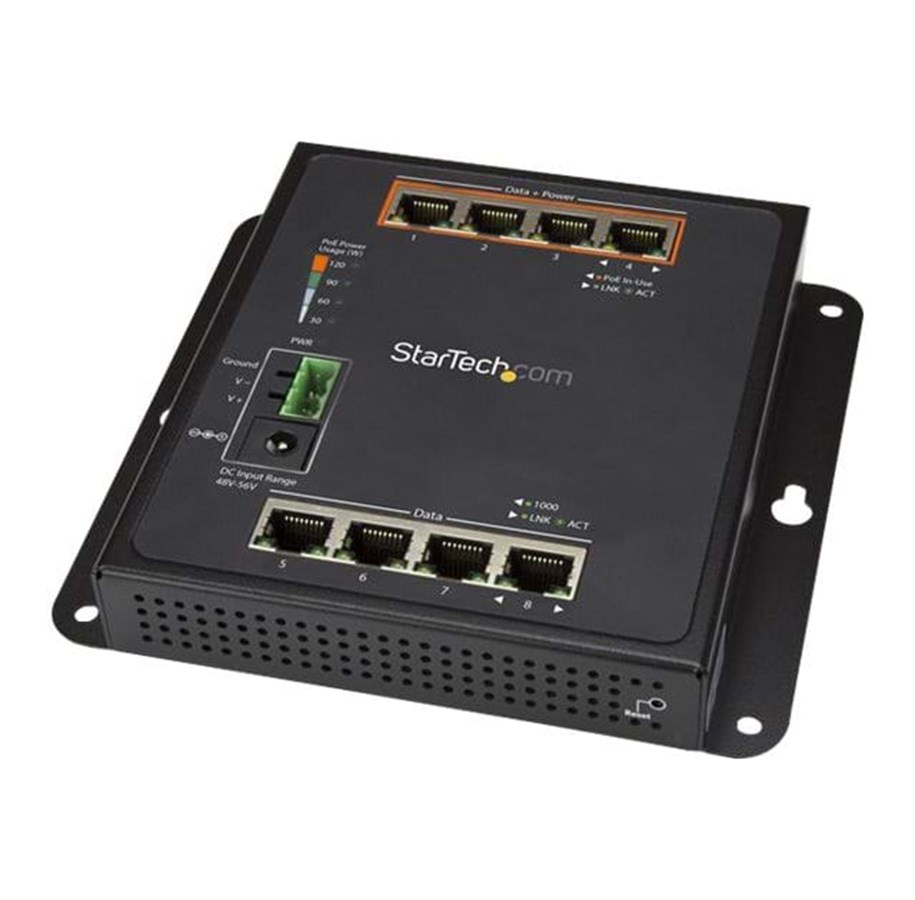

StarTech.com 8-Port (4 PoE+) Gigabit Ethernet Switch - Managed - Wall Mount with Front Access
Managed, Wall Mount with Front Access, Switch, Styrt, 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+), veggmonterbar, PoE+ (120 W), DC-strøm
6 352,00 kr
5 081,60 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, leveringstiden kan ikke opplyses.
UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025
Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.
Connect up to 8 different GbE (4 PoE+) devices, using this IP30 industrial Ethernet switch with intelligent Layer 2 management. Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet (GbE) connections, including four PoE+ ports. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.
This Gigabit Ethernet switch lets you expand your network by connecting up to eight RJ45 devices (four PoE+). The 8-port switch enables up to eight users to share files and devices, such as printers and scanners, over a LAN connection, by enhancing your existing network capacity with additional ports.
The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (120W budget).
With its compact design, you can wall-mount the Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.
The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.
This rugged network switch features an IP30-rated metal housing and extended operating temperature range of -40°C to 75°C, which makes it ideal for a wide range of conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.
With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames, and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.
To help prevent any unnecessary downtime, the switch features redundant 12-58V DC terminal block power inputs, which ensures seamless operation in the event of power dips or failures.
This Gigabit Ethernet switch lets you expand your network by connecting up to eight RJ45 devices (four PoE+). The 8-port switch enables up to eight users to share files and devices, such as printers and scanners, over a LAN connection, by enhancing your existing network capacity with additional ports.
The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (120W budget).
With its compact design, you can wall-mount the Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.
The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.
This rugged network switch features an IP30-rated metal housing and extended operating temperature range of -40°C to 75°C, which makes it ideal for a wide range of conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.
With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames, and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.
To help prevent any unnecessary downtime, the switch features redundant 12-58V DC terminal block power inputs, which ensures seamless operation in the event of power dips or failures.
Produsent
Varenummer
2597354
Model
IES81GPOEW
Ean
0065030871112
Til produsentens hjemmeside
Produktbeskrivelse
StarTech.com Industrial 8 Port Gigabit PoE Switch, 4 x PoE+ 30W, Power Over Ethernet, Hardened GbE Layer/L2 Managed Switch, Rugged High Power Gigabit Network Switch IP-30/-40C to +75C - Managed Network Switch (IES81GPOEW) - switch - 8 porter - Styrt
Enhetstype
Switch - 8 porter - Styrt
Undertype
Gigabit Ethernet
Porter
4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
Strøm via Ethernet (PoE)
PoE+
PoE-budsjett
120 W
Ytelse
Dataoverføringsrate: 2 Gbps
Kapasitet
Bufferkapasitet (MB): 0.512
Jumborammestøtte
9KB
Rutingprotokoll
MLD, IGMP
Protokoll for fjernstyrt administrasjon
HTTP
Egenskaper
Lag 2-svitsjing, kan monteres på vegg, IPv6-støtte, full dupleksmodus, ICMP, 802.1x-verifisering, TFTP-støtte, 6KV ESD Protector, 6KV EFT-beskytter, merket VLAN
Tilpassede standarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1x, IEEE 802.1Q, IEEE 802.1ab (LLDP)
Strømforsyning
DC 12 - 48 V
Dimensjoner (BxDxH)
14.8 cm x 13.4 cm x 2.5 cm
Vekt
625 g
Farge
Svart
Fabrikantgaranti
2 års garanti
Generelt
Enhetstype
Switch - 8 porter - Styrt
Utførelse
Veggmonterbar
Undertype
Gigabit Ethernet
Porter
4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
Strøm via Ethernet (PoE)
PoE+
PoE-budsjett
120 W
Ytelse
Dataoverføringsrate: 2 Gbps
Kapasitet
Bufferkapasitet (MB): 0.512
Jumborammestøtte
9KB
Rutingprotokoll
MLD, IGMP
Protokoll for fjernstyrt administrasjon
HTTP
Egenskaper
Lag 2-svitsjing, kan monteres på vegg, IPv6-støtte, full dupleksmodus, ICMP, 802.1x-verifisering, TFTP-støtte, 6KV ESD Protector, 6KV EFT-beskytter, merket VLAN
Tilpassede standarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1x, IEEE 802.1Q, IEEE 802.1ab (LLDP)
Statusindikatorer
Strøm, PoE
Ekspansjon / Tilkoplinger
Grensesnitt
4 x 1000Base-T RJ-45
4 x 1000Base-T RJ-45 PoE+ - 30 W
1 x terminalblokk
4 x 1000Base-T RJ-45 PoE+ - 30 W
1 x terminalblokk
Strømforsyning
Påkrevd nettspenning
DC 12 - 48 V
Diverse
Farge
Svart
Tilleggsutstyr inkludert
4 x skruer, festestifter, låsestifter, 4 pakninger, 4 magneter, DIN-skinnemonteringssett, 8 RJ45-støvhetter
MTBF
>100,000 timer
Tilpassede standarder
IP30, RoHS, RCM, WEEE, FCC
Mål og vekt
Bredde
14.8 cm
Dybde
13.4 cm
Høyde
2.5 cm
Vekt
625 g
