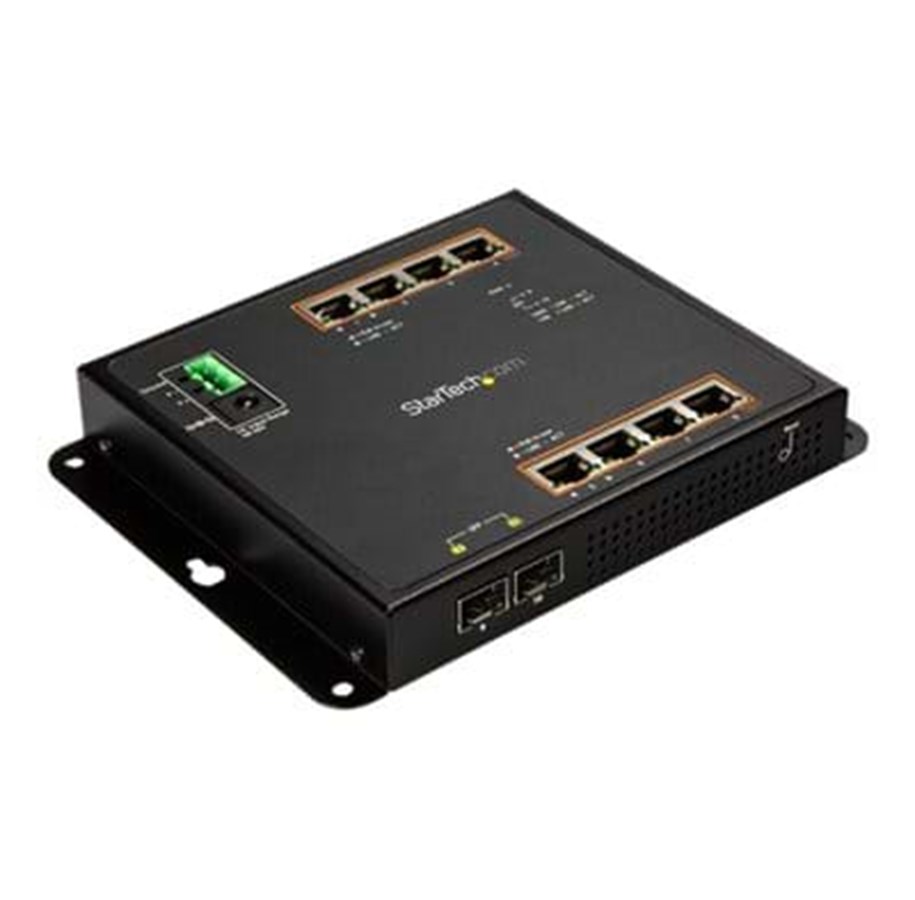

Switch/splitter - StarTech.com 8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections - Managed - Wall Mount with Front Access - IES101GP2SFW
Varenummer: 2597355
IES101GP2SFW
IES101GP2SFW
IES101GP2SFW

StarTech.com 8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections - Managed - Wall Mount with Front Access

Managed, Wall Mount with Front Access, Switch, Styrt, 8 x 10/100/1000 (PoE+) + 2 x SFP, DIN-skinnemonterbar, veggmonterbar, PoE+ (200 W)

7 360,00 kr 5 888,00 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, leveringstiden kan ikke opplyses.
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Add up to 10 different GbE devices to your network, using 8 RJ45 (PoE+) and 2 fiber-optic connections, with intelligent Layer 2 management. Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet ports (PoE+) and two fiber-optic SFP slots. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.
This versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.
Dual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget).
Wall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.
The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.
This rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.
With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.

Produsent
Varenummer
2597355
Model
IES101GP2SFW
Ean
0065030871198
Til produsentens hjemmeside
Produktbeskrivelse
StarTech.com Industrial 8 Port Gigabit PoE+ Switch with 2 SFP MSA Slots, 30W, Layer/L2 Switch Hardened GbE Managed, Rugged High Power Gigabit Ethernet Network Switch IP-30/-40 C to 75 C - Managed Network Switch (IES101GP2SFW) - switch - 10 porter - Styrt
Enhetstype
Switch - 10 porter - Styrt
Undertype
Gigabit Ethernet
Porter
8 x 10/100/1000 (PoE+) + 2 x SFP
Strøm via Ethernet (PoE)
PoE+
PoE-budsjett
200 W
Ytelse
Dataoverføringsrate: 2 Gbps
Jumborammestøtte
9KB
Rutingprotokoll
MLD, IGMP
Protokoll for fjernstyrt administrasjon
HTTP
Egenskaper
Lag 2-svitsjing, kan monteres på vegg, IPv6-støtte, full dupleksmodus, ICMP, 802.1x-verifisering, TFTP-støtte, 6KV ESD Protector, 6KV EFT-beskytter, merket VLAN, flytkontroll
Tilpassede standarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1x, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3af, IEEE 802.3at
Dimensjoner (BxDxH)
14.8 cm x 13.4 cm x 2.5 cm
Vekt
496 g
Farge
Svart
Fabrikantgaranti
2 års garanti
Designet for
P/N: 3CSFP91ST, 453154B21ST, EXSFP1GELXST, EXSFP1GESXST, EXSFP1GETST, GLCEXSMDST, GLCLHSMDSTTA, GLCLXSMRGDST, GLCSXMMDST, GLCSXMMDSTT, GLCSXMMRGDST, GLCTEST, GLCTSTTAA, GLCZXSMRGDST, J4859CST, J8177C10PKST, J8177CST, JD089BST, JD118BST, JD119BST, MASFP1GBLX10, MASFP1GBSXST, MASFP1GBTXST, SFP1GELXST

Generelt

Enhetstype
Switch - 10 porter - Styrt
Utførelse
Veggmonterbar, DIN-skinnemonterbar
Undertype
Gigabit Ethernet
Porter
8 x 10/100/1000 (PoE+) + 2 x SFP
Strøm via Ethernet (PoE)
PoE+
PoE-budsjett
200 W
Ytelse
Dataoverføringsrate: 2 Gbps
Jumborammestøtte
9KB
Rutingprotokoll
MLD, IGMP
Protokoll for fjernstyrt administrasjon
HTTP
Egenskaper
Lag 2-svitsjing, kan monteres på vegg, IPv6-støtte, full dupleksmodus, ICMP, 802.1x-verifisering, TFTP-støtte, 6KV ESD Protector, 6KV EFT-beskytter, merket VLAN, flytkontroll
Tilpassede standarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1x, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3af, IEEE 802.3at
Statusindikatorer
Strøm

Ekspansjon / Tilkoplinger

Grensesnitt
8 x 1000Base-TX RJ-45 PoE+ - 30 W
2 x 1000Base-TX SFP
1 x terminalblokk

Diverse

Farge
Svart
Tilleggsutstyr inkludert
4 x skruer, festestifter, låsestifter, 4 pakninger, 4 magneter, DIN-skinnemonteringssett, 8 RJ45-støvhetter, 2 SFP-støvhetter
MTBF
>100,000 timer
Tilpassede standarder
IP30, RoHS, RCM, WEEE, FCC

Mål og vekt

Bredde
14.8 cm
Dybde
13.4 cm
Høyde
2.5 cm
Vekt
496 g

Miljøparametere

Min. driftstemperatur
-40 °C
Maks. Driftstemperatur
75 °C
Driftsfuktighet
5 - 95 % (ikke-kondenserende)

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
