Switch/splitter - Tripp Lite Eaton  series Industrial Ethernet Switch 8-Port Unmanaged - 10/100 Mbps Ruggedized DIN/Wall Mount - NFI-U08-1
Varenummer: 3302667
NFI-U08-1
NFI-U08-1

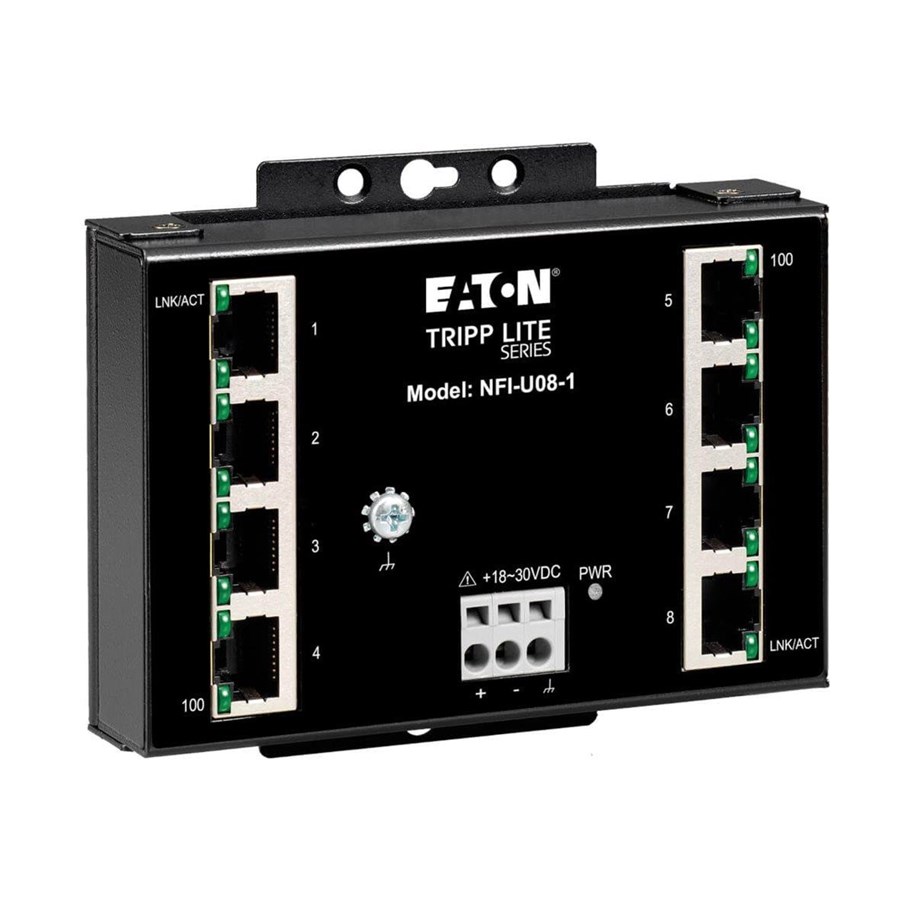

Tripp Lite Eaton series Industrial Ethernet Switch 8-Port Unmanaged - 10/100 Mbps Ruggedized DIN/Wall Mount

10/100 Mbps, Ruggedized, DIN/Wall Mount, Switch, ikke-styrt, 8 x 10/100, DIN-skinnemonterbar, veggmonterbar, DC power, TAA-samsvar

1 793,00 kr 1 434,40 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, leveringstiden kan ikke opplyses.

The NFI-U08-1 switch connects devices, such as computers, printers and servers, to a local area network (LAN) and allows them to communicate over the network. Eight auto-negotiating 10/100 Mbps Ethernet ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.Because it is an unmanaged switch, the NFI-U08-1 does not require configuration before use. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U08-1 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.The NFI-U08-1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Produsent
Varenummer
3302667
Model
NFI-U08-1
Til produsentens hjemmeside
Produktbeskrivelse
Eaton Tripp Lite series Industrial Ethernet Switch 8-Port Unmanaged - 10/100 Mbps, Ruggedized, DIN/Wall Mount - switch - 8 porter - ikke-styrt - TAA-samsvar
Enhetstype
Switch - 8 porter - ikke-styrt
Porter
8 x 10/100
Ytelse
Koblingskapasitet: 1,6 Gbps
Egenskaper
Flytkontroll, Auto-negotiation, auto-uplink (auto MDI/MDI-X), robust, metallhus, MAC-adresseopplæring
Tilpassede standarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Strømforsyning
DC 18 - 30 V
Dimensjoner (BxDxH)
10.9 cm x 2.3 cm x 4.8 cm
Vekt
190 g
Farge
Svart
TAA-samsvar
Ja
Fabrikantgaranti
3 års garanti

Generelt

Enhetstype
Switch - 8 porter - ikke-styrt
Utførelse
DIN-skinnemonterbar, veggmonterbar
Porter
8 x 10/100
Ytelse
Koblingskapasitet: 1,6 Gbps
Egenskaper
Flytkontroll, Auto-negotiation, auto-uplink (auto MDI/MDI-X), robust, metallhus, MAC-adresseopplæring
Tilpassede standarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Statusindikatorer
Strøm, overfør, motta, LAN, lenke/aktivitet

Ekspansjon / Tilkoplinger

Grensesnitt
8 x 100Base-T RJ-45

Strømforsyning

Påkrevd nettspenning
DC 18 - 30 V

Diverse

Farge
Svart
Tilleggsutstyr inkludert
Veggmonteringsbøyler, DIN-rail clip
Tilpassede standarder
Plug and Play, FCC, RoHS, REACH, IEEE 802.3, IEEE 802.3u
TAA-samsvar
Ja

Mål og vekt

Bredde
10.9 cm
Dybde
2.3 cm
Høyde
4.8 cm
Vekt
190 g

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
