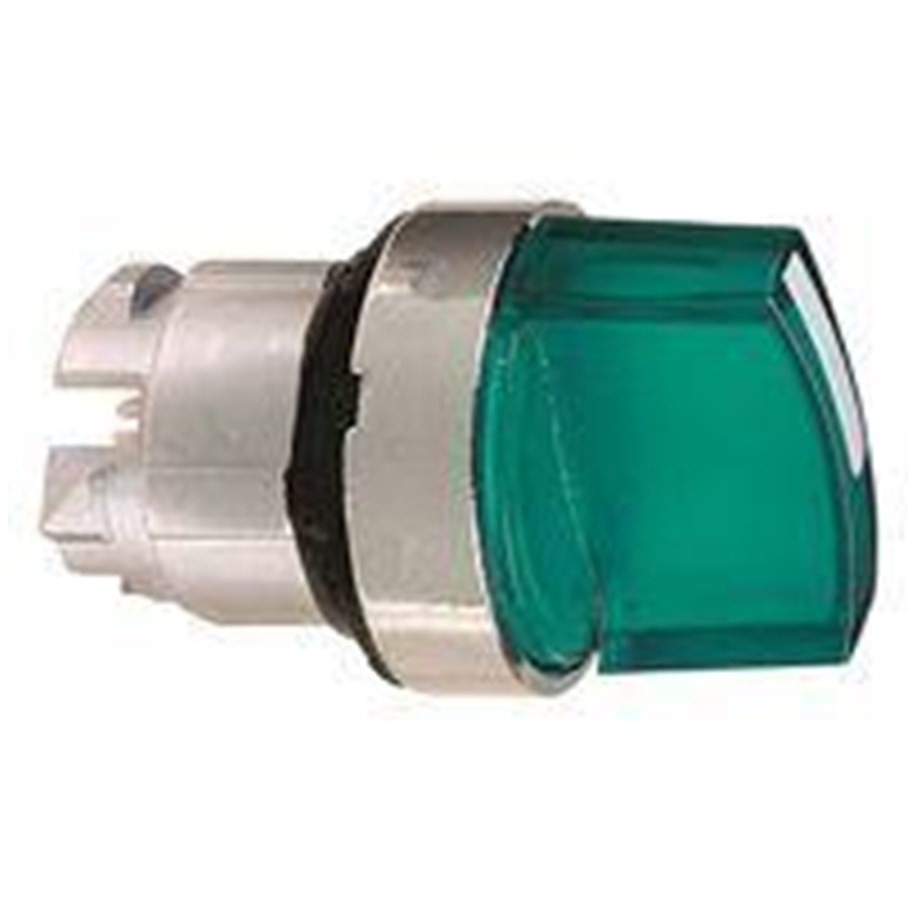

Schneider Electric Illuminated selec to r switch head 3 pos

Rotary switch with light, 3 positions, right return to M green. Product description: Push buttons, switches and diodes with front ring in chrome-plated metal, Ø 22 mm. Very wide range of products including push buttons (momentary), push buttons with multiple functions in the same Ø22 hole, switches and key grips. Diodes (LED-, incandescent- or neon bulbs) are also available as well as combined functions such as contact + signal (lamp press). Finished products (XB**) or loose parts (ZB**) can be assembled by the customer. Connection to contact element: screw terminal with self-tightening feature, plug-in-with connector or ready-made cables, spade connectors and spring terminals are all options available for connection. High power contacts (10A) normally have a rating of 6A while gold contacts have early closing and late breaking features making them robust and safe for use in harsh environments.Certified and approved to meet requirements on all continents including EN/IEC UL CSA CCC Gost JIS NEMA...CE marked up to IP66 IP69K electric contact with low load but high power is possible thanks to vibration-resistant connection screws that do not require tightening after installation.There is a complete set of accessories designed for applications that are exposed daily to high-pressure cleaning dust extreme temperatures etcetera which you can find more information about under More Links.Simple fast installation requires only one installation program secured by a single locking screw that prevents rotation common accessories include technical specifications such as color green type return V+H to M number of positions three positions among others
