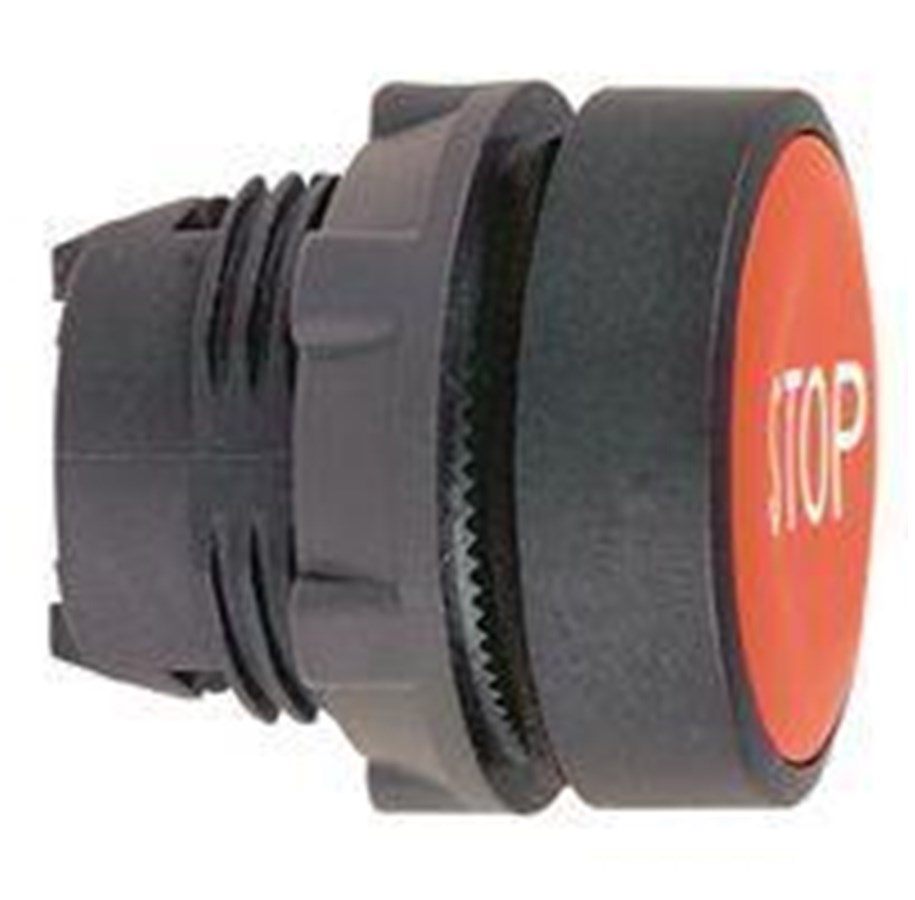

Schneider Electric Pushbutton operator head
red flush pushbutton head Ø22 spring return STOP
197,00 kr
157,60 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 2-5 dager til forsendelse
LM nr.: 7517903101
UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025
Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.
Push button ZB5AA434 flush-mounted red label: stopProduct description: Push buttons, rotary and key switches Harmony Style 5 (Series XB5) plastic Ø 22 mm - Complete units - Paddle pushbutton, black Ø40mmPushbutton program Harmony style 5The pushbutton program Harmony style 5 refers to the series of pushbuttons, signal lamps and lamp pushes with plastic front rings. The series type numbers start with XB5 and replace the Ø22 mm XA2-B series. However, the XA2-B series is still used with the XAC pendant pushbutton program and is therefore included in this catalog. See section on pendant pushbuttons.Signal lamps and lamp pushes now use Protected LED technology, which provides up to 100,000 hours of maintenance-free operation. The advantages of the new LEDs compared to traditional incandescent bulbs include:less maintenanceno need for lamp testingall colors available (including blue and white)wide voltage range with same light intensity: 12V and 230V (see limit values on page 311).Connection can be made either via screws with locking washers, plugs or pins for printed circuit boards.The program consists of:Complete units XB5-AComponents for assembly ZB5-ALoose parts and accessories ZB5-ADe complete units consist of:Flush-mounted push buttons, flush-mounted with silicone cap, raised and paddle-push buttons,double-push buttons,emergency stop (push-pull,push-turning,and emergency stop with key according to EN418),rotary switches,key switches.Signal lamps (3 types):With built-in LED,for BA9s incandescent bulbs directly supplied or through a transformer.Lamp pushes (five types):Round ones With built-in LED For BA9s incandescent bulbs directly supplied or through a transformer Double-lamp pushes with built-in LED and rotary switches with built-in LED.Signs (common to XB4 and XB5 series)The signs can be designed by the user using design software provided on a diskette.Ø 22 mm timers, sounders, and fuse holdersOther products from the Harmony style 5 series include:timers from 0 to 9999.9 hours,sounders, 80DB,fuse holders for 5x20mm fuses.Technical specifications:Color: RedType: Flush-mountedContacts:
Produsent
Varenummer
2759063
Model
ZB5AA434
Ean
3389110904703
Til produsentens hjemmeside
Modell/Type
Trykkbryter
Innebygd skjerm
Nei
Tilkoblingsteknologi
Koblet med ledninger (ikke trådløs)
Kroppsmateriale
Plast
Produktfarge
Rød
Antall moduler
1
Internasjonal beskyttelses (IP)-kode
IP66, IP67
Sertifisering
BV
CSA
DNV
GL
LROS (Lloyds register of shipping)
RINA
UL listed
Bredde
29 mm
Dybde
28 mm
Høyde
29 mm
Vekt
18 g
Driftstemperatur (T-T)
-40 - 70 °C
Oppbevaringstemperaturomåde (Celsius)
-40 - 70 °C
Egenskaper
Modell/Type
Trykkbryter
Innebygd skjerm
Nei
Tilkoblingsteknologi
Koblet med ledninger (ikke trådløs)
Kroppsmateriale
Plast
Produktfarge
Rød
Antall moduler
1
Internasjonal beskyttelses (IP)-kode
IP66, IP67
Sertifisering
BV
CSA
DNV
GL
LROS (Lloyds register of shipping)
RINA
UL listed
Vekt og dimensjoner
Bredde
29 mm
Dybde
28 mm
Høyde
29 mm
Vekt
18 g
Miljømessige forhold
Driftstemperatur (T-T)
-40 - 70 °C
Oppbevaringstemperaturomåde (Celsius)
-40 - 70 °C
Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
