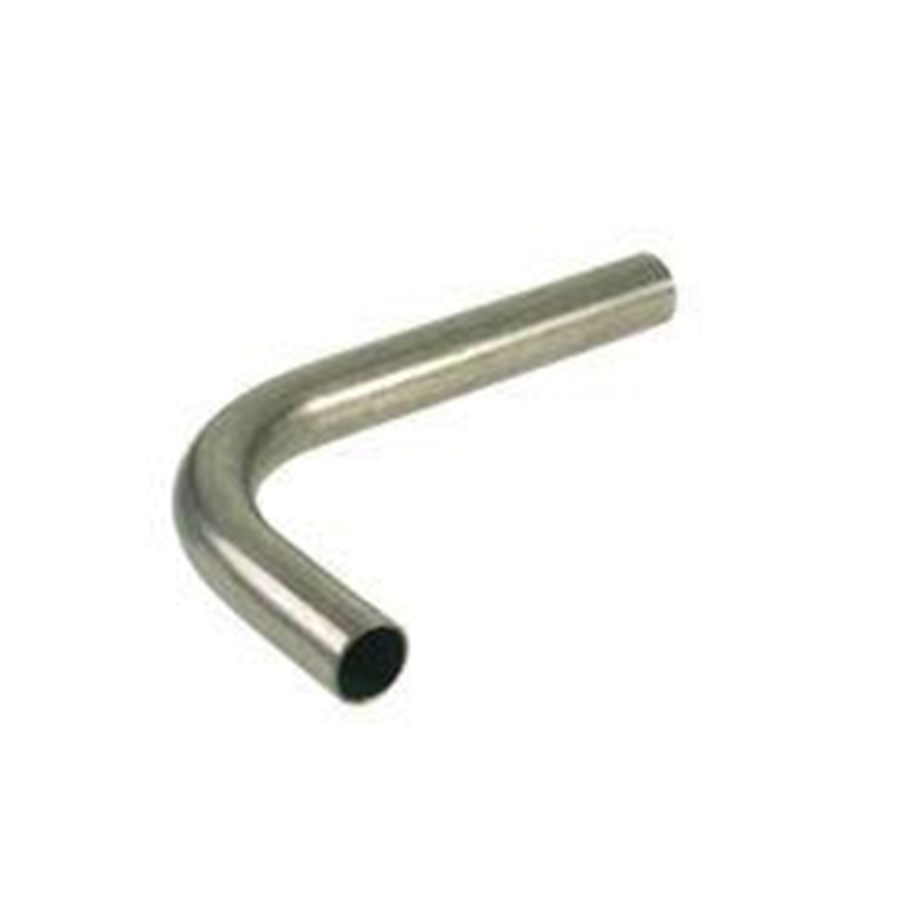

Vsh Fabrieken Xpr s bend pipe 90o øø 28

VSH 90° bend nipple/nipple 28mm stainless steelProduct description: VSH X Press in stainless steel is a complete system of fittings and pipes from 15mm to 108mm for installations for domestic water, rainwater, softened water, desalinated water, distilled water, heating systems and cooling systems.Advantages:- Can be pressed with most brands of universal M-profile pressing tools.- Complete system program with fittings, pipes and valves.- Approved in accordance with DVGW working diagram W534.- Very precise tolerances make the pipe easy to insert into the fittings.- Pressure testing of all welded parts.- VA approved- Suitable for all types of pipes that comply with DIN 17455.Technical characteristics:Material:Pipes and fittings: AISI 316 (1.4401)O-ring: EPDM (LBP) Leak Before PressedApplication area:Medium: WaterTemperature: -20/+110 CPressure: Max.16 barProduct family:VSH XPress in galvanized steel is a complete system of fittings and pipes ranging from 12 mm to108 mm for heating and cooling systems.Advantages:Can be pressed with most brands of universal M-profile pressing tools.Complete system program with fittings, pipes and valves.O-ring with leak before pressed feature. Laser-welded joints. All welded joints are pressure tested. Very precise tolerances make the pipe easy to insert into the fitting. Suitable for all types of tubes that comply EN10305 -3 (formerly DIN2394).Technical characteristics:Material:Fittings Galvanized Steel RSt34 -2 Gasket EPDM leak before pressed (LBP)Application area:Medium : Water Temperature : -20/+110 C Pressure : Max .16 bar Technical specifications :Weight :0 ,175 Dimension : 28mm
