Vsh Fabrieken Xpr stainless t thr fff 18xrp3/4x18

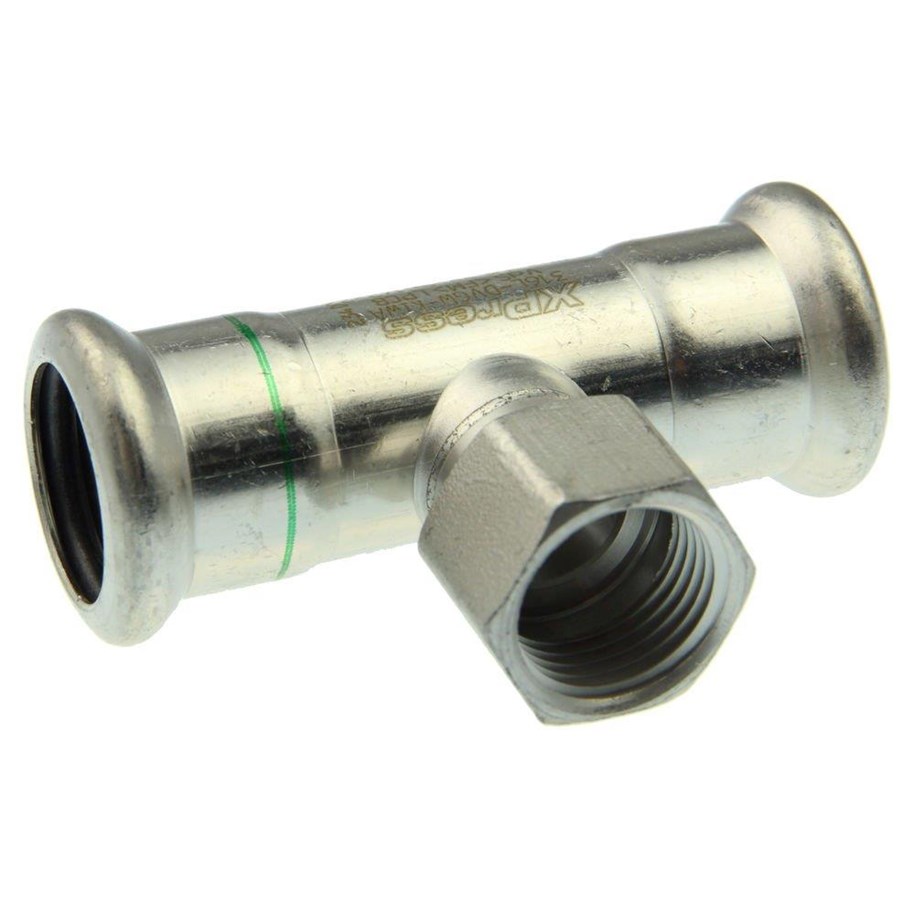

VSH Tee Coupling/Coupling/Coupling 18 mm X 3/4X18 mm Stainless SteelProduct Description: VSH X Press in stainless steel is a complete system with fittings and pipes from 15 mm - 108 mm for installations for domestic water, rainwater, softened water, desalinated water, distilled water, heating systems and cooling systems.Advantages:Can be pressed with most brands of universal M-profile pressing tools.Complete system program with fittings, pipes and valves.Approved in accordance with DVGW working diagram W534.Very precise tolerances make the pipe easy to insert into fittings.Pressure testing of all welded parts.VA approved.Suitable for all pipe types that comply with DIN 17455.Technical Characteristics:Material:Pipe and Fittings: AISI 316 (1.4401)O-ring: EPDM (LBP) Leak Before PressedApplication Area:Medium: WaterTemperature: -20/+110 CPressure: Max.16 barApproval:VAProduct Family:VSH XPress in galvanized steel is a complete system with fittings and pipes ranging from 12mm-108mm for heating and cooling systems.Advantages:Can be pressed using most brands of universal M-profile pressing tools. Complete system program including fittings, pipes & valves. Leak before press O-ring technology. Laser-welded joints. All welded joints are pressure tested to ensure quality control standards are met consistently across the range of products available within this family line-up.Technical Characteristics:Material:Fittings Galvanized Steel RSt34-2 Packing EPDM leak before pressed (LBP)Application Area:Medium Water Temperature -20/+110 C Pressure Max.16 bar Technical Specifications:Weight :0 .119 Dimension :18X3/4X18mm
