Ventilation - Ls Control Co2 sensor es 899 - 48304
Varenummer: 2749876

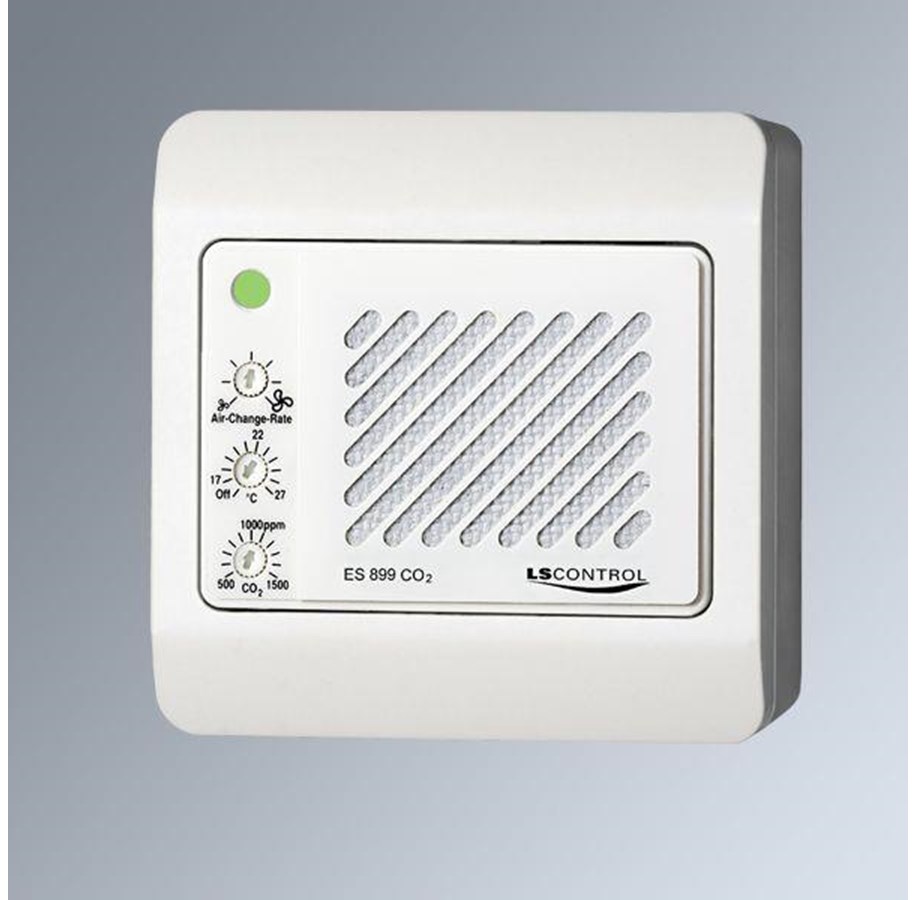

Ls Control Co2 sensor es 899

The CO2 sensor is a combined sensor and regulator for a wide range of applications. For full control of ventilation in offices and/or as CO2 sensor in more complicated ventilation systems.It is provided with two independent 0-10V outputs. A proportional output based on the current CO2 level, and one control output designed for control of damper or ventilation plant. Room temperature can be included as a control parameter. Also available with integrated MODBUS communication protocol for retrieval of data from the unit - product no. 48305.Both design and ease-of-use have been prioritisedEasy to set-up, install and adjust.Maintenance free.Discreet sensor ideal for mounting in households and office environments. Control of ventilation plant based on temperature and CO2 level.Possible to adjust on the basis of CO2 level alone.Possible to use as CO2 meter and ventilation controller simultaneously.PID (proportional-integral-derivative) adjustmentTwo output control signal ranges available: 0 - 10V or 2 - 10V.If on/off operation is required, the set point relays 41204 or 41210 can be used together with the sensor. 24VDC power supply available for supply of one CO2 sensor box.If on/off operation is required, the 24V DC power supply type PowerSupply 0.1-24 E with integrated setpoint relay is ideal to use together with the sensor.

Les mer
3 625,00 kr 2 900,00 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-5 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

CO2 Sensor ES 899 Product Description: The CO2 sensor is a combined sensor and regulator with many applications. It can be used for complete control of ventilation in living spaces or as a CO2 sensor in more complicated ventilation systems. It has two 0-10V outputs that can be used independently of each other. A proportional output, based on the current CO2 level, and a regulation output, designed to control a damper or ventilation system. Room temperature can be included as a parameter in the regulation process. There is also an option to get model number 48305 with built-in communication via MODBUS protocol, which allows data retrieval from the device.Both design and user-friendliness have been emphasized:Easy setup, installation and adjustment.Maintenance-free.Discreet sensor suitable for use in residential and office environments.Controls ventilation systems based on both temperature and CO2 levels.Option to regulate based solely on CO2 levels.Can function as both a CO2 meter and ventilation controller simultaneously.PID (Proportional Integral Differential) regulation reduces constant errorsSelectable output range on the regulation signal: 0 - 10V or 2 - 10V.If it is desired to run an on/off system, our PowerSupply 0.1-24 E DC power supply with integrated setpoint relay can be advantageously used together with the sensor.Technical specifications:Color: WhiteHxWxD (mm):85*85*35Type: ES899Enclosure rating (IP): IP32

Produsent
Varenummer
2749876
Model
48304
Ean
5703471483048
