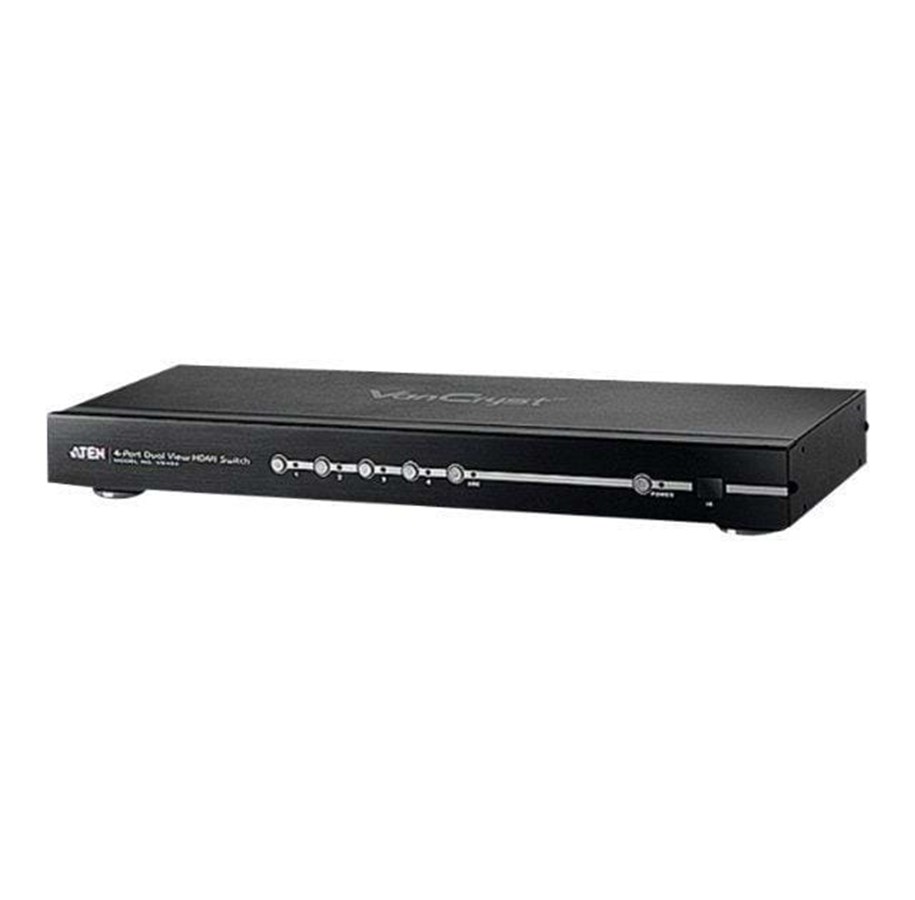

ATEN VanCryst VS482 4-Port Dual View HDMI Switch
Video/audio switch, stasjonær, rackmonterbar
3 885,00 kr
3 108,00 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, 15-17 dager til forsendelse
4-Port Dual View HDMI Switch
With more and more HDMI devices entering the Home Theater market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS482 4- Port Dual View HDMI Switch offers an easy and affordable way to add HDMI capabilities to your home theater system by allowing you to switch easily between up to four HDMI A/V sources that are connected to up to two HDMI displays.
The VS482 supports four HDMI video input sources and two HDMI output displays. It is designed for two HDTV or audio/video receiver (AVR) applications. The VS482 complies with HDMI standards, and is designed to support 3D content, as well as Audio Return Channel (ARC) function. The VS482 also offers instant switching and has OSD display controls for video, audio, system configuration and information.
| Display Connections | 2 | ||
| Connectors | Device | HDMI In | 4 x HDMI Type A Female (Black) |
| Display | HDMI Out | 2 x HDMI Type A Female (Black) | |
| Optical Audio | 1 x Toslink (Black) | ||
| Coaxial Audio | 1 x RCA (Orange) | ||
| Stereo Audio | 2 x RCA (Red / White) | ||
| RS-232 Port | 1 x DB-9 Female (Black) | ||
| Power | 1 x DC Jack | ||
| IR Extension Port | 1 x 3.5 mm phone jack | ||
| Switches | Port Switch | 4 | |
| ARC Selection | 1 | ||
| Power Button | 1 | ||
| LEDs | Selected | 4 (Green) | |
| ARC Selected | 1 (Blue) | ||
| Power | 1 (Green / Orange) | ||
| IR Control | 1 | ||
| Video | HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); WUXGA (1920 x 1200) | ||
| Power Consumption | DC 5.3V, 6.95 W | ||
| Environment | Operating Temp. | 0-50°C | |
| Storage Temp. | -20-60°C | ||
| Humidity | 0 - 80% RH, Non-condensing | ||
| Physical Properties | Housing | Metal | |
| Weight | 2.16 kg | ||
| Dimensions ( L x W x H ) | 43.72 x 15.86 x 4.40 cm | ||
- * The specification and pictures are subject to change without notice.
- * All trademarks and logos are the properties of their respective holders.
Produsent
Varenummer
2473636
Model
VS482-AT-G
Ean
4710423777750
Til produsentens hjemmeside
Produktbeskrivelse
ATEN VS482 4-Port Dual View HD Video Switch - video/audio switch - 4 porter - rackmonterbar
Enhetstype
Video/audio switch - 4 porter
Utførelse
Rackmonterbar
Undertype
HDMI
Porter
4 x HDMI
Egenskaper
HDCP-samsvar, ARC, 3D-støtte
Dimensjoner (BxDxH)
43.7 cm x 15.7 cm x 5.5 cm
Vekt
2.2 kg
Generelt
Enhetstype
Video/audio switch - 4 porter
Utførelse
Rackmonterbar
Undertype
HDMI
Porter
4 x HDMI
Maks. oppløsning
1920 x 1200 / 1080p
Egenskaper
HDCP-samsvar, ARC, 3D-støtte, HDTV-støtte
Statusindikatorer
Strøm, velg
Ekspansjon / Tilkoplinger
Grensesnitt
4 x HDMI
1 x styring (RS-232) DB-9
2 x HDMI
1 x lydutgang RCA x 2
Lyd: 1 x line-out - TOSLINK
1 x lydutgang RCA
1 x styring (RS-232) DB-9
2 x HDMI
1 x lydutgang RCA x 2
Lyd: 1 x line-out - TOSLINK
1 x lydutgang RCA
Strømforsyning
Strømenhet
Ekstern strømadapter
Diverse
Tilleggsutstyr inkludert
Fjernkontroll
Rack-monteringssett
Inkludert
Mål og vekt
Bredde
43.7 cm
Dybde
15.7 cm
Høyde
5.5 cm
Vekt
2.2 kg
Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
