Alu pex-systemer - Viega Raxofix bend 90° 40 gunmetal / glossy - 647049
Varenummer: 2901888

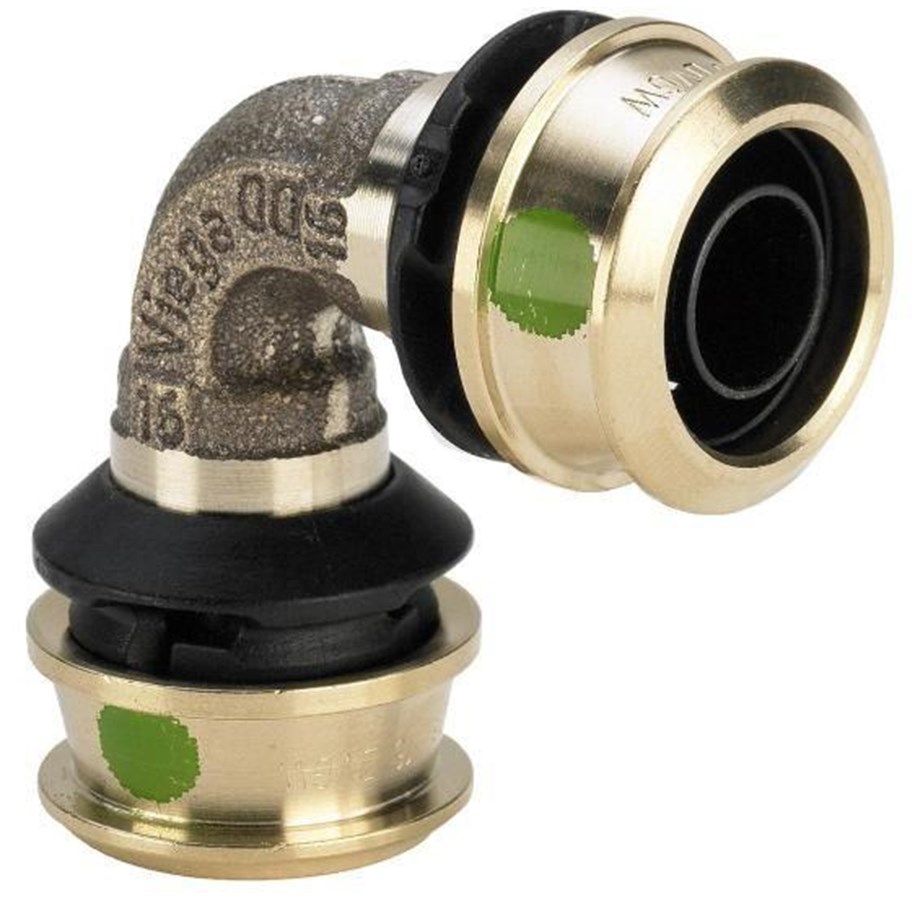

Viega Raxofix bend 90° 40 gunmetal / glossy

Flow-optimised press connector system for drinking water installations in acc. with DIN 1988 and DIN 50930-6 as well as heating installations, tested in acc. with DVGW worksheet W 534.Press connectorsSafe and fast processing without calibration of the pipe ends through O-ring-free press technology in all dimensions. In this way, widening or calibration of the pipe-ends becomes superfluous and reduces the assembly times. The interaction between aerodynamic radii and minimal cross-section narrowings ensure the lowest pressure losses in press systems for multilayer pipes. This allows a smaller dimensioning of drinking water installations and reduces the pipeline volume.SC-ConturAll sizes with SC-Contur – connections, which remain unpressed become visible when the system is filled. The SC-Contur is certified and fulfils the requirements of DVGW worksheet W 534, point 12.14, connectors with forced leakage.During leakage tests with water, Viega guarantees the identification of unpressed connections in the pressure range 0.1 MPa–0.65 MPa, in the case of a dry leakage test with compressed air or noble gases from 22 hPa–0.3 MPa.MarkingGreen dot on the press connectionPipesRaxofix PE-Xc/Al/PE-Xc•dimensionally stable, oxygen-proof in acc. with DIN 4726, greyRaxofix PE-Xc•flexible, blackDimensionsPress connectors and pipes•Raxofix-PE-Xc/Al/PE-Xc: d 16/20/25/32/40/50/63•Raxofix PE-Xc: d 16/20Areas of application PE-Xc/Al/PE-XcDrinking waterHeatingRainwaterCompressed airAreas of application PE-XcRainwaterDrinking waterUse of the system for application areas other than those described here must be agreed with Viega Service Center.Operating conditionsDrinking water installations•Operating temperature max. 70 °C•Operating pressure max. 1.0 MPaHeating installations•Operating temperature max. 80 °C•Operating pressure max. 1.0 MPaIrrelevant of the direction of flow, mixed installations are permitted.NoteThe DVGW test mark is only valid f

Les mer
621,00 kr 496,80 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 2-5 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Viega Raxofix 90° bend 40 Red Brass / polishedProduct description: Flow-optimized press fitting system for drinking water installations according to DIN 1988 and DIN 50930-6 as well as heating installations, controlled according to DVGW work sheet W 534. Press fittings ensure safe and fast processing without calibration of pipe ends using pressing technology, without O-ring, in all dimensions. This eliminates the need for expensive expansion and calibration of pipe ends, reducing installation time. The combination of flow-optimized radii and minimal cross-sectional constrictions ensures low pressure drops in press systems for multilayer pipes. This allows for smaller dimensioning of drinking water installations and reduces pipeline volume.SC-Contur: All sizes with SC-Contur - fittings that have not been pressed during installation become clearly visible when the system is filled. SC-Contur is certified and meets the requirements of DVGW work sheet W 534, section 12.14, guaranteed leak-proof when not pressed.During leak testing with water, Viega can detect unpressed fittings in the pressure range from 0.1 MPa–0.65 MPa; during dry leak testing with compressed air or inert gases from 22 hPa–0.3 MPa.Marking:• Green dot on pressing connectionPipe:Raxofix PE-Xc/Al/PE-Xc• Dimensionally stable, oxygen-tight according to DIN4726; grayRaxofix PE-Xc • Flexible; blackDimensions:Press fittings & pipes:• Raxofix PE-Xc/Al/PE-Xc: d16/20/25/32/40/50 /63 • Raxofix PE-Xc: d16 /20 Applications:PE-Xc / Al / PE-XC Drinking Water Heating Rainwater Compressed AirPE-Xc Rainwater Drinking WaterFor use in applications other than those described, contact Viega Service Center to coordinate materials.Operating conditions:Drinking water installations• Maximum operating temperature: 70°C • Maximum operating pressure: 1.0 MPa Heating installations• Maximum operating temperature: 80°C • Maximum operating pressure: 1.0 MPa Mixed installations are allowed regardless of flow direction.Notes:DVGW approval applies only to the use of Viega Raxofix fittings with Viega pipes and accessories.

Produsent
Varenummer
2901888
Model
647049
Ean
4015211647049
Materiale
Silisiumbronse
Bøyningsvinkel
90°
Diameter
40 cm
Antall per pakke
1 stykker

Egenskaper

Materiale
Silisiumbronse
Bøyningsvinkel
90°

Vekt og dimensjoner

Diameter
40 cm

Emballasjeinnhold

Antall per pakke
1 stykker
