Beslag - Viega Easytop ball valve 18 mm x 3/4" gunmetal - 747077
Varenummer: 2904354

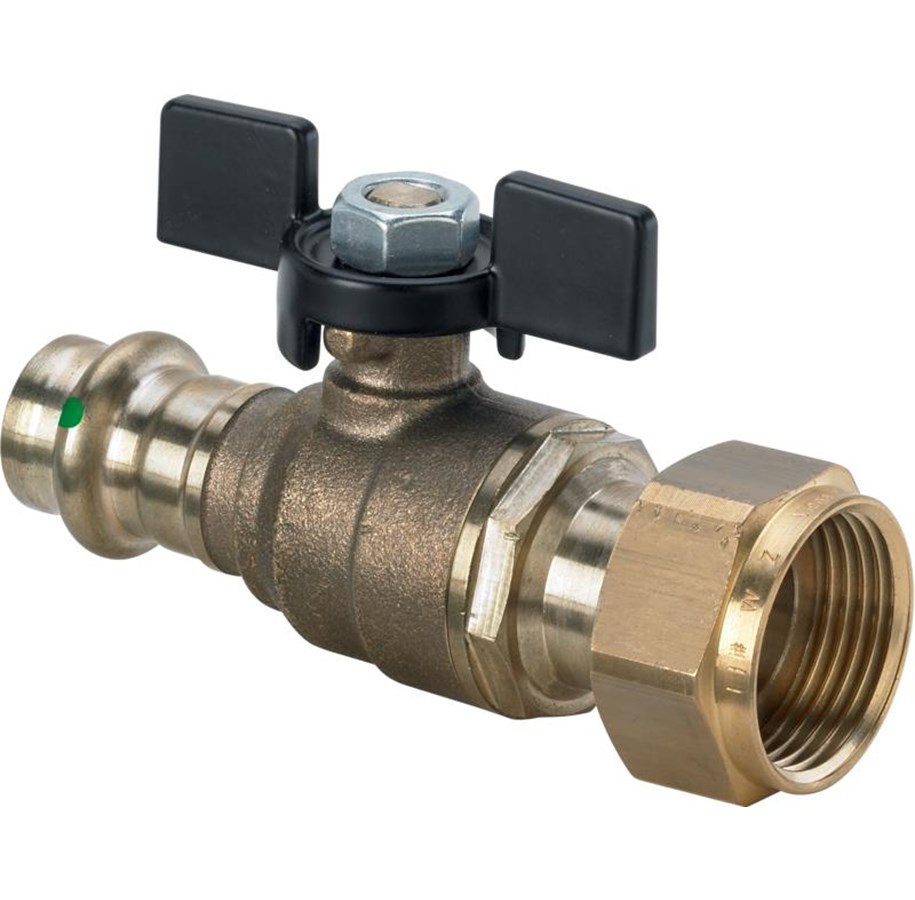

Viega Easytop ball valve 18 mm x 3/4" gunmetal

Easytop Ball valve with SC-Contur- for water- and heat meter- not suitable for Easytop Insulating shell 2275.90- press connection, G-threadComponentsValve casing gunmetal or silicium bronze according to DIN 50930-6 / DIN EN 1982, maintenance-free selector shaft, black powder-coated actuating lever made of metal, EPDM sealing element, EPDM flat seal.Technical dataoperating pressure max. 1.6 MPa (PN 16)operating temperature max. 110 °Cwith DVGW-test markDN: 15, d: 18, G: 34

Les mer
712,00 kr 569,60 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 2-4 dager til forsendelse

Easytop ball valve 18 mm x 34" red brass Product description: Easytop ball valve with SC-Contur for water and heat meter - not for Easytop insulation shell 2275.90 - press connection, G-thread. With valve housing in red brass or silicon bronze according to DIN 50930-6/DIN EN 1982, maintenance-free spindle, operating handle made of black powder-coated metal, EPDM seal, EPDM flat gasket. Technical data: maximum operating pressure of 1.6 MPa (PN16), maximum operating temperature of 110°C with DVGW approval DN:15,d:18,G:34

Produsent
Varenummer
2904354
Model
747077
Ean
4015211747077

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
