Beslag - Viega Easytop inclined seat valve 22 mm gunmetal - 756888
Varenummer: 2904384

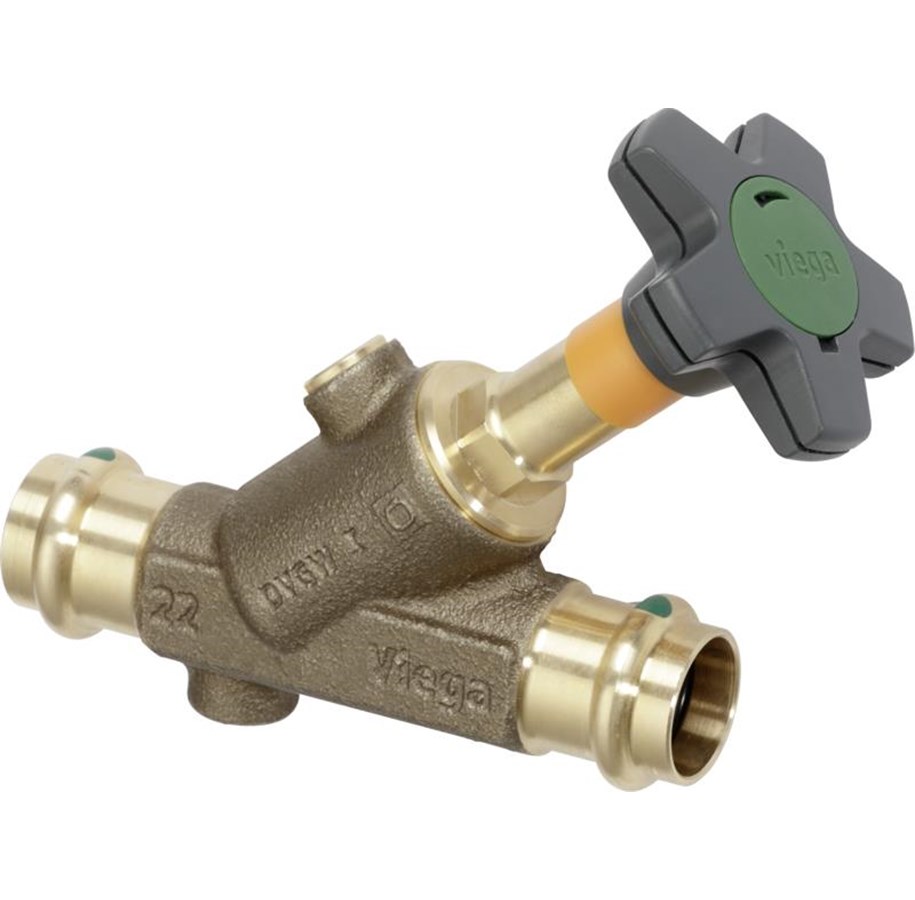

Viega Easytop inclined seat valve 22 mm gunmetal

Easytop Slanted seat valve (free-flow valve), with SC-Contur- press connectorsComponentsValve casing and top made of gunmetal or silicium bronze in accordance with DIN 50930-6 / DIN EN 1982, valve seat and valve plate unit stainless steel, spindle transmission, position indication open/closed, ergonomic handwheel and closed with medium marking green/red exchangeable, drain plug G14, EPDM sealing elements.Technical dataoperating pressure max. 1.6 MPa (PN 16)operating temperature max. 90 °Cwith DVGW-test markDN: 20, d: 22

Les mer
1 530,00 kr 1 224,00 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-4 dager til forsendelse

Easytop angled seat valve 22 mm red brass Product description: Easytop angled seat valve (upstream valve), with SC-Contur-prestop connection. With valve body and top in red brass or silicon bronze according to DIN 50930-6/DIN EN 1982, valve seat and valve in stainless steel, spindle gearing, position indication open/closed, handle ergonomically designed with interchangeable media labeling green/red., drain plug G14, EPDM gaskets. Technical data operating pressure max. 1.6 MPa (PN 16) operating temperature max. 90 °C with DVGW approval DN:20,d:22

Produsent
Varenummer
2904384
Model
756888
Ean
4015211756888
