Beslag - Viega Easytop inclined seat valve 42 mm gunmetal - 756918
Varenummer: 2904381

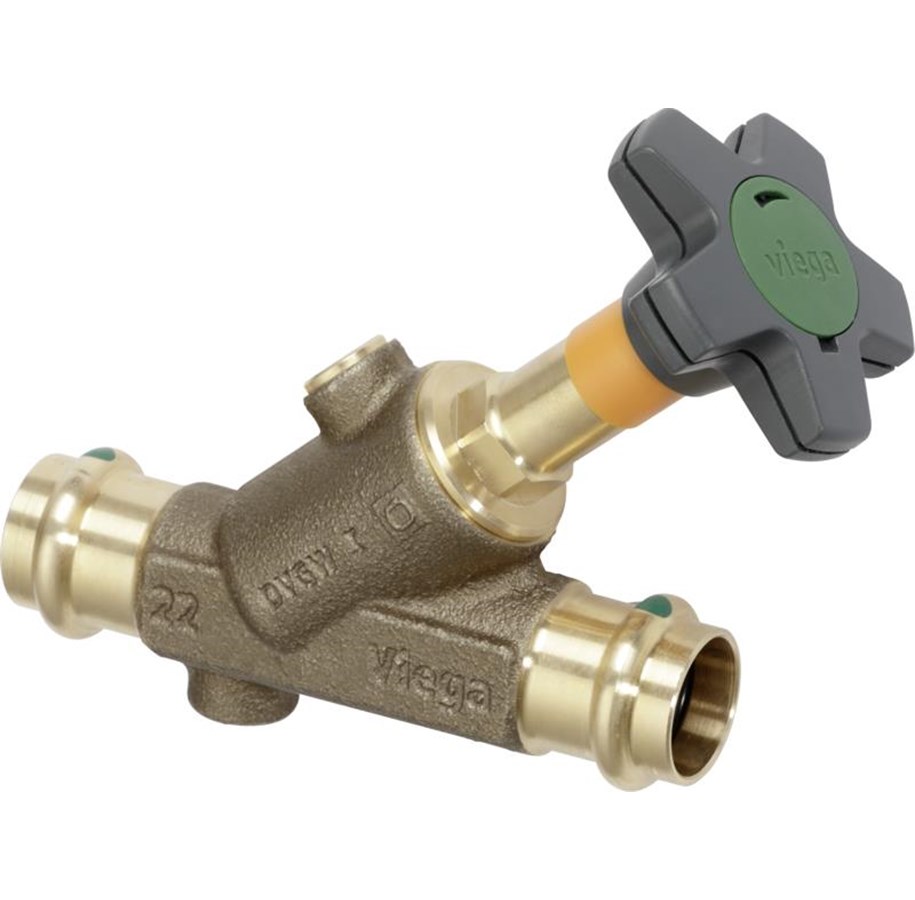

Viega Easytop inclined seat valve 42 mm gunmetal

Easytop Slanted seat valve (free-flow valve), with SC-Contur- press connectorsComponentsValve casing and top made of gunmetal or silicium bronze in accordance with DIN 50930-6 / DIN EN 1982, valve seat and valve plate unit stainless steel, spindle transmission, position indication open/closed, ergonomic handwheel and closed with medium marking green/red exchangeable, drain plug G14, EPDM sealing elements.Technical dataoperating pressure max. 1.6 MPa (PN 16)operating temperature max. 90 °Cwith DVGW-test markDN: 40, d: 42

Les mer
2 857,00 kr 2 285,60 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-4 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Easytop angled seat valve 42 mm red brass Product description: Easytop angled seat valve (upstream valve), with SC-Contur-pre-installation. With valve body and top in red brass or silicon bronze according to DIN 50930-6/DIN EN 1982, valve seat and valve in stainless steel, spindle gearing, position indication open/closed, handle ergonomically designed with interchangeable media labeling green/red., drain plug G14, EPDM gaskets. Technical data operating pressure max. 1.6 MPa (PN 16) operating temperature max. 90 °C with DVGW approval DN:40,d:42

Produsent
Varenummer
2904381
Model
756918
Ean
4015211756918
