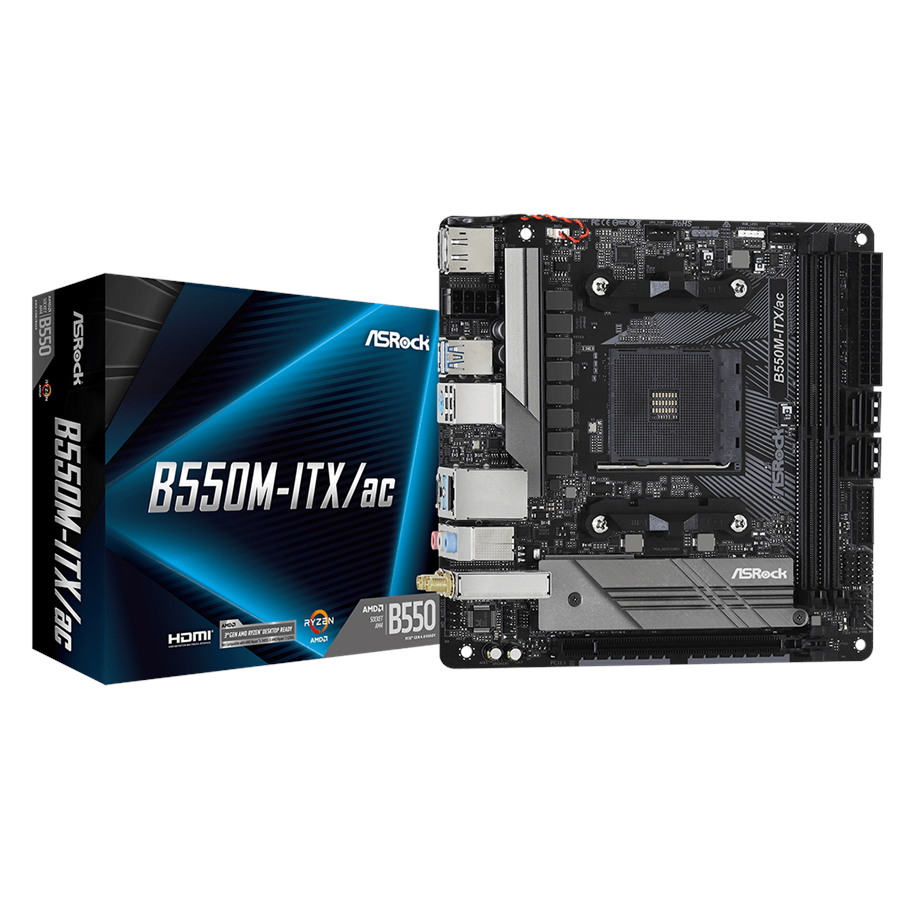

ASRock B550M-ITX/AC Hovedkort - AMD B550 - AMD AM4 socket - DDR4 RAM - Mini-ITX
Hovedkort, Mini-ITX, AMD AM4 Socket, AMD B550, PCI-Express 4.0 x16, Dual DDR4-3200 - 2 x DIMM slots, 4 x SATA-600 / 1 x M.2 NVMe PCI-Express 4.0 (2242 / 2260 / 2280), USB 3.2 Type A, DisplayPort / HDMI 2.1 forbindelse, Realtek 8111H Gigabit LAN, Intel WiFi 5 (802.11ac) & Bluetooth 4.2, AMD Vega Graphics støtte (CPU kreves), Realtek ALC887 HD Audio (8-kanaler)
Denne bundle inkluderer
På lager
1 740,00 kr
1 392,00 kr eksl. mva
Gratis frakt (privatkunde)
3 stk.
På lager - 1-3 dager til levering
Vilkår for Norton
For å aktivere abonnementet må du registrere deg på nettet og lagre faktureringsinformasjon på Norton-kontoen din. Abonnementet starter ved aktivering på nettet og er underlagt lisens- og tjenesteavtalen på GenDigital.com/legal. Fornyes automatisk med mindre fornyelsen annulleres før fakturering, på my.norton.com eller ved å kontakte Norton Support. Fornyelse faktureres årlig til prisen som er oppført på Norton.com/pricing, og du vil motta en e-post før fornyelsen. Det tas forbehold for prisendringer. Refusjon skjer i henhold til Nortons retningslinjer for refusjon på Norton.com/return-policy. Etter aktivering kan du kansellere og be om full refusjon innen 60 dager etter betaling. Innsamling, lagring og bruk av data for gjentatte betalinger er underlagt Nortons globale personvernerklæring på GenDigital.com/legal.
For å aktivere abonnementet må du registrere deg på nettet og lagre faktureringsinformasjon på Norton-kontoen din. Abonnementet starter ved aktivering på nettet og er underlagt lisens- og tjenesteavtalen på GenDigital.com/legal. Fornyes automatisk med mindre fornyelsen annulleres før fakturering, på my.norton.com eller ved å kontakte Norton Support. Fornyelse faktureres årlig til prisen som er oppført på Norton.com/pricing, og du vil motta en e-post før fornyelsen. Det tas forbehold for prisendringer. Refusjon skjer i henhold til Nortons retningslinjer for refusjon på Norton.com/return-policy. Etter aktivering kan du kansellere og be om full refusjon innen 60 dager etter betaling. Innsamling, lagring og bruk av data for gjentatte betalinger er underlagt Nortons globale personvernerklæring på GenDigital.com/legal.
The AMD BS50 chipset makes PCIe 4 0 possible foe anyone who wants higher performance, bandwidth and speed. Ready for 3rd Gen AMD Ryzen" processors and beyond.
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with an exclusive 2T2R 802.11ac WiFi (2.4G / 5G WiFi) module that supports up to 867Mbps wireless networks and Bluetooth v4.2. Experience up to 289% speed boost compared to your old WiFi!
Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen1 ports built on the rear i/o for supporting next generation USB 3.2 Gen1 devices and to deliver up to 5 Gbps data transfer rates.
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Dr. MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
ASRock Live Update & APP Shop is designed for your convenience. ASRock provides various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with an exclusive 2T2R 802.11ac WiFi (2.4G / 5G WiFi) module that supports up to 867Mbps wireless networks and Bluetooth v4.2. Experience up to 289% speed boost compared to your old WiFi!
Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen1 ports built on the rear i/o for supporting next generation USB 3.2 Gen1 devices and to deliver up to 5 Gbps data transfer rates.
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Dr. MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
ASRock Live Update & APP Shop is designed for your convenience. ASRock provides various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
RAM
-
Corsair Vengeance LPX DDR4-3600 - 32GB - CL18 - Dual Channel (2 pcs) - AMD Optim...
På lager - 1-3 dager til levering849,00 kr -
Corsair Vengeance LPX DDR4-3600 - 16GB - CL18 - Dual Channel (2 pcs) - AMD Optim...
På lager - 1-3 dager til levering512,00 kr -
Corsair Vengeance LPX DDR4-3600 - 8GB - CL18 - Single Channel (1 pcs) - AMD Opti...
På lager - 1-3 dager til levering407,00 kr
-
Corsair Vengeance LPX DDR4-3200 - 16GB - CL16 - Dual Channel (2 pcs) - AMD Optim...
På lager - 1-3 dager til levering512,00 kr -
Corsair Vengeance RGB PRO DDR4-3600 - 16GB - CL18 - Dual Channel (2 pcs) - AMD O...
Bestillingsvare, 8-10 dager til forsendelse726,00 kr -
Corsair Dominator Platinum RGB (AMD edition) DDR4-3200 - 32GB - CL16 - Quad Chan...
Bestillingsvare, 9-11 dager til forsendelse2 269,00 kr -
Corsair Dominator Platinum RGB DDR4-3600 - 64GB - CL18 - Quad Channel (4 pcs) -...
Bestillingsvare, 9-11 dager til forsendelse3 067,00 kr -
Corsair Dominator Platinum RGB DDR4-3600 - 32GB - CL18 - Quad Channel (4 pcs) -...
Bestillingsvare, 9-11 dager til forsendelse2 432,00 kr -
Corsair Dominator Platinum RGB DDR4-3600 - 16GB - CL18 - Dual Channel (2 pcs) -...
Bestillingsvare, 9-11 dager til forsendelse1 248,00 kr -
Corsair Dominator Platinum RGB DDR4-3600 - 64GB - CL16 - Quad Channel (4 pcs) -...
Bestillingsvare, 9-11 dager til forsendelse4 284,00 kr -
Corsair Vengeance LPX DDR4-3600 - 16GB - CL18 - Single Channel (1 pcs) - AMD Opt...
Fjernlager, 4-6 dager til forsendelse548,00 kr -
Corsair Dominator Platinum RGB DDR4-3600 - 16GB - CL18 - Dual Channel (2 pcs) -...
Bestillingsvare, 9-11 dager til forsendelse1 243,00 kr -
Corsair Dominator Platinum RGB (AMD edition) DDR4-3600 - 64GB - CL16 - Quad Chan...
Bestillingsvare, 9-11 dager til forsendelse4 119,00 kr -
Corsair Dominator Platinum RGB DDR4-3600 - 64GB - CL18 - Quad Channel (4 pcs) -...
Bestillingsvare, 9-11 dager til forsendelse3 063,00 kr -
Corsair Dominator Platinum RGB DDR4-3600 - 64GB - CL18 - Dual Channel (2 pcs) -...
Bestillingsvare, 9-11 dager til forsendelse2 768,00 kr -
Corsair Dominator Platinum RGB DDR4-3600 - 32GB - CL18 - Dual Channel (2 pcs) -...
Bestillingsvare, 9-11 dager til forsendelse1 760,00 kr -
Corsair Dominator Platinum RGB DDR4-3600 - 128GB - CL18 - Quad Channel (4 pcs) -...
Bestillingsvare, 9-11 dager til forsendelse5 405,00 kr -
Corsair Dominator Platinum RGB DDR4-3600 - 32GB - CL18 - Quad Channel (4 pcs) -...
Bestillingsvare, 9-11 dager til forsendelse2 417,00 kr -
Corsair Dominator Platinum RGB DDR4-3600 - 16GB - CL18 - Dual Channel (2 pcs) -...
Bestillingsvare, 9-11 dager til forsendelse1 211,00 kr -
Corsair Dominator Platinum RGB DDR4-3600 - 32GB - CL18 - Dual Channel (2 pcs) -...
Bestillingsvare, 9-11 dager til forsendelse1 934,00 kr -
Corsair Dominator Platinum RGB (AMD edition) DDR4-3600 - 32GB - CL18 - Dual Chan...
Fjernlager, 4-6 dager til forsendelse1 516,00 kr
Prosessor/CPU
-
AMD Ryzen 5 3600 Wraith Stealth Prosessor/CPU - 6 kjerner - 3.6 GHz - AMD AM4 -...
På lager - 1-3 dager til levering1 090,00 kr
Produsent
Varenummer
2861102
Model
90-MXBDH0-A0UAYZ
Ean
4710483931727
Til produsentens hjemmeside
Produktbeskrivelse
ASRock B550M-ITX/ac - hovedkort - mini-ITX - Socket AM4 - AMD B550
Produkttype
Hovedkort - mini-ITX
Brikkesett type
AMD B550
Prosessorsokkel
1 x Socket AM4
Kompatible prosessorer
Ryzen (støtter 3.-generasjons Ryzen and New Generation Ryzen med Radeon Graphics)
Maks. RAM-størrelse
64 GB
Støttet RAM
2 DIMM-spor - DDR4, ikke-ECC, ECC (drift i ikke-ECC-modus), ikke-bufret
Lagerporter
4 x SATA-600 (RAID), 1 x M.2
USB/FireWire-porter
1 x USB-C Gen 1 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headere)
Maks allokert RAM-størrelse
2 GB
Lyd
HD-lyd (8-kanalers)
LAN
Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac
Generelt
Produkttype
Hovedkort - mini-ITX
Brikkesett type
AMD B550
Prosessorsokkel
Socket AM4
Maks antall prosessorer
1
Kompatible prosessorer
Ryzen (støtter 3.-generasjons Ryzen and New Generation Ryzen med Radeon Graphics)
Støttet RAM
Maks størrelse
64 GB
Teknologi
DDR4
Bussklokke
2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.), 4733 MHz (O.C.), 4466 MHz (O.C.)
Støttet RAM-integritetskontroll
Ikke-ECC, ECC (drift i ikke-ECC-modus)
Registrert eller bufret
Ikke-bufret
Egenskaper
Dobbeltkanalsminnearkitektur, AMD Memory Profile (AMP), støttede ECC-moduler kjører i ikke-ECC-modus
Grafikk
Maks allokert RAM-størrelse
2 GB
Lyd
Type
HD-lyd (8-kanalers)
Audio Codec
Realtek ALC887
Tilpassede standarder
High Definition Audio
LAN
Nettverkskontroller
Realtek RTL8111H
Nettverksgrensesnitt
Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac
Ekspansjon / Tilkoplinger
Utvidelsesspor
1 x CPU
2 x 288-pins DIMM
1 x PCIe 4.0 x16 (PCIe 4.0 x16-modus (Ryzen-serie CPU-er Matisse); PCIe 3.0 x16-modus (Ryzen-serie APUs))
1 x M.2 socket (Key E)
2 x 288-pins DIMM
1 x PCIe 4.0 x16 (PCIe 4.0 x16-modus (Ryzen-serie CPU-er Matisse); PCIe 3.0 x16-modus (Ryzen-serie APUs))
1 x M.2 socket (Key E)
Lagergrensesnitt
SATA-600 -kontakter: 4 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -kontakter: 1 x M.2
SATA-600 / PCIe 4.0 -kontakter: 1 x M.2
Grensesnitt
1 x PS/2-tastatur / -mus
1 x LAN (Gigabit Ethernet)
1 x DisplayPort
1 x HDMI
2 x USB 2.0
3 x USB 3.2 Gen 1
1 x lydinnlinje - minijakk
1 x lydutlinje - minijakk
1 x mikrofon - minijakk
1 x USB-C Gen1
1 x LAN (Gigabit Ethernet)
1 x DisplayPort
1 x HDMI
2 x USB 2.0
3 x USB 3.2 Gen 1
1 x lydinnlinje - minijakk
1 x lydutlinje - minijakk
1 x mikrofon - minijakk
1 x USB-C Gen1
Interne overflater
2 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x lyd - header
2 x USB 3.2 Gen 1 - header
1 x lyd - header
Strømkontakter
24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt
Egenskaper
BIOS Type
AMI
BIOS-egenskaper
JumperFree, SMBIOS 2.3-støtte, UEFI BIOS, ACPI 5,1 støtte
Overvåking av maskinvare
CPU-kjernetemperatur, chassis-temperatur, viftehastighet for CPU, viftehastighet for chassis, systemspenning, Kjernespenning CPU
Sov/Våkne
Wake on LAN (WOL)
Maskinvarefunksjoner
8 Phase Power Design, ASRock Instant Flash, HDCP-samsvar, 15µ Gold Contact, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, Sapphire Black PCB, Dr.MOS MOSFET, ASRock Live Update, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2
Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
