Hovedkort - ASRock B550M PRO4 Hovedkort - AMD B550 - AMD AM4 socket - DDR4 RAM - Micro-ATX - 90-MXBDK0-A0UAYZ
Varenummer: 2861099
90-MXBDK0-A0UAYZ
90-MXBDK0-A0UAYZ
90-MXBDK0-A0UAYZ
90-MXBDK0-A0UAYZ

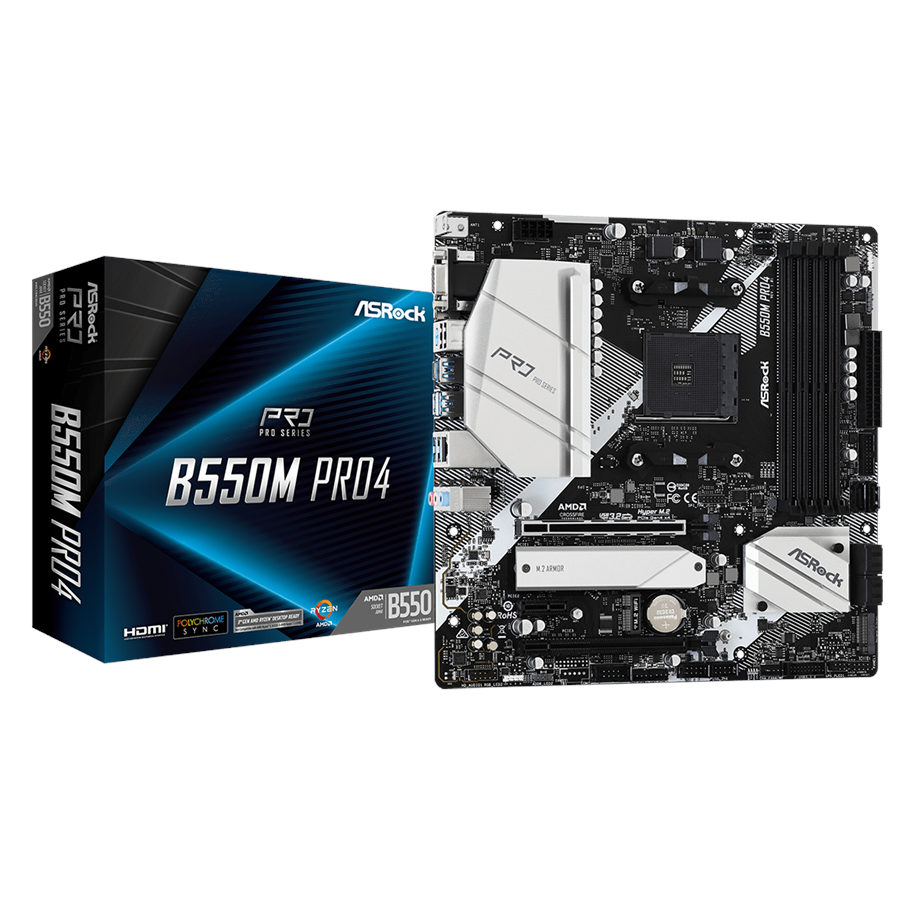

ASRock B550M PRO4 Hovedkort - AMD B550 - AMD AM4 socket - DDR4 RAM - Micro-ATX

Hovedkort, Micro-ATX, AMD AM4 Socket, AMD B550, PCI-Express 4.0 x16, Dual DDR4-3200 - 4 x DIMM slots, 6 x SATA-600 / 1 x M.2 NVMe PCI-Express 3.0 & 1 x M.2 NVMe PCI-Express 4.0 (2242 / 2260 / 2280), USB 3.2 Type A & C, D-Sub / DisplayPort / HDMI 2.1 forbindelse, Realtek 8111H Gigabit LAN, AMD Vega Graphics støtte (CPU kreves), Realtek ALC1200 HD Audio (8-kanaler), støtter CrossFireX

Denne bundle inkluderer

Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk

Verdt 490,00 kr Gyldig fra 07-10-2024 00:00 - så lenge lageret rekker
På lager
1 342,00 kr 1 073,60 kr eksl. mva
Gratis frakt (privatkunde)
8 stk. På lager - 1-3 dager til levering
Vilkår for Norton

For å aktivere abonnementet må du registrere deg på nettet og lagre faktureringsinformasjon på Norton-kontoen din. Abonnementet starter ved aktivering på nettet og er underlagt lisens- og tjenesteavtalen på GenDigital.com/legal. Fornyes automatisk med mindre fornyelsen annulleres før fakturering, på my.norton.com eller ved å kontakte Norton Support. Fornyelse faktureres årlig til prisen som er oppført på Norton.com/pricing, og du vil motta en e-post før fornyelsen. Det tas forbehold for prisendringer. Refusjon skjer i henhold til Nortons retningslinjer for refusjon på Norton.com/return-policy. Etter aktivering kan du kansellere og be om full refusjon innen 60 dager etter betaling. Innsamling, lagring og bruk av data for gjentatte betalinger er underlagt Nortons globale personvernerklæring på GenDigital.com/legal.

The AMD BS50 chipset mikes PCIe 4 0 possible for anyone who wants higher performance, bandwidth and speed. Ready for 3rd Gen AMO Ryzen" processors and beyond.Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include extra anchor points, stronger latch, ensure signal stability, make sure heavy graphics cards to be well-installed.This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. Plus the HDMI port supports 4K resolution.Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.ASRock Live Update & APP Shop is designed for your convenience. ASRock provides various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

RAM

Prosessor/CPU

Produsent
Varenummer
2861099
Model
90-MXBDK0-A0UAYZ
Ean
4710483931598
Til produsentens hjemmeside
Produktbeskrivelse
ASRock B550M Pro4 - hovedkort - micro ATX - Socket AM4 - AMD B550
Produkttype
Hovedkort - micro ATX
Brikkesett type
AMD B550
Prosessorsokkel
1 x Socket AM4
Kompatible prosessorer
Ryzen (støtter 3.-generasjons Ryzen and New Generation Ryzen med Radeon Graphics)
Maks. RAM-størrelse
128 GB
Støttet RAM
4 DIMM-spor - DDR4, ikke-ECC, ECC (drift i ikke-ECC-modus), ikke-bufret
Lagerporter
6 x SATA-600 (RAID), 2 x M.2
USB/FireWire-porter
1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headere)
Lyd
HD-lyd (8-kanalers)
LAN
Gigabit Ethernet

Generelt

Produkttype
Hovedkort - micro ATX
Brikkesett type
AMD B550
Prosessorsokkel
Socket AM4
Maks antall prosessorer
1
Kompatible prosessorer
Ryzen (støtter 3.-generasjons Ryzen and New Generation Ryzen med Radeon Graphics)

Støttet RAM

Maks størrelse
128 GB
Teknologi
DDR4
Bussklokke
2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.), 4733 MHz (O.C.), 4466 MHz (O.C.)
Støttet RAM-integritetskontroll
Ikke-ECC, ECC (drift i ikke-ECC-modus)
Registrert eller bufret
Ikke-bufret
Egenskaper
Dobbeltkanalsminnearkitektur, AMD Memory Profile (AMP), støttede ECC-moduler kjører i ikke-ECC-modus

Lyd

Type
HD-lyd (8-kanalers)
Audio Codec
Realtek ALC1200
Tilpassede standarder
High Definition Audio, Premium Blu-ray audiostøtte

LAN

Nettverkskontroller
Realtek RTL8111H
Nettverksgrensesnitt
Gigabit Ethernet

Ekspansjon / Tilkoplinger

Utvidelsesspor
1 x CPU
4 x 288-pins DIMM
1 x PCIe 4.0 x16 (PCIe 4.0 x16-modus (Ryzen-serie CPU-er Matisse); PCIe 3.0 x16-modus (Ryzen-serie APUs))
1 x PCIe 3.0 x16 (x4-modus)
1 x PCIe 3.0 x1
1 x M.2 socket (2230 M.2 Key E-spor)
Lagergrensesnitt
SATA-600 -kontakter: 6 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 3.0 -kontakter: 1 x M.2
PCIe 4.0 -kontakter: 1 x M.2
Grensesnitt
1 x PS/2-tastatur / -mus
1 x LAN (Gigabit Ethernet)
1 x VGA
1 x DisplayPort
1 x HDMI
2 x USB 2.0
4 x USB 3.2 Gen 1
1 x lydinnlinje - minijakk
1 x lydutlinje - minijakk
1 x mikrofon - minijakk
1 x USB 3.2 Gen 2
1 x USB-C Gen2
Interne overflater
4 x USB 2.0 - header
4 x USB 3.2 Gen 1 - header
1 x seriell - header
1 x lyd - header
Strømkontakter
24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt

Egenskaper

BIOS Type
AMI
BIOS-egenskaper
JumperFree, SMBIOS 2.3-støtte, UEFI BIOS, ACPI 5,1 støtte
Overvåking av maskinvare
CPU-kjernetemperatur, chassis-temperatur, viftehastighet for CPU, viftehastighet for chassis, systemspenning, Kjernespenning CPU
Sov/Våkne
Wake on LAN (WOL)
Maskinvarefunksjoner
8 Phase Power Design, ASRock Instant Flash, HDCP-samsvar, 15µ Gold Contact, AMD CrossFireX-teknologistøtte, AMD Quad CrossFireX-teknologistøtte, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, Sapphire Black PCB, XXL Aluminum Alloy Heatsink, Nahimic Audio Enhacer, ASRock Live Update, Premium 50A Power Choke, PCB Isolate Shielding, 2oz Copper PCB, ASRock POST Status Checker (PSC), ASRock Full Coverage M.2 Heatsink, ASRock Steel Slot Gen4, ASRock Hyper M.2

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
