Hovedkort - ASUS PRIME B550M-A Hovedkort - AMD B550 - AMD AM4 socket - DDR4 RAM - Micro-ATX - 90MB14I0-M0EAY0
Varenummer: 2858694
90MB14I0-M0EAY0
90MB14I0-M0EAY0
90MB14I0-M0EAY0
90MB14I0-M0EAY0
90MB14I0-M0EAY0

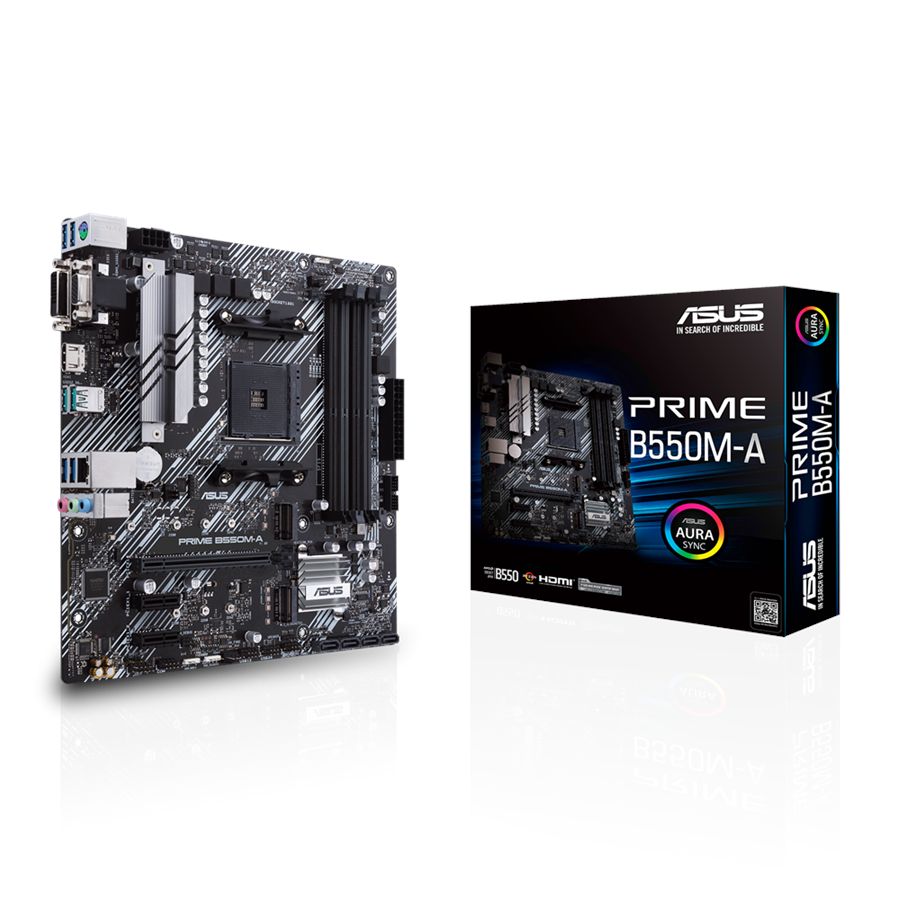

ASUS PRIME B550M-A Hovedkort - AMD B550 - AMD AM4 socket - DDR4 RAM - Micro-ATX

Hovedkort, Micro-ATX, AMD AM4 Socket, AMD B550, PCI-Express 4.0 x16, Dual DDR4-3200 - 4 x DIMM slots, 6 x SATA-600 / 1 x M.2 NVMe PCI-Express 3.0 & 1 x M.2 NVMe PCI-Express 4.0 (2242 / 2260 / 2280), USB 3.2 Type A, D-Sub / DVI-D / HDMI 2.1 forbindelse, Realtek 8111H Gigabit LAN, AMD Vega Graphics støtte (CPU kreves), Realtek ALC887 HD Audio (8-kanaler)

Les mer
På lager
1 199,00 kr 959,20 kr eksl. mva
Gratis frakt (privatkunde)
+15 stk. På lager - 1-3 dager til levering

PRIME B550M-A

Zenbook 14

ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.


• AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors

• Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+

• Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A

• Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware

Zenbook 14

VRM Heatsink and Thermal Pads

A VRM heatsink with underneath thermal pad improves heat transfer from the MOSFETs and chokes for better cooling performance.

Zenbook 14

Cooler by Design

Prime B550 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

Multiple Temperature Sources: Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

4-Pin PWM/DC Fan: Each onboard chassis fan header supports PWM and DC mode.

Zenbook 14

PCIe 4.0 M.2(up to 64 Gbps) - Achieve speed with onboard M.2

PCIe 4.0 M.2 Slot supports up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.

Zenbook 14

USB 3.2 Gen 2 Type-A

Numerous USB ports support high-end rigs loaded with peripherals, including two rear-panel USB Type-A connectors with fast USB 3.2 Gen 2 connectivity for compatible cases.

Zenbook 14

Addressable Gen 2 RGB Header

The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.

Prosessor/CPU

RAM

Vis flere

Produsent
Varenummer
2858694
Model
90MB14I0-M0EAY0
Ean
4718017755528
Til produsentens hjemmeside
Produktbeskrivelse
ASUS PRIME B550M-A - hovedkort - micro ATX - Socket AM4 - AMD B550
Produkttype
Hovedkort - micro ATX
Brikkesett type
AMD B550
Prosessorsokkel
1 x Socket AM4
Kompatible prosessorer
Ryzen (støtter 3.-generasjons Ryzen)
Maks. RAM-størrelse
128 GB
Støttet RAM
4 DIMM-spor - DDR4, ECC, ikke-bufret
Lagerporter
4 x SATA-600 (RAID), 2 x M.2
USB/FireWire-porter
2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headere)
Lyd
HD-lyd (8-kanalers)
LAN
Gigabit Ethernet

Generelt

Produkttype
Hovedkort - micro ATX
Brikkesett type
AMD B550
Prosessorsokkel
Socket AM4
Maks antall prosessorer
1
Kompatible prosessorer
Ryzen (støtter 3.-generasjons Ryzen)

Støttet RAM

Maks størrelse
128 GB
Teknologi
DDR4
Bussklokke
2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 3200 MHz
Støttet RAM-integritetskontroll
ECC
Registrert eller bufret
Ikke-bufret

Lyd

Type
HD-lyd (8-kanalers)
Audio Codec
Realtek ALC887
Tilpassede standarder
High Definition Audio

LAN

Nettverkskontroller
Realtek RTL8111H
Nettverksgrensesnitt
Gigabit Ethernet

Ekspansjon / Tilkoplinger

Utvidelsesspor
1 x CPU
4 x 288-pins DIMM
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
Lagergrensesnitt
SATA-600 -kontakter: 4 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -kontakter: 1 x M.2
SATA-600 / PCIe 3.0 -kontakter: 1 x M.2
Grensesnitt
1 x VGA
1 x DVI-D
1 x LAN (Gigabit Ethernet)
4 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2
1 x lydinnlinje - minijakk
1 x lydutlinje - minijakk
1 x mikrofon - minijakk
1 x PS/2-tastatur / -mus
1 x HDMI
Interne overflater
4 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x SPDIF-utgang - header
1 x lyd - header
1 x seriell - header
1 x høyttaler - header
Strømkontakter
24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt

Egenskaper

BIOS Type
AMI
BIOS-egenskaper
UEFI BIOS, ASUS EZ Flash 3
Sov/Våkne
Wake on LAN (WOL)
Maskinvarefunksjoner
Jakk-retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, lydjakkpåvisningsteknologi, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGuard, ASUS Overvoltage Protection, Lighting Control, ASUS 5X Protection III, ASUS SafeSlot Core, ASUS Aura Sync, Armoury Crate

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
