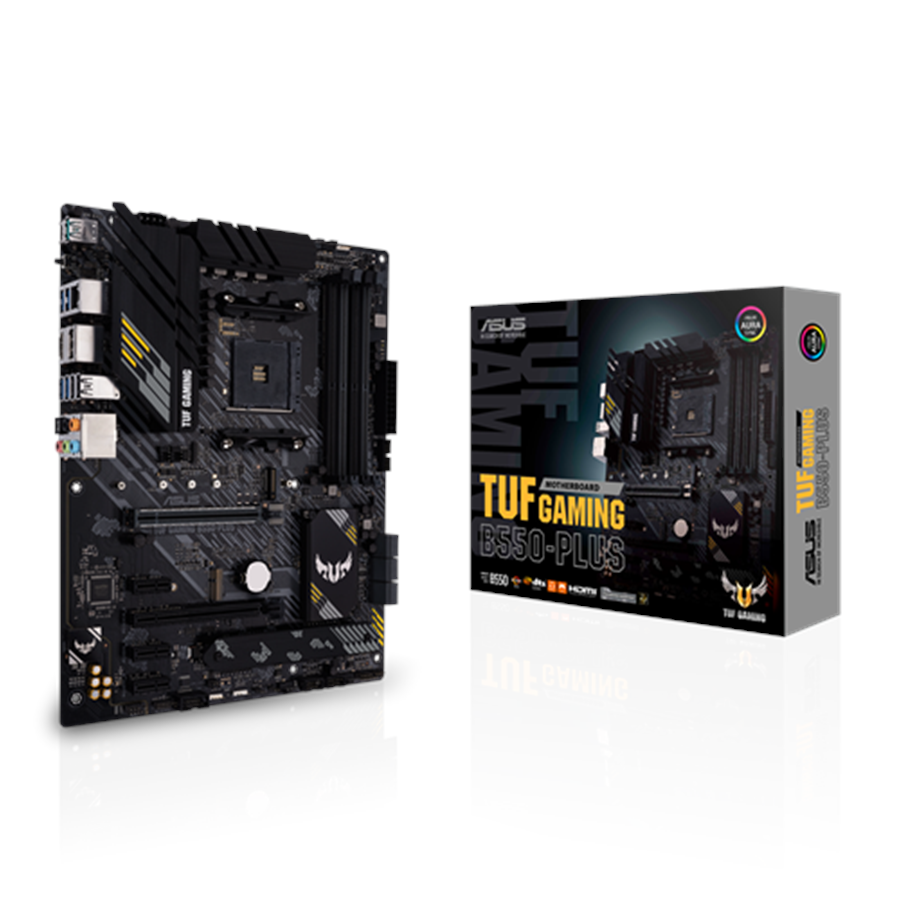

Hovedkort - ASUS TUF GAMING B550-PLUS Hovedkort - AMD B550 - AMD AM4 socket - DDR4 RAM - ATX - 90MB14G0-M0EAY0
Varenummer: 2858704
90MB14G0-M0EAY0
90MB14G0-M0EAY0
90MB14G0-M0EAY0
90MB14G0-M0EAY0
90MB14G0-M0EAY0

ASUS TUF GAMING B550-PLUS Hovedkort - AMD B550 - AMD AM4 socket - DDR4 RAM - ATX

Hovedkort, ATX, AMD AM4 Socket, AMD B550, 2 x PCI-Express 4.0 x16, Dual DDR4-3200 - 4 x DIMM slots, 6 x SATA-600 / 1 x M.2 NVMe PCI-Express 3.0 & 1 x M.2 NVMe PCI-Express 4.0 (2242 / 2260 / 2280), USB 3.2 Type A & C, DisplayPort / HDMI 2.1 forbindelse, Realtek 8125B 2.5 Gigabit LAN, AMD Vega Graphics støtte (CPU kreves), Realtek ALC1220A HD Audio (8-kanaler), støtter CrossFireX - ASUS AURA innebygd, RGB-lys i hovedkortet!

Denne bundle inkluderer

Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk

Verdt 490,00 kr Gyldig fra 07-10-2024 00:00 - så lenge lageret rekker
1 726,00 kr 1 380,80 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-5 dager til forsendelse (Forventet på eget lager 14.11.2024)
Vilkår for Norton

For å aktivere abonnementet må du registrere deg på nettet og lagre faktureringsinformasjon på Norton-kontoen din. Abonnementet starter ved aktivering på nettet og er underlagt lisens- og tjenesteavtalen på GenDigital.com/legal. Fornyes automatisk med mindre fornyelsen annulleres før fakturering, på my.norton.com eller ved å kontakte Norton Support. Fornyelse faktureres årlig til prisen som er oppført på Norton.com/pricing, og du vil motta en e-post før fornyelsen. Det tas forbehold for prisendringer. Refusjon skjer i henhold til Nortons retningslinjer for refusjon på Norton.com/return-policy. Etter aktivering kan du kansellere og be om full refusjon innen 60 dager etter betaling. Innsamling, lagring og bruk av data for gjentatte betalinger er underlagt Nortons globale personvernerklæring på GenDigital.com/legal.

TUF Gaming B550-Plus

Zenbook 14

• AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors

• Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and Digi+ VRM for maximum durability

• Comprehensive cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility

• Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support

• Made for online gaming: 2.5 Gb Ethernet, M.2 slot (Key E) for Wi-Fi module, TUF LANGuard and Turbo LAN technology

• AI noise-canceling microphone: provides crystal-clear in-game voice communication


Zenbook 14

DURABLE. STABLE. RELIABLE.

TUF Gaming B550-Plus distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.


Zenbook 14

POWER DESIGN

From digital power control and an array of power stages to military-grade TUF components, TUF Gaming B550-Plus is armed to tame the latest 10th Gen Intel® CPUs.

1. DrMOS - The onboard VRM of TUF Gaming B550-Plus utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and driver into a single package, delivering the power and efficiency that 3rd Gen AMD Ryzen™ Processors demand.

2. Stack Cool 3+ - 2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds.

3. ProCool Connector - Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.

4. TUF Components - Certified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability.

5. Digi+ VRM - The integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.


Zenbook 14

Cooler by Design

1. VRM heatsink - A large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation.

1. Thermal pad - High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.

2. M.2 Heatsink - The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.


Zenbook 14

AI NOISE-CANCELING MICROPHONE

AI Noise-Canceling Microphone software is exclusively featured on ASUS motherboards and supports 3.5 mm, USB, or Bluetooth headsets. The utility leverages a massive deep-learning database to preserve the sound of your voice while eliminating distracting keyboard clatter, mouse clicks, and other forms of environmental noise. And it only places a slight load on the CPU, ensuring minimal impact on gaming performance.

*Actual performance varies by configuration


Zenbook 14

GAMING AUDIO

Exclusive Realtek S1200A codec - The unique audio codec designed in close collaboration with Realtek for TUF Gaming Z490 series motherboards features an unprecedented 108 dB signal-to-noise ratio for the stereo line out and a 103dB SNR for the line in, providing pristine audio quality.

DTS® Custom for gaming headsets - Hone your battle skills with exclusive DTS® Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets ― Aerial, Soundscape, and Tactical ― for different genres, you'll have a distinct advantage in every game.


Zenbook 14

PCIe 4.0 M.2 (up to 64 Gbps)

TUF Gaming B550 series motherboards support PCIe 4.0 M.2 slot and provides NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.


Zenbook 14

USB 3.2 Gen 2 Type-A & Type-C

Numerous USB ports support gaming rigs loaded with peripherals, including a USB Type-A and a Type-C connectors with fast USB 3.2 Gen 2 connectivity for compatible cases.


Zenbook 14

Thunderbolt™ 3 support

An integrated Thunderbolt™ 3 header supports up to 40 Gbps of aggregate interface bandwidth. One Thunderbolt 3 port can support up to six devices in a daisy-chain, and provide up to 15 watts of power to fast-charge devices.


Zenbook 14

M.2 Slot (key E) for Wi-Fi module

TUF Gaming B550-Plus comes along with an M.2 (Key E) slot which gives you the flexibility to upgrade your networking solution by installing an M.2 Wi-Fi/Bluetooth module.


Zenbook 14

Outshine the Competition

A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.

A. Adressable Gen 2 RGB Header

B. RGB Header

SafeSlot - SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance.

ESD Guards - ESD Guards prolong the life of components while preventing damage from electrostatic discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV.

TUF LANGuard - TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

DRAM overvoltage protection - Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-steel back I/O panel - TUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels.


Zenbook 14

TUF GAMING ALLIANCE - Build with Confidence

TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.


RAM

Prosessor/CPU

Produsent
Varenummer
2858704
Model
90MB14G0-M0EAY0
Ean
4718017749435
Til produsentens hjemmeside
Produktbeskrivelse
ASUS TUF GAMING B550-PLUS - hovedkort - ATX - Socket AM4 - AMD B550
Produkttype
Hovedkort - ATX
Brikkesett type
AMD B550
Prosessorsokkel
1 x Socket AM4
Kompatible prosessorer
Ryzen (støtter 3.-generasjons Ryzen)
Maks. RAM-størrelse
128 GB
Støttet RAM
4 DIMM-spor - DDR4 ikke-bufret
Lagerporter
6 x SATA-600 (RAID), 2 x M.2
USB/FireWire-porter
1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headere)
Lyd
HD-lyd (8-kanalers)
LAN
2.5 Gigabit Ethernet

Generelt

Produkttype
Hovedkort - ATX
Brikkesett type
AMD B550
Prosessorsokkel
Socket AM4
Maks antall prosessorer
1
Kompatible prosessorer
Ryzen (støtter 3.-generasjons Ryzen)

Støttet RAM

Maks størrelse
128 GB
Teknologi
DDR4
Bussklokke
2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz
Registrert eller bufret
Ikke-bufret

Lyd

Type
HD-lyd (8-kanalers)
Audio Codec
Realtek ALCS1200A
Tilpassede standarder
High Definition Audio, DTS Custom

LAN

Nettverkskontroller
Realtek RTL8125B
Nettverksgrensesnitt
2.5 Gigabit Ethernet

Ekspansjon / Tilkoplinger

Utvidelsesspor
1 x CPU
4 x 288-pins DIMM
1 x PCIe 4.0 x16
3 x PCIe 3.0 x1
1 x PCIe 3.0 x16 (x4-modus (x2-modus hvis PCI Express 3.0 x1-sporet er besatt)
1 x M.2 socket (Key E)
Lagergrensesnitt
SATA-600 -kontakter: 6 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -kontakter: 1 x M.2
SATA-600 / PCIe 3.0 -kontakter: 1 x M.2
Grensesnitt
1 x DisplayPort
1 x HDMI
1 x LAN (2.5Gigabit Ethernet)
4 x USB 3.2 Gen 1
1 x USB 3.2 Gen 2
1 x lydinnlinje - minijakk
1 x lydutlinje - minijakk
1 x mikrofon - minijakk
1 x TOSLINK
1 x USB-C Gen2
2 x USB 2.0
1 x lydutlinje (bakre) - minijakk
1 x lydutlinje (senter/subbasshøyttaler) - minijakk
Interne overflater
4 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x lyd - header
1 x seriell - header
Strømkontakter
24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt

Egenskaper

BIOS Type
AMI
BIOS-egenskaper
BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3
Sov/Våkne
Wake on LAN (WOL)
Maskinvarefunksjoner
Jakk-retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, lydjakkpåvisningsteknologi, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, AMD CrossFireX-teknologistøtte, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), Turbo LAN, ASUS Fan Xpert 2+, TUF LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot, ASUS ProCool, ASUS TUF Protection, ASUS Aura Sync, Armoury Crate
