PEX-systemer - Viega Connection screw PB 16 mm x 3/4" gunmetal - 688431
Varenummer: 2901902

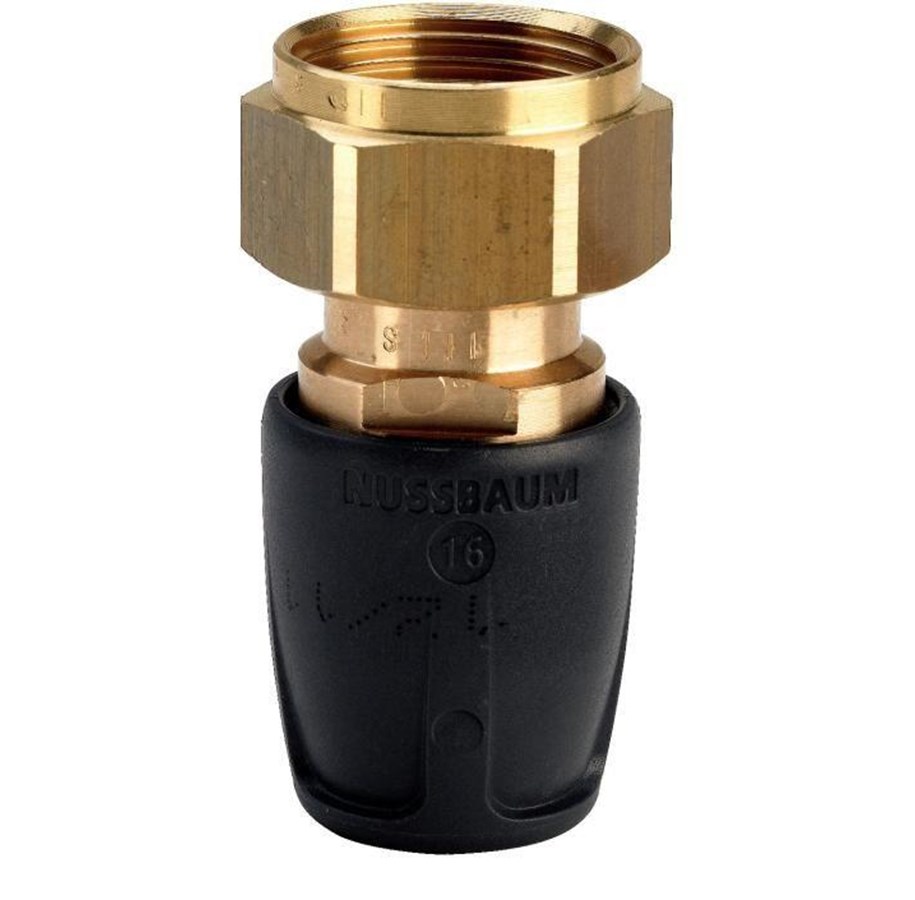

Viega Connection screw PB 16 mm x 3/4" gunmetal

Flow-optimised press connector system for drinking water installations in acc. with DIN 1988 and DIN 50930-6 as well as heating installations, tested in acc. with DVGW worksheet W 534.Press connectorsSafe and fast processing without calibration of the pipe ends through O-ring-free press technology in all dimensions. In this way, widening or calibration of the pipe-ends becomes superfluous and reduces the assembly times. The interaction between aerodynamic radii and minimal cross-section narrowings ensure the lowest pressure losses in press systems for multilayer pipes. This allows a smaller dimensioning of drinking water installations and reduces the pipeline volume.SC-ConturAll sizes with SC-Contur – connections, which remain unpressed become visible when the system is filled. The SC-Contur is certified and fulfils the requirements of DVGW worksheet W 534, point 12.14, connectors with forced leakage.During leakage tests with water, Viega guarantees the identification of unpressed connections in the pressure range 0.1 MPa–0.65 MPa, in the case of a dry leakage test with compressed air or noble gases from 22 hPa–0.3 MPa.MarkingGreen dot on the press connectionPipesRaxofix PE-Xc/Al/PE-Xc•dimensionally stable, oxygen-proof in acc. with DIN 4726, greyRaxofix PE-Xc•flexible, blackDimensionsPress connectors and pipes•Raxofix-PE-Xc/Al/PE-Xc: d 16/20/25/32/40/50/63•Raxofix PE-Xc: d 16/20Areas of application PE-Xc/Al/PE-XcDrinking waterHeatingRainwaterCompressed airAreas of application PE-XcRainwaterDrinking waterUse of the system for application areas other than those described here must be agreed with Viega Service Center.Operating conditionsDrinking water installations•Operating temperature max. 70 °C•Operating pressure max. 1.0 MPaHeating installations•Operating temperature max. 80 °C•Operating pressure max. 1.0 MPaIrrelevant of the direction of flow, mixed installations are permitted.NoteThe DVGW test mark is only valid f

Les mer
222,00 kr 177,60 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 3-5 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT
FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

For å få levert varene dine før jul, må du bestille innen 17. desember kl. 14. Dette gjelder for postnummer 0 til 3999, varene må være på lager og leveres av PostNord. Bor du på et postnummer høyere enn 3999, må du bestille innen 16. desember kl. 14.

Viega Connection Fitting PB 16 x 3/4 Red Brass / Blank Product Description: Flow-optimized press fitting system for drinking water installations according to DIN 1988 and DIN 50930-6 as well as heating installations, controlled according to DVGW work sheet W 534. Press fittings Safe and fast processing without calibration of pipe ends using pressing technology, without O-ring, in all dimensions. This makes expensive expansion and calibration of pipe ends unnecessary and reduces installation time. The combination of flow-optimized radii and minimal cross-sectional constrictions ensures low pressure losses in press systems for multilayer pipes. This allows for smaller dimensioning of drinking water installations and reduces pipeline volume.SC-ConturAll sizes with SC-Contur - fittings that have not been pressed during installation become clearly visible when the system is filled. SC-Contur is certified and meets the requirements of DVGW work sheet W 534, point 12.14, guaranteed leak-proof when not pressed.During leak tests with water, Viega can detect unpressed fittings in the pressure range from 0.1 MPa–0.65 MPa; during dry leak tests with compressed air or inert gases from 22 hPa–0.3 MPa.Labeling•Green dot on the pressing connectionPipeRaxofix-PE-Xc/Al/PE-Xc•dimensionally stable, oxygen-tight according to DIN4726 grayRaxofix PE-Xc•flexible blackDimensionsPress fittings and pipes•Raxofix PE-Xc/Al/PE-Xc: d16/20/25/32 /40 /50 /63 • Raxofix PE-Xc: d16 /20Applications PE-Xc/aluminum compositeDrinking WaterHeatingRainwaterCompressed AirApplications PEX-cRainwaterDrinking WaterIn case of use for other than the described applications, contact Viega Service Center to coordinate materials.Operating conditionsDrinking water installations•Maximum operating temperature 70 °C•Maximum operating pressure 1.0 MPaHeating installations•Maximum operating temperature 80 °C•Maximum operating pressure 1.0 MPaMixed installations are allowed regardless of flow direction.NotesDVGW approval applies only to

Produsent
Varenummer
2901902
Model
688431
Ean
4015211688431
