Trykkrør & Beslag - Viega Profipress bend 90° 12 Copper/bright 291488 - 291488
Varenummer: 2903174

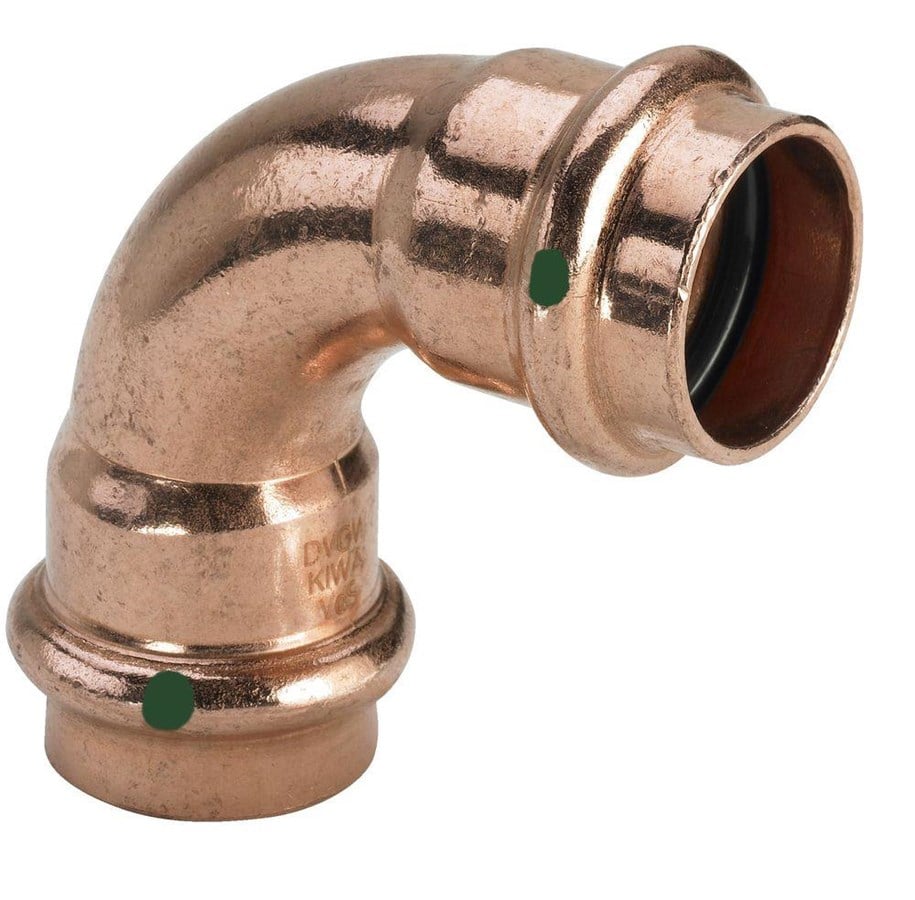

Viega Profipress bend 90° 12 Copper/bright 291488

Press connector system with press connectors made of copper and gunmetal tested in acc. with DVGW worksheet W 534 with DVGW test seal and pipes made of copper in acc. with EN 1057 in acc. with DVGW worksheet GW 392.Suitable for drinking water installations in acc. with DIN 1988.For dimensionally stable concealed and pre-wall installations of manifold and riser pipes in Viega component assembly.Press connectorsAll sizes with SC-Contur – connections, which remain unpressed become visible when the system is filled. The SC-Contur is certified and fulfils the requirements of DVGW worksheet W 534, point 12.14, connectors with forced leakage.During leakage tests with water, Viega guarantees the identification of unpressed connections in the pressure range 0.1 MPa–0.65 MPa, in the case of a dry leakage test with compressed air or noble gases from 22 hPa–0.3 MPa.MarkingGreen dot on the press connectionSealing elementsEPDM, black (ethylene-propylene-dien-monomer rubber), up to 110 °C

Les mer
105,00 kr 84,00 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 2-4 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Emme egnetheden af produktet.Viega Profipress 90° bend 12 Copper/blank, 291488Product description: Press fitting system with copper and red brass press fittings, approved according to DVGW work sheet W 534 with DVGW approval and copper pipes according to DIN EN 1057, in accordance with DVGW work sheet W 392. Suitable for drinking water installations according to DIN 1988. For stable surface-mounted and built-in installations of distribution and riser lines in Viega's complete system.Press fittingsAll sizes have an SC-Contur - fittings that have not been pressed during installation become clearly visible when the system is filled. SC-Contur is certified and meets the requirements of DVGW work sheet W 534, section12.14, guaranteed leak-proof when not pressed.During water tightness tests Viega can detect unpressed fittings in the pressure range from0.1 MPa–0.65 MPa; during dry tightness testing using compressed air or inert gases from22 hPa–0.3 MPa.MarkingGreen dot on press connectionGasketsEPDM (ethylene-propylene-diene rubber), black, up to110 °C; not resistant to hydrocarbon solvents,chlorinated hydrocarbons, turpentine or petrol.Dimensions/materialsStandard sizes: d12 ,15 ,18 ,22 ,28 ,35 ,42 &54 made of copper.XL sizes: d64 made of copper.XL sizes: d76 .1,d88 .9,d108 .0 made of red brass.Press fitting with threaded connection made of red brass:d12 -54 &76 .1-108 .0 .Press fitting with threaded connection madeofcopper:d64 .Applications:Drinking water Heating/radiator connections Rainwater Compressed air, inert gases Cooling water lines Industry Plant constructionSpecial applications with EPDM gasket from the factory:- Stationary sprinkler fire extinguishing systems - with VdS certificate G 4980009 for sizes DN20-DN50 together with copper pipes according to DIN EN 1057 R290 (hard)- Solar thermal systems with flat collectors/vacuum solar collectors- District heating and low-pressure steam systemsIf used for applications other than those described, contact Viega Service Center to determine the suitability of the product.

Produsent
Varenummer
2903174
Model
291488
Ean
4015211291488
