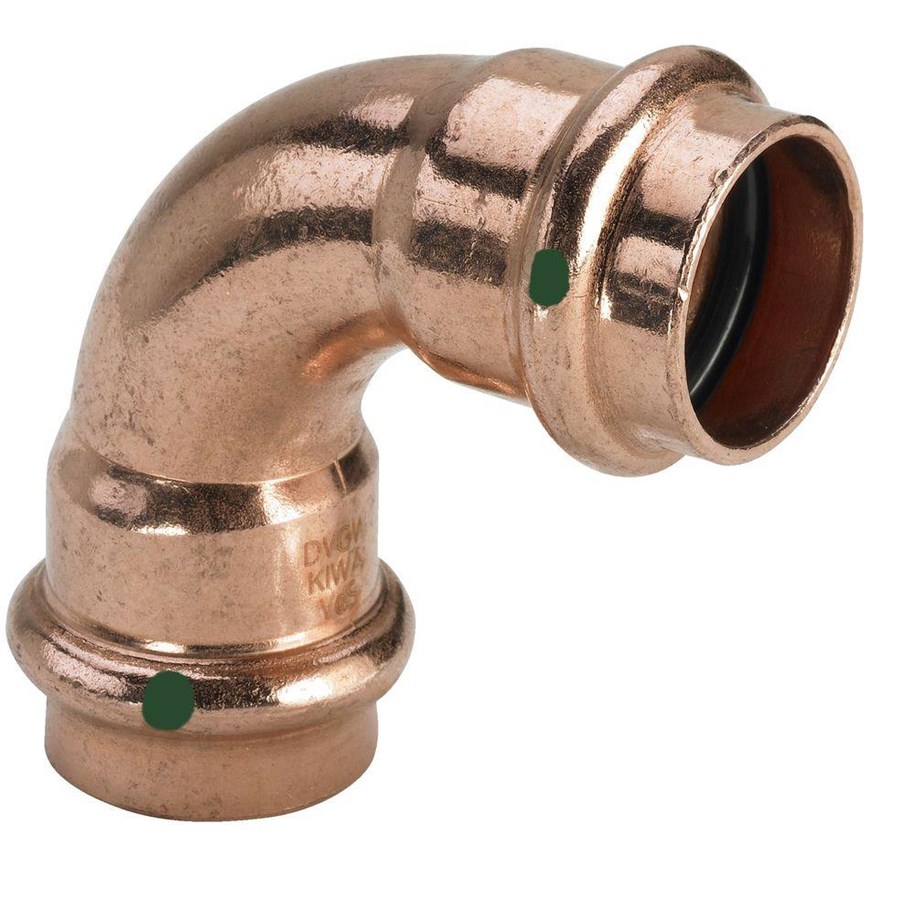

Viega Profipress bend 90° 15 Copper/bright 291501
Press connector system with press connectors made of copper and gunmetal tested in acc. with DVGW worksheet W 534 with DVGW test seal and pipes made of copper in acc. with EN 1057 in acc. with DVGW worksheet GW 392.Suitable for drinking water installations in acc. with DIN 1988.For dimensionally stable concealed and pre-wall installations of manifold and riser pipes in Viega component assembly.Press connectorsAll sizes with SC-Contur – connections, which remain unpressed become visible when the system is filled. The SC-Contur is certified and fulfils the requirements of DVGW worksheet W 534, point 12.14, connectors with forced leakage.During leakage tests with water, Viega guarantees the identification of unpressed connections in the pressure range 0.1 MPa–0.65 MPa, in the case of a dry leakage test with compressed air or noble gases from 22 hPa–0.3 MPa.MarkingGreen dot on the press connectionSealing elementsEPDM, black (ethylene-propylene-dien-monomer rubber), up to 110 °C
151,00 kr
120,80 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 4-7 dager til forsendelse
UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025
Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.
Viega Profipress bend 90° 15 Copper/blank, 291501 Product description: Press fitting system with copper and red brass press fittings, approved according to DVGW working sheet W 534 with DVGW approval and copper pipes according to DIN EN 1057, according to DVGW working sheet W 392. Suitable for drinking water installations according to DIN 1988. For dimensionally stable surface-mounted and built-in installations of distribution and riser pipes in Viega's complete system. Press fittings All sizes are equipped with SC-Contur - fittings that have not been pressed during installation become clearly visible when the system is filled. SC-Contur is certified and meets the requirements of DVGW working sheet W 534, section12.14, guaranteed leaky if not pressed properly.During water tightness tests Viega can detect unpressed fittings in the pressure range from0.1 MPa–0.65 MPa; during dry air or inert gas tightness tests from22 hPa–0.3 MPa.Markings•Green dot on press connectionGasketsEPDM black (ethylene-propylene-diene rubber), up to110 °C, not resistant against hydrocarbon solvents,chlorinated hydrocarbons, turpentine,benzeneDimensions/materialStandard sizes: d12,15 ,18 ,22 ,28 ,35 ,42 ,54 made of copperXL sizes: d64 .0 made of copperXL sizes: d76 .1 ,88 .9 ,108 .0 made of red brassPress fitting with threaded connection made of red brass:d12 -54 ;76 .1 -108 .0Press fitting with threaded connection madeof copper:d64 .0Areasof applicationDrinkingwaterHeating/radiatorconnectionRainwaterCompressedair,inert gasesCoolingwaterlinesIndustryPlantconstructionSpecialapplicationswith EPDM gasket from factory•Stationary sprinkler fire extinguishing systems - with VdS certificate G 4980009 for sizes DN20-DN50 together with copper pipes according to DIN EN 1057 R290 (hard)with FKM gasket (accessory)•Solar heating systems with flat collectors/vacuum solar collectors•District heating supply and low-pressure steam systemsIn case of use for other than the described areas of application, please contact Viega Service Center to clarify
Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
