Trykkrør & Beslag - Viega Profipress bend 90° 22 Copper/bright 291518 - 291518
Varenummer: 2903171

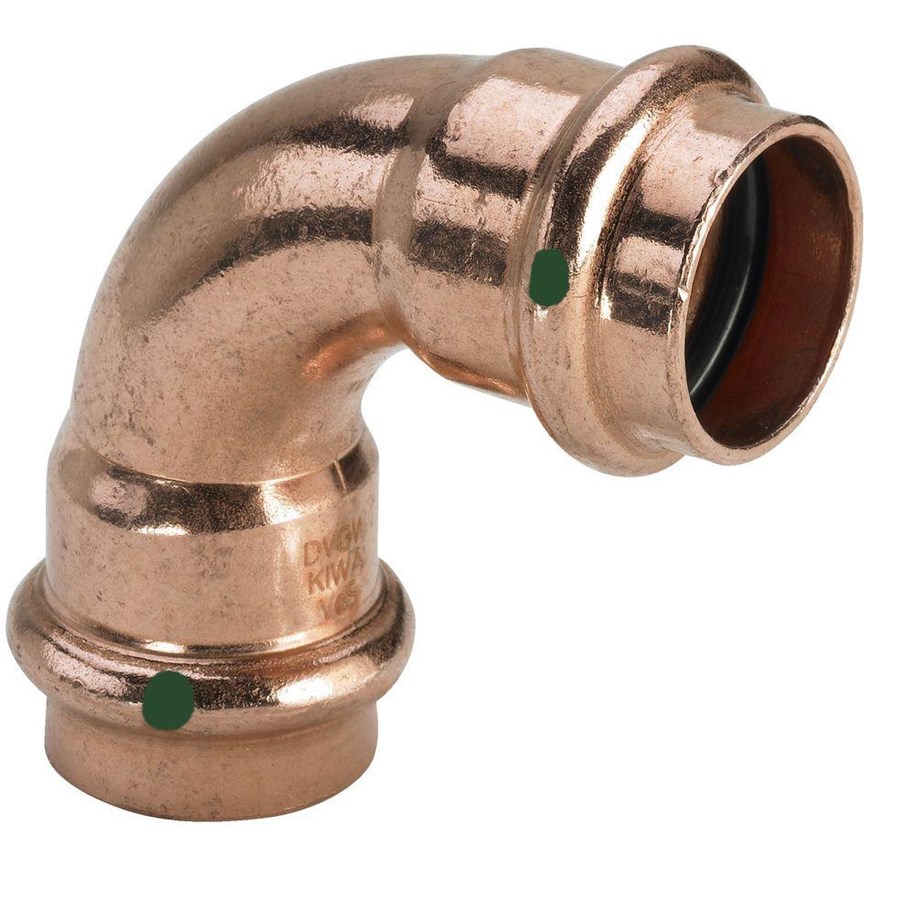

Viega Profipress bend 90° 22 Copper/bright 291518

Press connector system with press connectors made of copper and gunmetal tested in acc. with DVGW worksheet W 534 with DVGW test seal and pipes made of copper in acc. with EN 1057 in acc. with DVGW worksheet GW 392.Suitable for drinking water installations in acc. with DIN 1988.For dimensionally stable concealed and pre-wall installations of manifold and riser pipes in Viega component assembly.Press connectorsAll sizes with SC-Contur – connections, which remain unpressed become visible when the system is filled. The SC-Contur is certified and fulfils the requirements of DVGW worksheet W 534, point 12.14, connectors with forced leakage.During leakage tests with water, Viega guarantees the identification of unpressed connections in the pressure range 0.1 MPa–0.65 MPa, in the case of a dry leakage test with compressed air or noble gases from 22 hPa–0.3 MPa.MarkingGreen dot on the press connectionSealing elementsEPDM, black (ethylene-propylene-dien-monomer rubber), up to 110 °C

Les mer
130,00 kr 104,00 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 3-5 dager til forsendelse

Emme egnetheden af produktet.Viega Profipress 90° bend 22 Copper/Polished, 291518 Product description: Press fitting system with copper and red brass press fittings, approved according to DVGW work sheet W 534 with DVGW approval and copper pipes according to DIN EN 1057, in accordance with DVGW work sheet W 392. Suitable for drinking water installations according to DIN 1988. For stable surface-mounted and built-in installations of distribution and riser lines in Viega's complete system. Press fittings All sizes have an SC-Contur - fittings that have not been pressed during installation become clearly visible when the system is filled. SC-Contur is certified and meets the requirements of DVGW worksheet W534, section12.14, guaranteed leak-proof if not pressed properly.During water tightness tests Viega can detect unpressed fittings in the pressure range from0.1 MPa–0.65 MPa; during dry air or inert gas tightness tests from22 hPa–0.3 MPa.Markings•Green dot on press connectionGasketsEPDM black (ethylene-propylene-diene rubber), up to110 °C, not resistant to hydrocarbon solvents,chlorinated hydrocarbons, turpentine or gasolineDimensions/materialStandard sizes: d12 ,15 ,18 ,22 ,28 ,35 ,42 ,54 made of copperXL sizes: d64 .0 made of copperXL sizes: d76 .1,d88 .9,d108 .0 made of red brassPress fitting with threaded connection made of red brass:d12 -54 ;76 .1 -108 .0Press fitting with threaded connection made of copper:d64 .0ApplicationsDrinking waterHeating/radiator connectionsRainwaterCompressed air,inert gasesCooling water pipelinesIndustryPlant constructionSpecial applicationswith EPDM gasket, from the factory•Stationary sprinkler fire extinguishing systems - with VdS certificate G 4980009 for sizes DN20-DN50 together with copper pipes according to DIN EN 1057 R290 (hard)with FKM gasket (accessory)•Solar heating systems with flat collectors/vacuum solar collectors•District heating and low-pressure steam systemsIn case of use for applications other than those described, contact Viega Service Center to determine the suitability of the product.

Produsent
Varenummer
2903171
Model
291518
Ean
4015211291518
