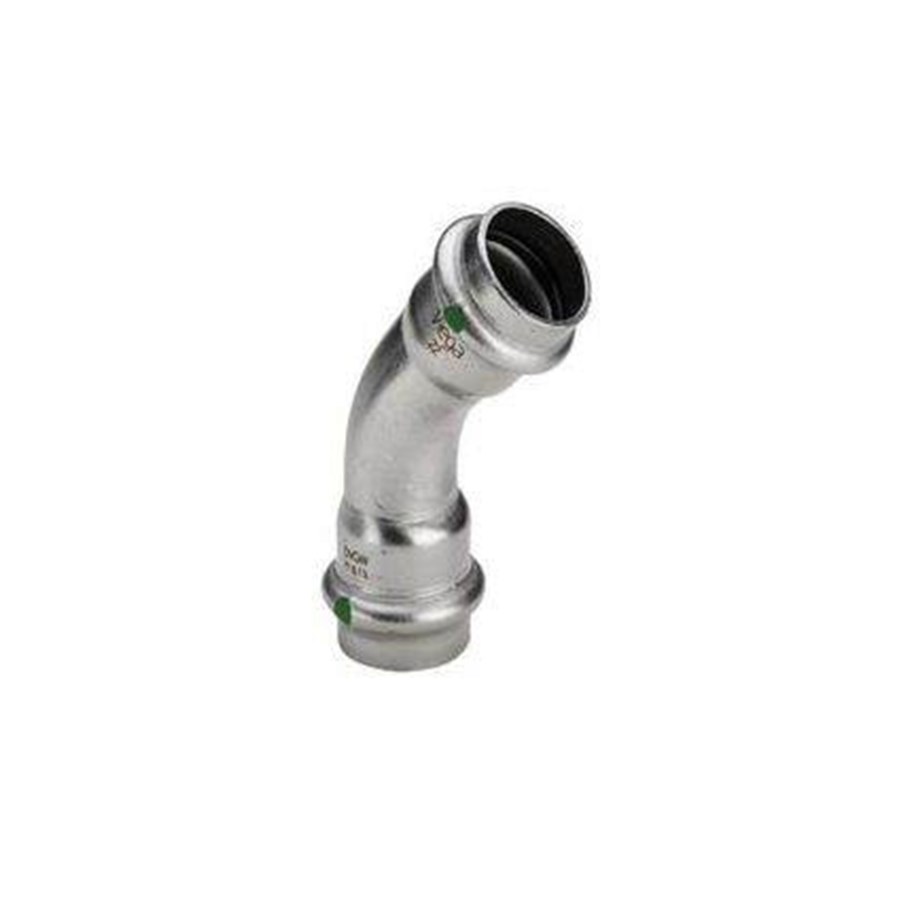

Viega Sanpress Inox bend 45° 22 Stainless steel/bright 435790

Press connector system with press connectors and pipes made of stainless steel material Nos. 1.4401 and 1.4521 in acc. with DIN EN 10088, DIN EN 10312, DVGW worksheet GW 541, system certification for connectors and pipes in acc. with DVGW worksheet W 534, for drinking water installations in acc. with DIN 1988. For dimensionally stable concealed and pre-wall installations of manifold and riser pipes in Viega component assembly.Press connectorsAll sizes with SC-Contur – connections, which remain unpressed become visible when the system is filled. The SC-Contur is certified and fulfils the requirements of DVGW worksheet W 534, point 12.14, connectors with forced leakage.During leakage tests with water, Viega guarantees the identification of unpressed connections in the pressure range 0.1 MPa–0.65 MPa, in the case of a dry leakage test with compressed air or noble gases from 22 hPa–0.3 MPa.MarkingGreen dot on the press connectionSealing elementsEPDM, black (ethylene-propylene-dien-monomer rubber), up to 110 °C, not resistant against hydrocarbon solvent, chlorinated hydrocarbon solvents, turpentine, petrolPipesStainless steel laser-welded and made of corrosion-proof stainless steel•Material-No.1.4401 (AISI 316L) (X5CrNiMo 17-12-2), with 2.3 % molybdenum for increased durability, yellow plugs•Material-No.1.4521 (AISI 444) (X2CrMoTi 18-2), with PRE-value 24.1, green plugsDimensions/MaterialStandard sizes: d 15, 18, 22, 28, 35, 42, 54 made of stainless steelXL sizes: d 64.0, 76.1, 88.9, 108.0 made of stainless steelPress connectors with threaded connection made of stainless steelAreas of applicationDrinking waterHeating/Radiator connectionRainwaterCompressed air systemAgricultureIndustrySpecial applicationsShipbuildingFire extinguisher systemsUse of the system for application areas and media other than those described here must be agreed with Viega Service Center.Operating conditionsDrinking water installations•Drinking water without r
