Trykkrør & Beslag - Viega Sanpress Inox bend 45° 54 Stainless steel/bright 435370 - 435370
Varenummer: 2904299

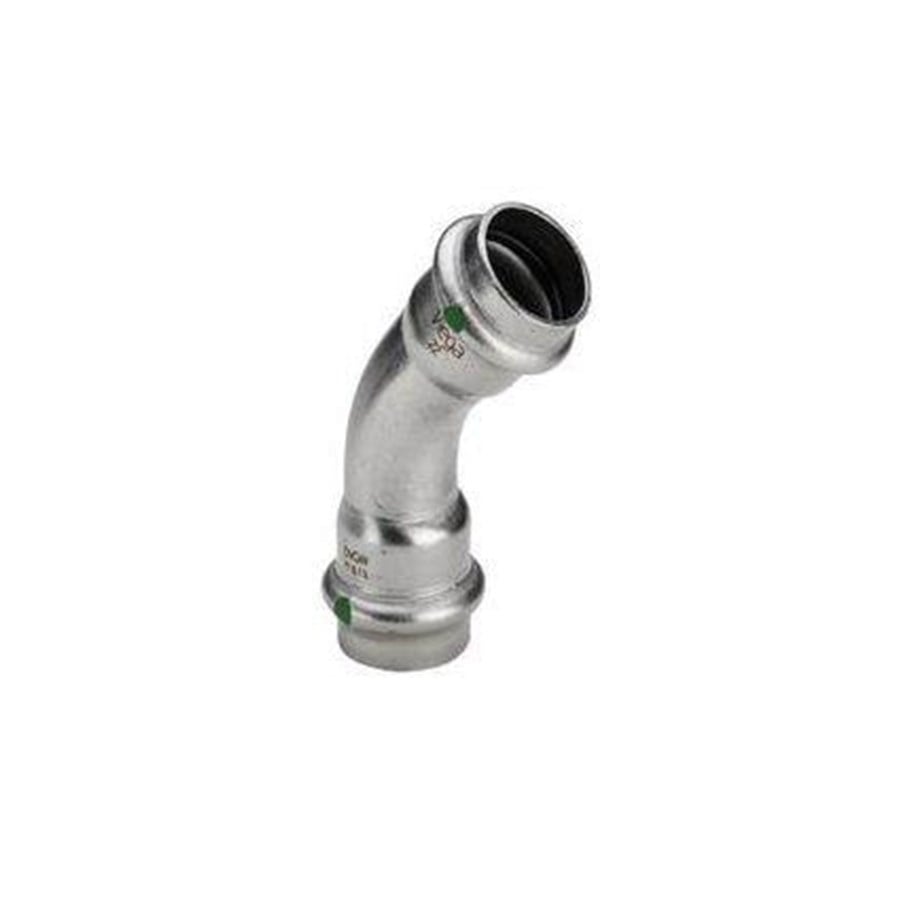

Viega Sanpress Inox bend 45° 54 Stainless steel/bright 435370

Press connector system with press connectors and pipes made of stainless steel material Nos. 1.4401 and 1.4521 in acc. with DIN EN 10088, DIN EN 10312, DVGW worksheet GW 541, system certification for connectors and pipes in acc. with DVGW worksheet W 534, for drinking water installations in acc. with DIN 1988. For dimensionally stable concealed and pre-wall installations of manifold and riser pipes in Viega component assembly.Press connectorsAll sizes with SC-Contur – connections, which remain unpressed become visible when the system is filled. The SC-Contur is certified and fulfils the requirements of DVGW worksheet W 534, point 12.14, connectors with forced leakage.During leakage tests with water, Viega guarantees the identification of unpressed connections in the pressure range 0.1 MPa–0.65 MPa, in the case of a dry leakage test with compressed air or noble gases from 22 hPa–0.3 MPa.MarkingGreen dot on the press connectionSealing elementsEPDM, black (ethylene-propylene-die

Les mer
842,00 kr 673,60 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 2-5 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Viega Sanpress Inox bend 45° 54 Stainless steel/polished, 435370 Product description: Press fitting system with press fittings and pipes made of stainless steel material no. 1.4401 and 1.4521 according to DIN EN 10088, DIN EN 10312, DVGW work sheet GW541, system approval for fittings and pipes according to DVGW work sheet W534 for drinking water installations according to DIN1988. For stable installation of various plumbing installations in Viega's complete system.Press FittingsAll sizes have an SC-Contur - fittings that have not been pressed during installation become clearly visible when the system is filled with liquid. The SC-Contur is certified and meets the requirements of DVGW work sheet W534, point12.14; guaranteed leak-proof when not pressed.During water tightness tests Viega can detect unpressed fittings in the pressure range from0.1 MPa–0.65 MPa; during dry tightness tests using compressed air or inert gases from22 hPa–0.3 MPa.Markings•Green dot on press connectionSealsEPDM black (ethylene-propylene-diene rubber), up to110°C; not resistant against hydrocarbon solvents,chlorinated hydrocarbons, turpentine or gasolinePipesStainless steel laser-welded pipe made of corrosion-resistant stainless steel•Material no.: AISI316L (X5CrNiMo17-12-2) with2 .3% molybdenum for better durability; yellow plugs•Material no.: AISI444 (X2CrMoTi18-2)with PRE value24 .1 ; green plugsDimensions/materialStandard sizes: d15 ,18 ,22 ,28 ,35 ,42 ,54made of stainless steelXL sizes: d64 .0 ;76 .1 ;88 .9 ;108 .0made of stainless steelPress fitting with threaded connection made of stainless steelApplicationsDrinking waterHeating systemsRainwaterCompressed air systemsAgricultureIndustrySpecial applicationsShipbuildingFire extinguishing systemsIf used for other than the described applications, contact Viega Service Center to coordinate materials.Operating conditionsDrinking water installations•Drinking water without restrictions according to TrinkwV•Operating temperature T = 85°C•Maximum operating pressure 1.6

Produsent
Varenummer
2904299
Model
435370
Ean
4015211435370

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
