Trykkrør & Beslag - Viega Sanpress XL bend 90° 76.1 gunmetal/glossy 350697 - 350697
Varenummer: 2904571

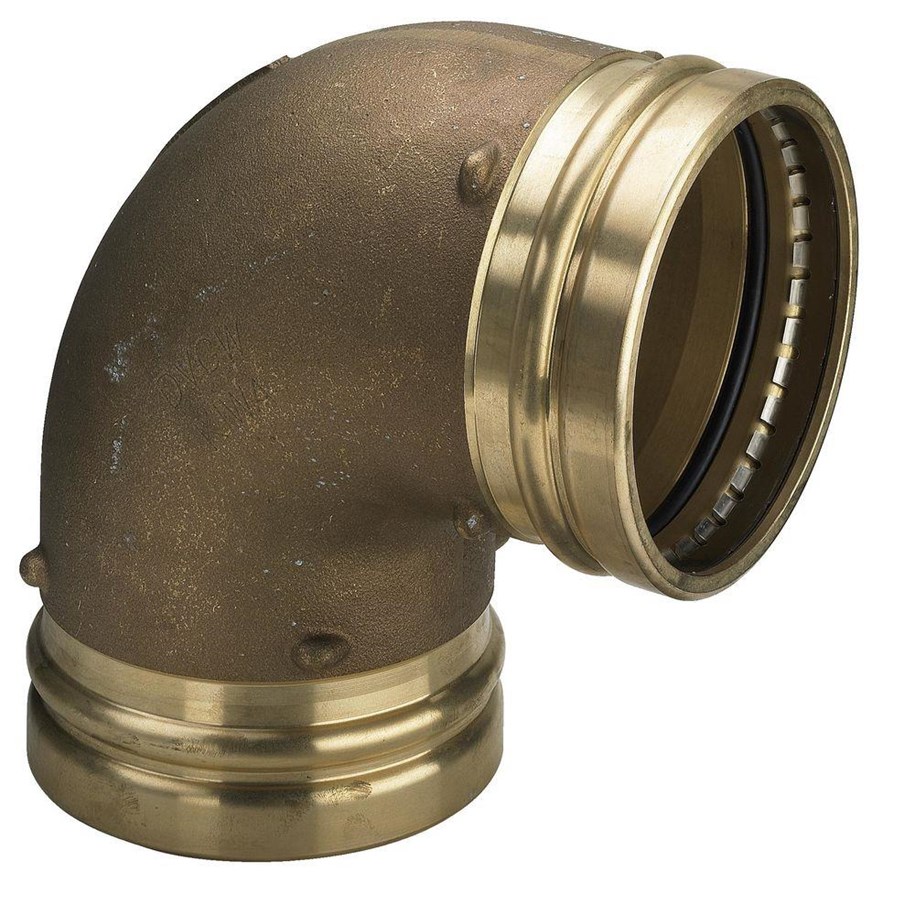

Viega Sanpress XL bend 90° 76.1 gunmetal/glossy 350697

Press connector system with press connectors made of copper and gunmetal tested in acc. with DVGW worksheet W 534 with DVGW test seal and pipes made of copper in acc. with EN 1057 in acc. with DVGW worksheet GW 392.Suitable for drinking water installations in acc. with DIN 1988.For dimensionally stable concealed and pre-wall installations of manifold and riser pipes in Viega component assembly.Press connectorsAll sizes with SC-Contur – connections, which remain unpressed become visible when the system is filled. The SC-Contur is certified and fulfils the requirements of DVGW worksheet W 534, point 12.14, connectors with forced leakage.During leakage tests with water, Viega guarantees the identification of unpressed connections in the pressure range 0.1 MPa–0.65 MPa, in the case of a dry leakage test with compressed air or noble gases from 22 hPa–0.3 MPa.MarkingGreen dot on the press connectionSealing elementsEPDM, black (ethylene-propylene-dien-monomer rubber), up to 110 °C

Les mer
3 140,00 kr 2 512,00 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-5 dager til forsendelse

Viega Sanpress XL bend 90° 76.1 Red brass/blank, 350697 Product description: Press fitting system with press fittings made of copper and red brass, approved according to DVGW work sheet W 534 with DVGW approval and copper pipes according to DIN EN 1057, according to DVGW work sheet W 392. Suitable for drinking water installations according to DIN 1988. For stable surface-mounted and built-in installations of distribution and riser lines in Viega's complete system. Press fittings All sizes have an SC-Contur - fittings that have not been pressed during installation become clearly visible when the system is filled. SC-Contur is certified and meets the requirements of DVGW work sheet W 534, section12.14, guaranteed leak-proof when not pressed properly.During water tightness tests Viega can detect unpressed fittings in the pressure range from0.1 MPa–0.65 MPa; during dry tightness tests with compressed air or inert gases from22 hPa–0 .3 MPa.Markings•Green dot on press connectionGasketsEPDM black (ethylene-propylene-diene rubber), up to110 °C , not resistant against hydrocarbon solvents,chlorinated hydrocarbons , turpentine , gasolineDimensions/materialStandard sizes: d12 ,15 ,18 ,22 ,28 ,35,42,and54 made of copperXL-sizes: d64 .0 made of copperXL-sizes: d76 .1,88 .9,and108 .0 made of red brassPress fitting with threaded connection for red brass:d12 -54 ;76 .1-108 .0Press fitting with threaded connection for copper:d64 .0ApplicationsDrinking waterHeating/radiator connectionsRainwaterCompressed air,inert gasesCooling water pipelinesIndustryPlant constructionSpecial applicationswith EPDM gasket from the factory•Stationary sprinkler fire extinguishing systems - with VdS certificate G 4980009 for sizes DN20-DN50 together with copper pipes according to DIN EN 1057 R290 (hard)with FKM gasket (accessory)•Solar heating systems with flat collectors/vacuum solar collectors•District heating supply and low-pressure steam systemsIn case of use for other than the described applications, contact Viega Service Center.

Produsent
Varenummer
2904571
Model
350697
Ean
4015211350697
