Trykkrør & Beslag - Viega Sanpress XL bend 90° 88.9 gunmetal/glossy 350680 - 350680
Varenummer: 2904570

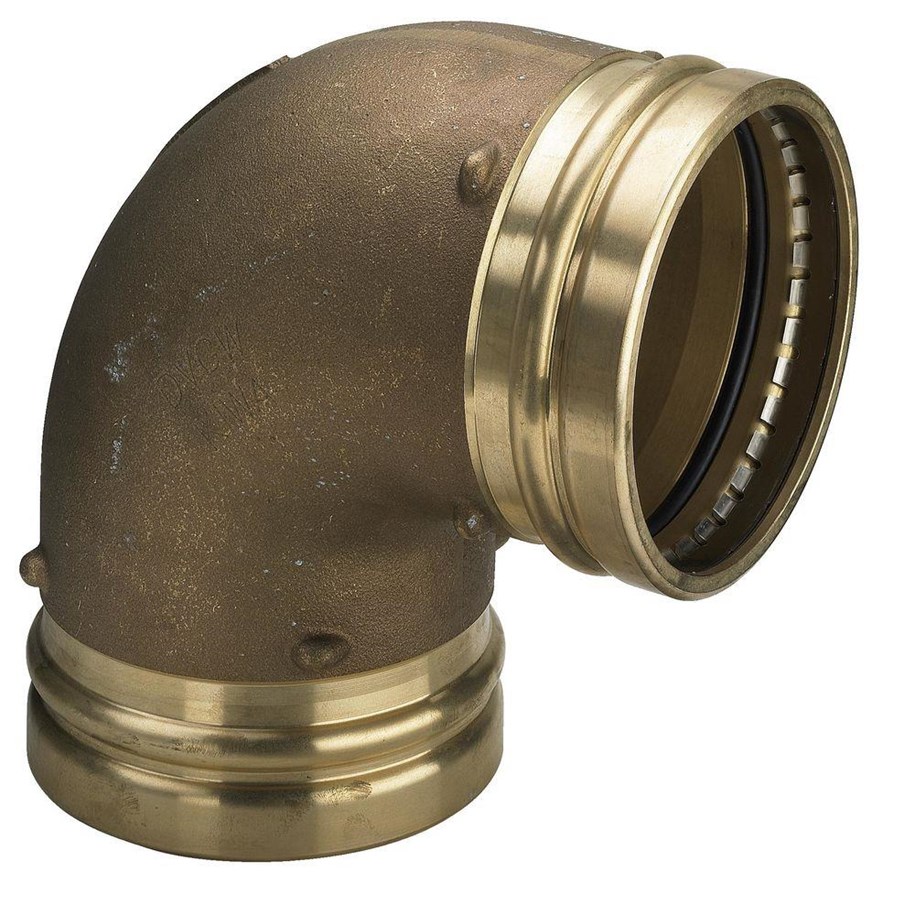

Viega Sanpress XL bend 90° 88.9 gunmetal/glossy 350680

Press connector system with press connectors made of copper and gunmetal tested in acc. with DVGW worksheet W 534 with DVGW test seal and pipes made of copper in acc. with EN 1057 in acc. with DVGW worksheet GW 392.Suitable for drinking water installations in acc. with DIN 1988.For dimensionally stable concealed and pre-wall installations of manifold and riser pipes in Viega component assembly.Press connectorsAll sizes with SC-Contur – connections, which remain unpressed become visible when the system is filled. The SC-Contur is certified and fulfils the requirements of DVGW worksheet W 534, point 12.14, connectors with forced leakage.During leakage tests with water, Viega guarantees the identification of unpressed connections in the pressure range 0.1 MPa–0.65 MPa, in the case of a dry leakage test with compressed air or noble gases from 22 hPa–0.3 MPa.MarkingGreen dot on the press connectionSealing elementsEPDM, black (ethylene-propylene-dien-monomer rubber), up to 110 °C

Les mer
3 718,00 kr 2 974,40 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, leveringstiden kan ikke opplyses.
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Viega Sanpress XL bend 90° 88.9 Red brass/blank, 350680Product description: Press fitting system with press fittings made of copper and red brass, approved according to DVGW work sheet W 534 with DVGW approval and pipes made of copper according to DIN EN 1057, in accordance with DVGW work sheet W 392. Suitable for drinking water installations according to DIN 1988. For stable surface-mounted and built-in installations of distribution and riser lines in Viega's complete system.Press fittingsAll sizes have an SC-Contur - fittings that have not been pressed during installation become clearly visible when the system is filled. SC-Contur is certified and meets the requirements of DVGW work sheet W 534, section12.14, guaranteed leak-proof when not pressed.During water tightness tests Viega can detect unpressed fittings in the pressure range from0.1 MPa–0.65 MPa; during dry tightness testing using compressed air or inert gases from22 hPa–0.3 MPa.Marking•Green dot on press connectionGasketsEPDM black (ethylene-propylene-diene rubber), up to110 °C, not resistant to hydrocarbon solvents,chlorinated hydrocarbons, turpentine or petrol.Dimensions/materialsStandard sizes: d12 ,15 ,18 ,22 ,28 ,35 ,42and54madeofcopper.XL sizes: d64madeofcopper.XL sizes: d76 .1,d88 .9and108 .0madeofredbrass.Press fitting with threaded connection made of red brass:d12-54and76 .1-108 .0.Press fittingwith threaded connection made of copper:d64 .Applications:Drinking water Heating/radiator connections Rainwater Compressed air, inert gases Cooling water lines Industry Plant constructionSpecial applications with EPDM gasket from the factory:•Stationary sprinkler fire extinguishing systems - with VdS certificate G 4980009 for sizes DN20-DN50 together with copper pipes according to DIN EN 1057 R290 (hard)with FKM gasket (accessory)•Solar heating systems with flat collectors/vacuum solar collectors•District heating and low-pressure steam systemsIn case of use for other than the described applications, please contact Viega Service Center.

Produsent
Varenummer
2904570
Model
350680
Ean
4015211350680
