Trykkrør & Beslag - Viega Sanpress bend 45° 28 gunmetal/glossy 113346 - 113346
Varenummer: 2904554

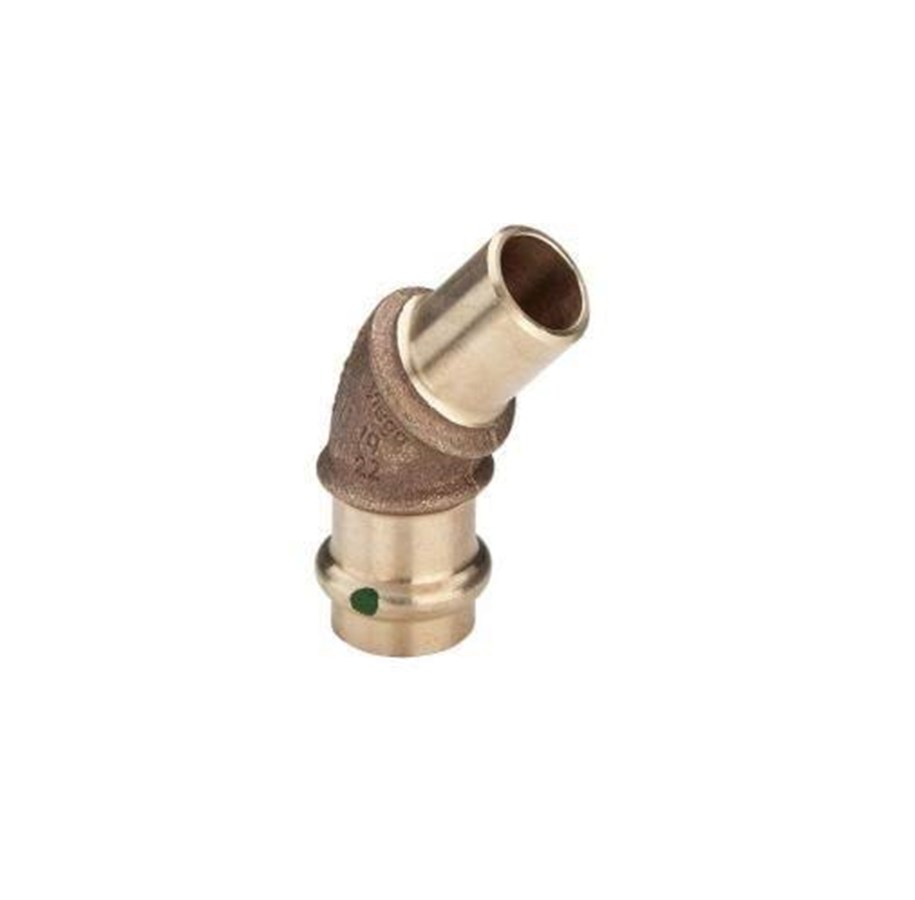

Viega Sanpress bend 45° 28 gunmetal/glossy 113346

Press connector system with press connectors made of gunmetal, pipes made of stainless steel material Nos. 1.4401 and 1.4521 in acc. with DINEN 10088, DIN EN 10312, DVGW worksheet GW 541, system certification for connectors and pipes in acc. with DVGW worksheet W 534, for drinking water installations in acc. with DIN 1988. For dimensionally stable concealed and pre-wall installations of manifold and riser pipes in Viega component assembly.Press connectorsAll sizes with SC-Contur – connections, which remain unpressed become visible when the system is filled. The SC-Contur is certified and fulfils the requirements of DVGW worksheet W 534, point 12.14, connectors with forced leakage.During leakage tests with water, Viega guarantees the identification of unpressed connections in the pressure range 0.1 MPa–0.65 MPa, in the case of a dry leakage test with compressed air or noble gases from 22 hPa–0.3 MPa.MarkingGreen dot on the press connectionSealing elementsEPDM, black (ethylene

Les mer
388,00 kr 310,40 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 2-5 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Viega Sanpress bend 45° 28 Red brass/blank, 113346 Product description: Press fitting system with press fittings made of red brass, pipes made of stainless steel material no. 1.4401 and 1.4521 according to DIN EN 10088, DIN EN 10312, DVGW work sheet GW541, system approval for fittings and pipes according to DVGW work sheet W534 for drinking water installations according to DIN1988. For stable installation of various plumbing installations in Viega's overall system.Press fittingsAll sizes have an SC-Contur - fittings that have not been pressed during installation become clearly visible when the system is filled. The SC-Contur is certified and meets the requirements of DVGW work sheet W534, section12.14; guaranteed leak-proof if not pressed.During water tightness tests Viega can detect unpressed fittings in the pressure range from0.1 MPa–0.65 MPa; during dry tightness tests with compressed air or inert gases from22 hPa–0.3 MPa.Markings•Green dot on press connectionGasketsEPDM black (ethylene-propylene-diene rubber), up to110°C; not resistant to hydrocarbon solvents,chlorinated hydrocarbons, turpentine or gasolinePipesStainless steel pipes laser-welded and made of corrosion-resistant stainless steel•Material no.:1 .4401 (AISI316L) (X5CrNiMo17-12-2), with2 .3% molybdenum for better durability; yellow plugs•Material no.:l .452l(AISI444) (X2CrMoTi18-2), PRE value24.l ; green plugsDimensions/materialStandard sizes: d12 ,15 ,18 ,22 ,28 ,35 ,42and54madeofredbrassXL sizes: d76.1,88.9and108.0madeofredbrassPress fitting with threaded connection of red brassApplicationsDrinking waterRainwaterCompressed air systemsAgricultureIndustrySpecial applicationsShipbuildingIn case of use for other than the described applications, contact Viega Service Center to coordinate materials.Operation conditionsDrinking water installations•Drinking water without restrictions according to TrinkwV•Operating temperature max. 85°C•Operating pressure max.l .6 MPa

Produsent
Varenummer
2904554
Model
113346
Ean
4015211113346
