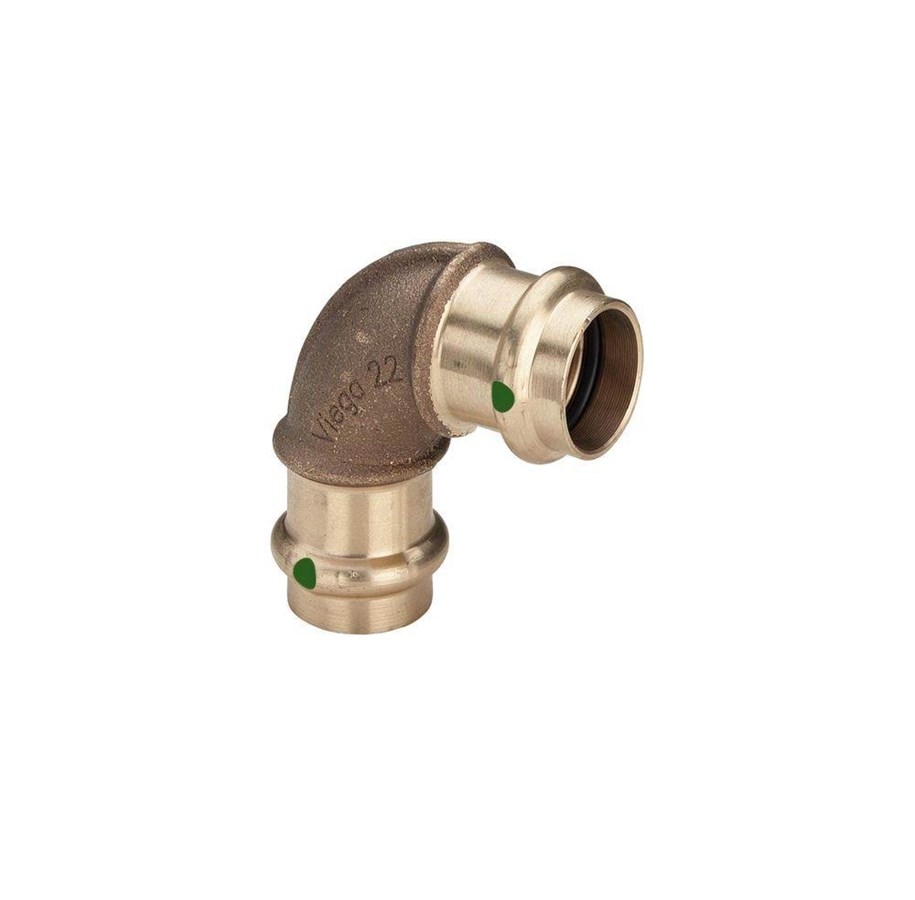

Viega Sanpress bend 90° 42 gunmetal/glossy 119560
Press connector system with press connectors made of gunmetal, pipes made of stainless steel material Nos. 1.4401 and 1.4521 in acc. with DINEN 10088, DIN EN 10312, DVGW worksheet GW 541, system certification for connectors and pipes in acc. with DVGW worksheet W 534, for drinking water installations in acc. with DIN 1988. For dimensionally stable concealed and pre-wall installations of manifold and riser pipes in Viega component assembly.Press connectorsAll sizes with SC-Contur – connections, which remain unpressed become visible when the system is filled. The SC-Contur is certified and fulfils the requirements of DVGW worksheet W 534, point 12.14, connectors with forced leakage.During leakage tests with water, Viega guarantees the identification of unpressed connections in the pressure range 0.1 MPa–0.65 MPa, in the case of a dry leakage test with compressed air or noble gases from 22 hPa–0.3 MPa.MarkingGreen dot on the press connectionSealing elementsEPDM, black (ethylene
806,00 kr
644,80 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 4-7 dager til forsendelse
UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025
Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.
. 85°C•Driftstryk max. 1.6 MPaViega Sanpress bend 90° 42 Red Brass/Polished, 119560Product description: Press fitting system with press fittings made of red brass, pipes made of stainless steel material no.1.4401 and 1.4521 according to DIN EN10088, DIN EN10312, DVGW work sheet GW541, system approval for fittings and pipes according to DVGW work sheet W534 for drinking water installations according to DIN1988.For a stable installation of various plumbing installations in Viega's complete system.Press fittings: All sizes have an SC-Contur - fittings that have not been pressed during installation become clearly visible when the system is filled with liquid. The SC-Contur is certified and meets the requirements of DVGW work sheet W534 point12.14 guaranteed leak-proof when not pressed.During pressure testing with water Viega can detect unpressed fittings in the pressure range from0.1 MPa–0 .65MPa; during dry pressure testing with compressed air or inert gases from22 hPa–0 .3MPa.Marking:•Green dot on press connectionGaskets:EPDM black (ethylene-propylene-diene rubber), up to110°C not resistant against hydrocarbon solvents,chlorinated hydrocarbons, turpentine,benzene.Pipes:Stainless steel laser welded and corrosion-resistant stainless steel.•Material No.: 14401 (AISI316L) (X5CrNiMo17-12-2),with2 .3% molybdenum for better durability,yellow plugs.•Material No.:14521(AISI444)(X2CrMoTi18-2),with PRE value24 .1 ,green plugs.Dimensions/Materials:Standard sizes: d12, 15, 18, 22,28 ,35 ,42 ,54 of red brass.XL sizes: d76.1,88.9 ,108 .0 of red brass.Press fitting with threaded connection of red brass.Applications:Drinking waterRainwaterCompressed air systemsAgricultureIndustry Special applications ShipbuildingIf used for other than the described applications please contact Viega Service Center to coordinate materials.Operating conditions:Drinking water installations:•Drinking water without restrictions according to TrinkwV.•Maximum operating temperature85°C.•Maximum operating pressure1.6 MPa.Drinking water installations:•Maximum operating temperature85°C.•Maximum operating pressure1.6 MPa.
Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
